Three models cover almost every swing gate in South Africa: the Centurion D5 Evo for standard driveway gates, the D10 for heavier or busier gates, and the Smart Kit for buyers who want a ready-to-install package without sourcing accessories separately.

Get the choice wrong, and it shows within a year: a motor straining under a gate weight it was never built for, or money spent on load capacity a light gate will never use. This guide sets out the specifications behind each Centurion gate motor so you can match your gate to the right one.

Why the Centurion Range Is the Default Choice for South African Gates

Centurion is one of South Africa's most established gate motor brands, built for local conditions: dusty driveways, load shedding, and gates ranging from a light pedestrian entrance to a multi-tonne estate barrier.

The range covers three situations: the D5 Evo for most homes, the D10 for heavier leaves and higher traffic, and the Smart Kit, which takes the D5 Evo platform and pre-packages it with the accessories DIY buyers usually want anyway.

Centurion D5 Evo: The Standard Choice for Most Driveway Gates

The D5 Evo is Centurion's standard swing gate motor and the model most South African homeowners buy. It's a 24V DC motor built to open and close a single gate leaf smoothly, with battery backup included as standard, which matters given how often load shedding cuts mains power.

It's rated for gate leaves up to around 4m in length and roughly 600kg per leaf, covering a typical brick, steel or aluminium driveway gate. It suits a moderate duty cycle, frequent enough for dozens of daily opens, but not the continuous cycling of a commercial entrance. It ships with standard remote control pairing and takes Centurion's usual keypad, intercom and access control add-ons later.

This suits a home where the gate is opened and closed through the day by residents and occasional visitors, not a stream of traffic. If your gate weight sits comfortably under 600kg and your leaf is 4m or shorter, there's little reason to pay more for the D10's extra load capacity.

Centurion D10: Built for Heavier, Busier Gates

The D10 motor is built for what the D5 Evo can't sustain: heavier gate leaves (the main moving panel or swinging section of a gate that opens and closes), longer spans, and higher traffic. Its gearbox and motor assembly are more robust, holding up to a higher duty cycle without overheating, which is what estates and shared driveways need from a swing gate motor.

The D10 extends load capacity to roughly 1,000kg per leaf and supports longer gates, up to around 8m depending on construction and wind loading. Its duty cycle rating is meaningfully higher, suited to continuous daily use. For leaves heavier still, the D10 Turbo offers higher output for oversized or reinforced gates.

Choose the D10 if your gate is genuinely heavy, or opens and closes far more often than a typical household gate: a shared access road, a small block of units, or a property with regular deliveries and staff traffic. The extra cost buys durability under load, not different smart features.

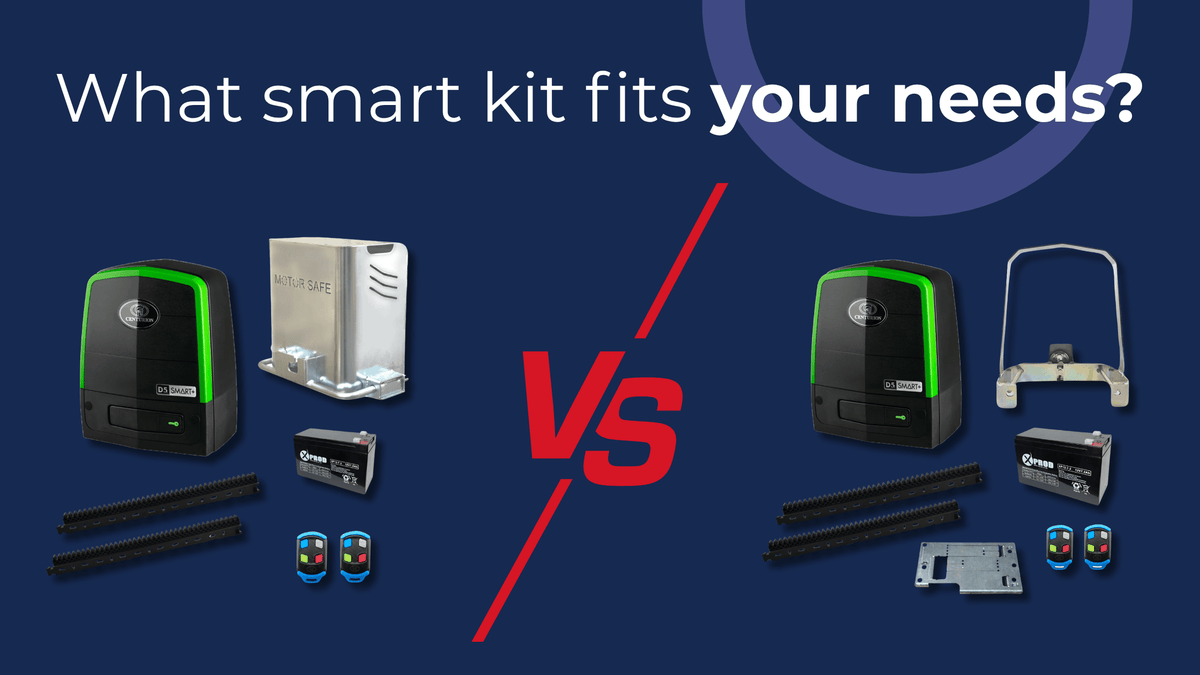

Centurion Smart Kit: An All-In-One Automation Package

The Smart Kit solves a different problem: buyers who want gate automation without the work of matching remotes, a keypad, or an app control module to the motor they choose. Built on the D5 Evo platform, this gate motor kit packages the motor with pre-matched accessories as one coherent unit.

A typical Smart Kit includes the D5 Evo motor unit, mounting hardware, a gate motor battery for backup power, remote controls, and a keypad or app control module depending on configuration. Because everything is matched by Centurion rather than assembled from separate SKUs, there's no risk of a remote or app module that won't pair: fewer decisions, one warranty covering the bundle.

The Smart Kit suits DIY buyers and first-time installers who want a straightforward, single-box setup without researching accessory compatibility themselves. It carries the same weight and length ceiling as the D5 Evo, so it isn't right for a heavy or high-traffic gate.

D5 Evo vs D10 vs Smart Kit: Side-by-Side Comparison



In short: a normal leaf with self-sourced accessories points to the D5 Evo. A heavy, long, or constantly used gate points to the D10. Wanting smart features out of the box points to the Smart Kit, at the D5 Evo's weight ceiling.

How to Choose the Right Centurion Gate Motor for Your Gate

The buying decision comes down to three questions about your gate rather than the motor itself.

Start by measuring your gate's weight and length rather than estimating it. Weigh a similar section if you can, or calculate it from the material (steel, aluminium, timber infill) and the gate's dimensions, then check that figure against each motor's rated load capacity with some margin.

Measure the leaf length too, since a long, light leaf can strain a motor more than a shorter, heavier one due to leverage.

Next, match the motor to your traffic and duty cycle. Count roughly how many times the gate opens and closes on a typical day. A household gate used a few dozen times a day sits within the D5 Evo's duty cycle. A gate serving multiple households or staff traffic all day is working at a higher duty cycle, often a bigger factor than gate weight alone.

Finally, decide how much smart control you actually need. Remote control is standard across the range. The real question is whether you want a keypad for access control, app control from your phone, or both from day one. If yes, the Smart Kit removes the guesswork. If you're happy adding those later, the D5 Evo or D10 alone works just as well.

Warranty, Support and Getting Your Motor Installed

Every Centurion gate motor sold through an authorised reseller carries the manufacturer's warranty, plus local technical support for sizing, wiring and troubleshooting. Grey-market or parallel-imported units frequently don't qualify for warranty support: the real cost of buying on price alone.

Installation is straightforward for a competent DIY installer on a standard D5 Evo or Smart Kit, provided the gate is level and within its rated weight and length. Heavier D10 installations, or gates with unusual hinging or wind exposure, are worth having an installer check first, since a motor can't compensate for a gate already fighting its hinges.

Common Questions About Centurion Gate Motors

What's the actual difference between the D5 Evo and D10?

Load capacity and duty cycle. The D5 Evo handles gates up to around 600kg and 4m for normal residential traffic. The D10 handles up to around 1,000kg and 8m for a higher duty cycle, such as estates or shared driveways.

Is the Smart Kit strong enough for a heavy gate?

No. It's built on the D5 Evo platform, so it carries the same roughly 600kg and 4m ceiling. Choose the D10 for a heavier or longer leaf.

How long will a gate motor run on a backup battery during a power cut?

It depends on the battery's amp-hour rating and cycling frequency, but a properly sized 12V battery is intended to cover a typical load-shedding outage of a few hours under normal use.

Can I add app control or a keypad later, or do I need the Smart Kit?

Yes, either can be added to a standalone D5 Evo or D10 at any point. The Smart Kit just saves you from matching compatible accessories yourself.

How do I know my gate's actual weight before choosing a motor?

Weigh a comparable gate section where possible, or estimate it from the frame material, infill, and dimensions using standard weight tables, adding a safety margin rather than buying to the exact limit.

Final Thoughts

If your gate is a standard residential leaf under 600kg, the Centurion D5 Evo is the well-proven starting point. If it's heavier or in constant use on a shared driveway or small estate, move up to the D10 rather than risk premature wear. If you want remotes, keypad, and app control already matched in one box, the Smart Kit gets your gate automated in one purchase.
