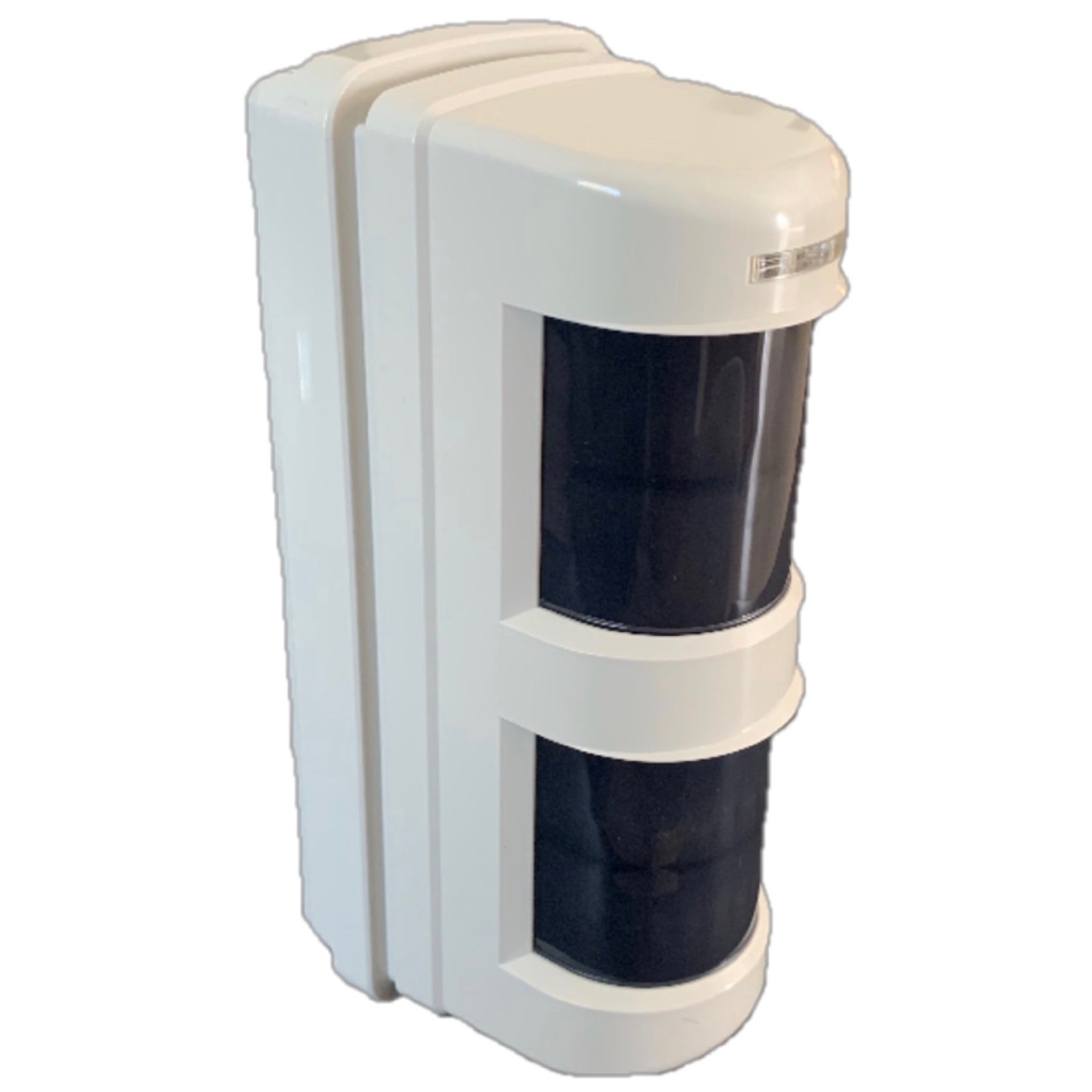

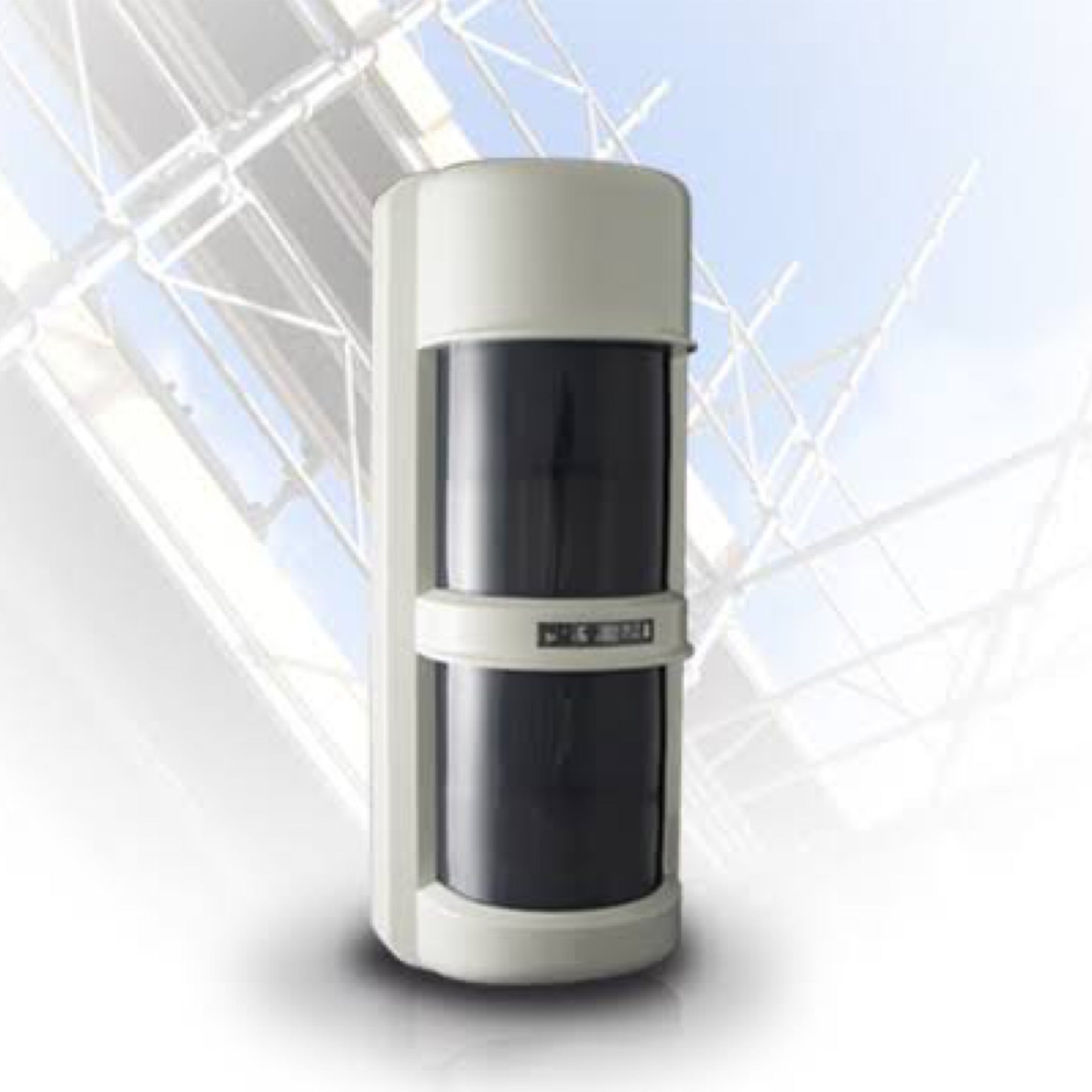

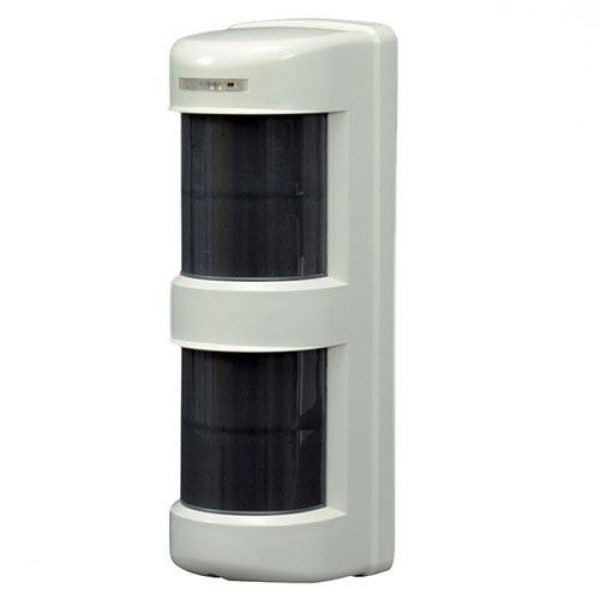

Takex Wireless Dual-Zone TX-114FR: Up To 12m x 180 Degrees

TX-114 SERIES

With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, TX-114 Series detectors are compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas.

DETECTION AREA

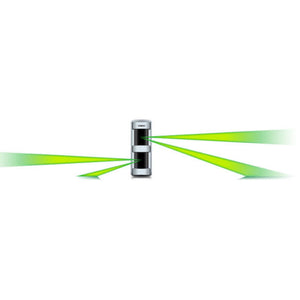

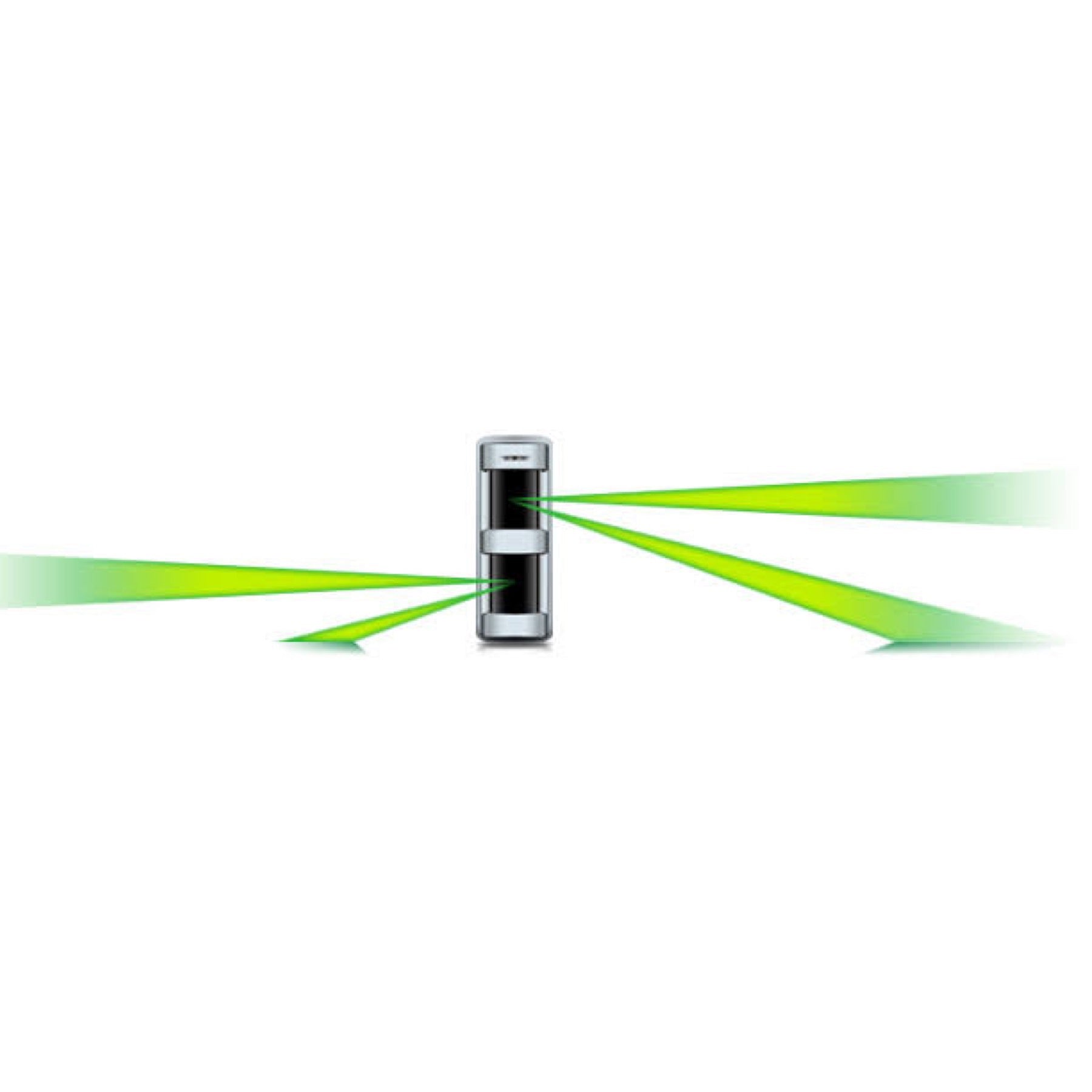

Detection zone of this unit consists of a horizontal zone and downward zone. Alarm signal is issued only when both detection zones detect objects. Detection distance can be set by adjusting the angle of downward zone.

TX-114FR is equipped with 2sets of sensor on the upper and lower side, making it possible to select AND mode or OR mode.
