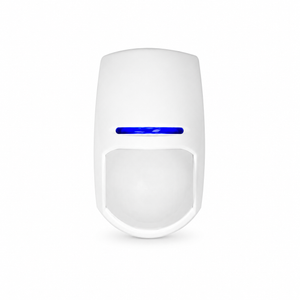

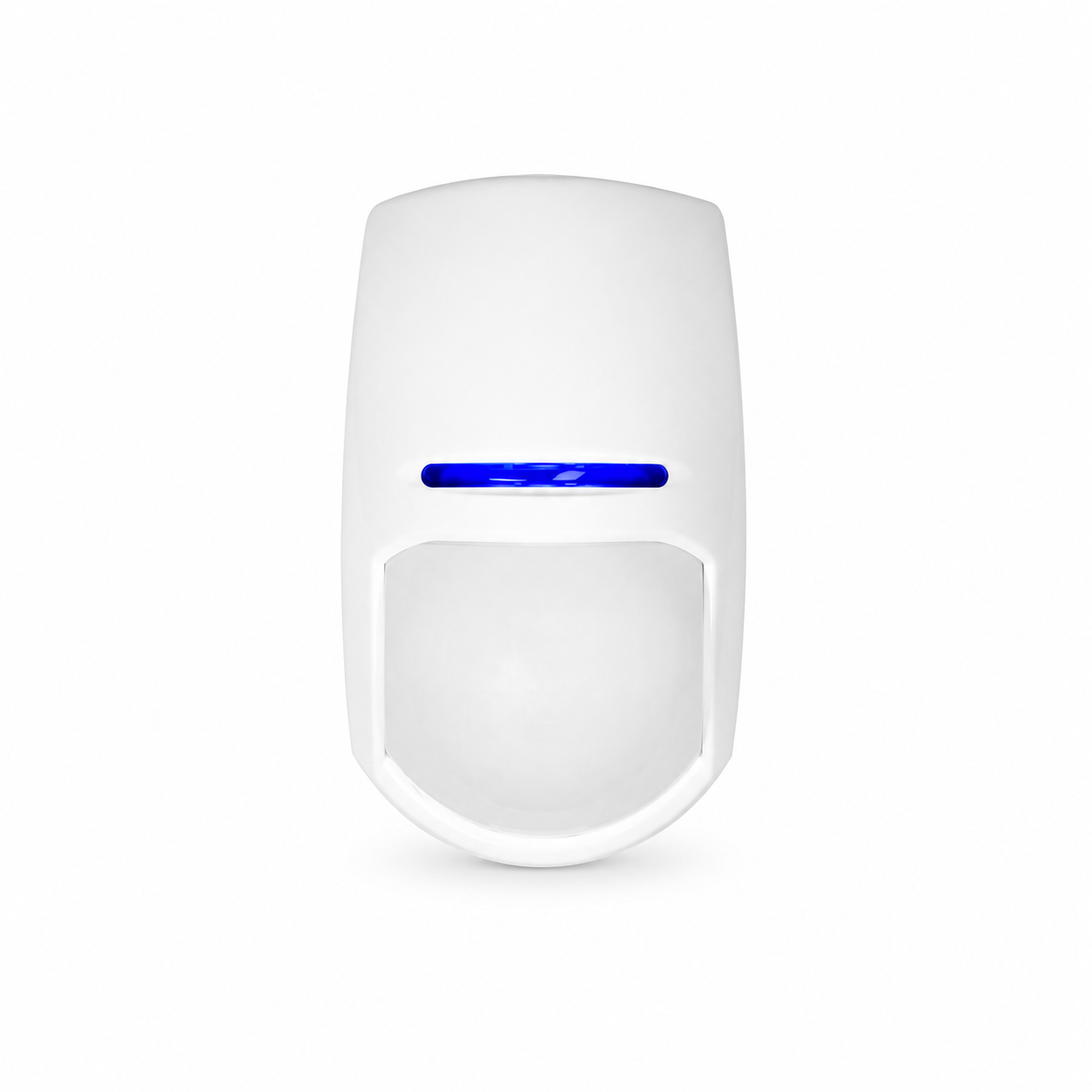

Pyronix KX18DC Digital Curtain PIR Detector
The Pyronix KX18DC is a professional wired indoor PIR curtain detector designed to provide narrow, targeted intrusion detection for corridors, windows, doorways, shopfronts, display areas, galleries, offices, and other areas where a standard wide-angle detector is not ideal. With its curtain-style detection pattern, the KX18DC creates a focused protective beam across a specific area, helping secure vulnerable entry points without unnecessarily covering the entire room.
Using a dual-element pyro-electric PIR sensor, the detector monitors infrared energy changes within the protected area and triggers the alarm panel when movement is detected. Its 20° curtain lens provides precise detection coverage, making it especially useful for protecting long, narrow spaces or creating a security “veil” across windows, doors, passages, or display zones.
The KX18DC offers detection coverage of up to 18m, with a 30m long-range lens option for extended applications. It also includes creep-zone protection to help detect movement directly below the detector, improving security in close-range areas.
For improved reliability, the detector uses Pyronix Blue Wave Technology, which combines advanced signal processing with digital temperature compensation, automatic sensitivity adjustment, and Independent Floating Thresholds. These features help maintain stable performance and reduce false alarms caused by environmental changes.

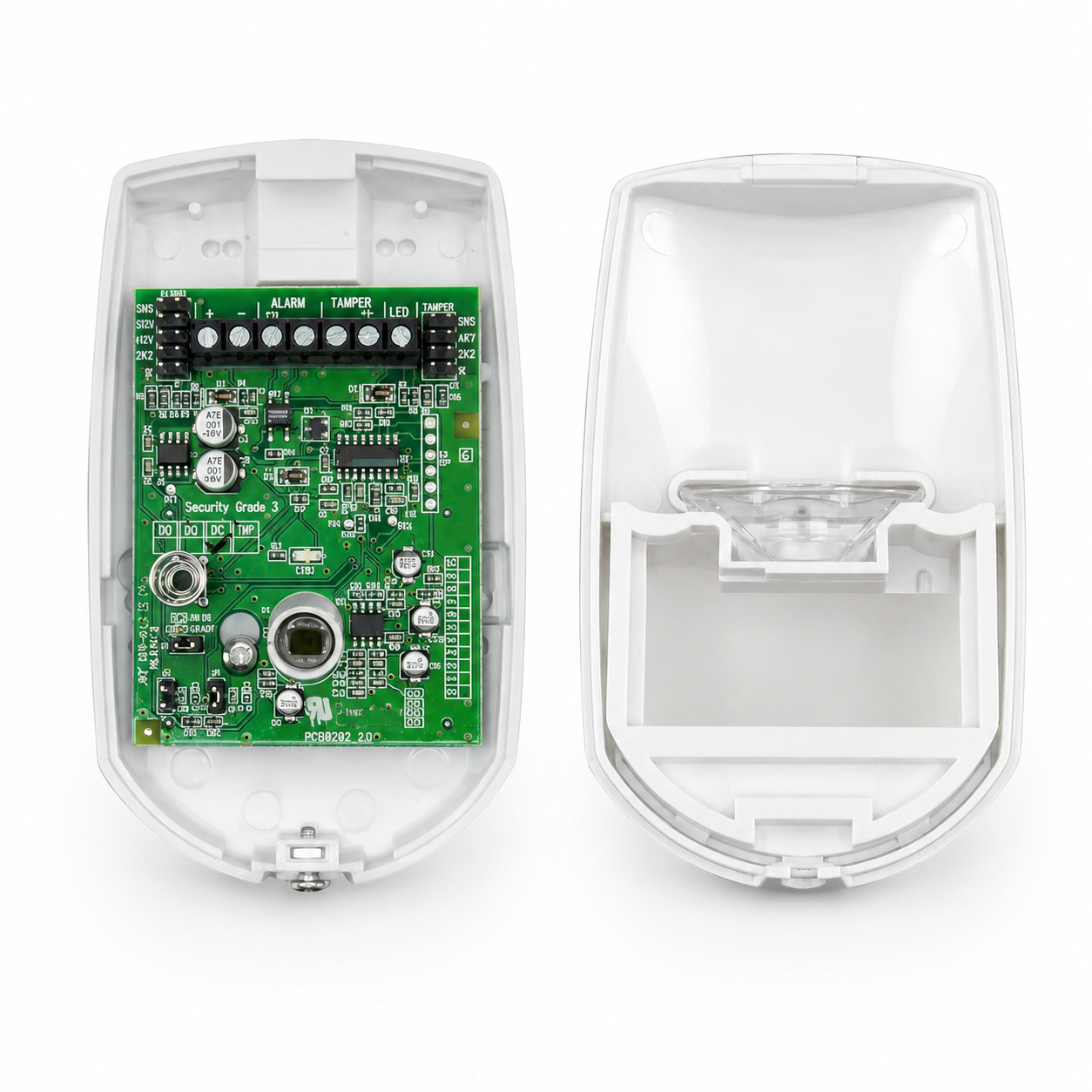

The detector also includes sealed optics to help protect the sensing chamber from insects, air movement, and internal reflections. Onboard EOL resistors make wiring faster and more flexible for different alarm panel configurations, while built-in tamper protection helps detect attempts to open or interfere with the device.
Key Features
-
Digital wired curtain PIR detector
-
Part code: KX18DC
-
Narrow curtain-style detection pattern
-
20° curtain coverage
-
46 zones over 6 planes
-
Up to 18m detection range
-
30m long-range coverage option
-
Dual-element pyro-electric PIR sensor
-
Creep-zone protection
-
Blue Wave Technology for false-alarm reduction
-
Automatic sensitivity adjustment
-
Digital temperature compensation
-
Independent Floating Thresholds
-
Sealed optics for improved reliability
-
Onboard EOL resistors for easier wiring
-
Built-in tamper protection
-
Supplied with wall and ceiling mounting brackets
-
EN50131 Grade 2 certified
-
Environmental Class II
Ideal For
-
Corridors and passages
-
Windows and glass-fronted areas
-
Doorways and entrances
-
Shop displays
-
Museums and galleries
-
Offices and reception areas
-
Stockrooms and storerooms
-
Narrow indoor detection zones
-
Areas requiring targeted curtain protection
-
Professional wired alarm installations
Technical Specifications
-
Brand: Pyronix
-
Model: KX18DC
-
Product Type: Digital Curtain PIR Detector
-
Detection Method: Passive Infrared
-
Sensor Type: Dual-element pyro-electric PIR
-

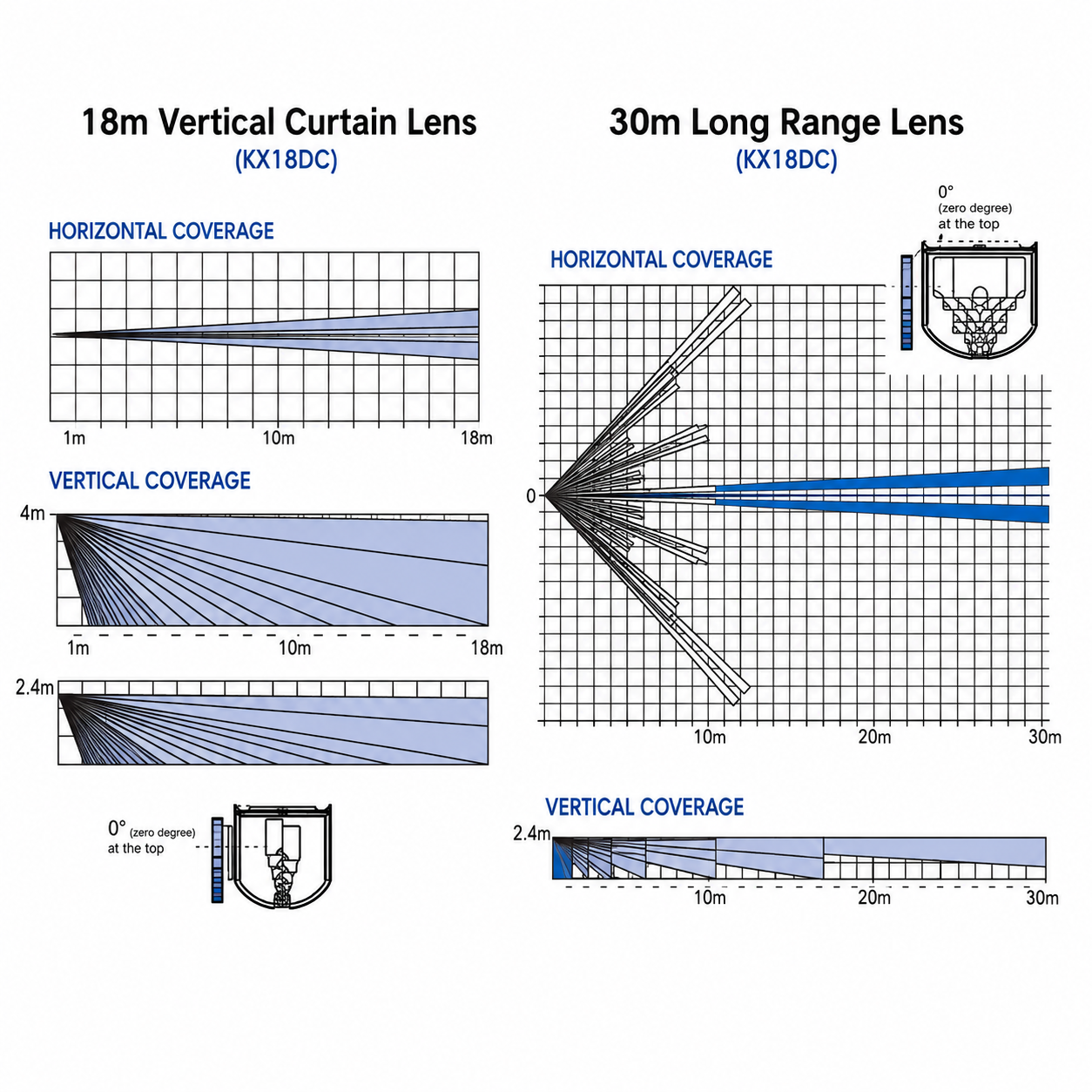

Curtain Coverage: 20°
-
Curtain Detection Pattern: 46 zones, 6 planes
-
Long-Range Detection Pattern: 24 zones, 6 planes
-
Maximum Range: 18m / 30m long range
-
Optimum Installation Height: Max 4m / 1.8m to 2.4m depending on setup
-
Power Supply: 9–16V DC, 12V DC nominal
-
Current Consumption: 11mA at rest / 13mA in alarm
-
Alarm Response: 2.5 seconds
-
Detection Speed: 0.3–3m/s
-
Direct Light Filter: 6500 Lux
-
Output Relay: Solid state
-
Tamper Protection: Included
-
Optics: Sealed optics, 3D geometric lens configuration
-
Dimensions: 69 × 117 × 55mm
-
Weight: Approx. 125g
-
Certification: EN50131 Grade 2
-
Environmental Class: II
Why Choose the Pyronix KX18DC?
The Pyronix KX18DC is ideal for installations where precise curtain detection is required. Its narrow 20° detection pattern, long-range capability, Blue Wave Technology, sealed optics, creep-zone protection, and built-in wiring flexibility make it a reliable choice for professional wired alarm systems.
Installation Note
Professional installation is recommended to ensure correct mounting height, lens selection, detector alignment, EOL resistor configuration, tamper setup, walk testing, and integration with the alarm control panel.
