Photoelectric Smoke Detector - Wired

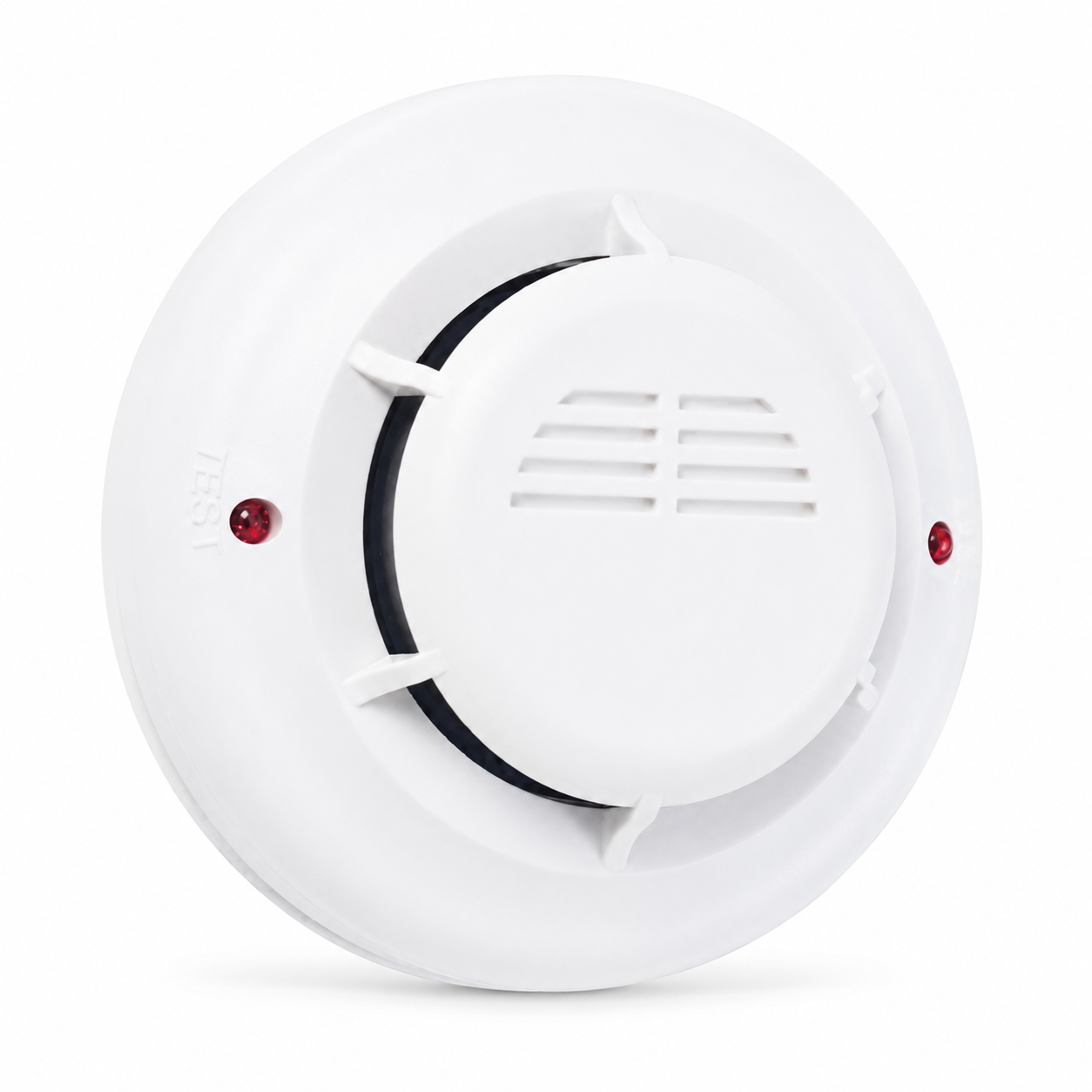

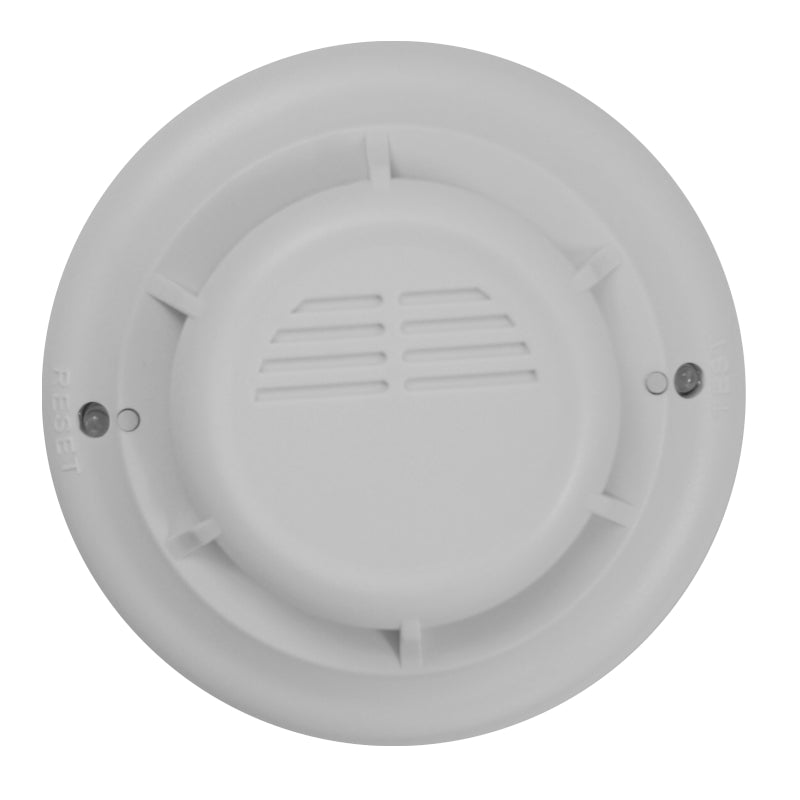

PA-1045H Wired Photoelectric Smoke Detector

The PA-1045H Photoelectric Smoke Detector is a reliable wired smoke detection device designed for early fire warning in residential, commercial, and light industrial environments. Using photoelectric sensing technology, it detects visible smoke particles produced by slow-smouldering fires, helping provide an important layer of protection for people, property, and equipment.

Designed for ceiling-mounted installation, the PA-1045H operates on 12V DC and is suitable for integration with compatible alarm panels and security systems. Its low standby current makes it efficient for continuous monitoring, while the relay output and LED alarm indication provide clear status feedback during an alarm event.

With a detection area of approximately 20m², the PA-1045H is ideal for rooms, offices, passages, storage areas, reception spaces, small shops, and other indoor areas where dependable smoke detection is required.

Key Features

• Wired photoelectric smoke detector

• Detects visible smoke particles from smouldering fires

• 12V DC operating voltage

• Low standby current: ≤5mA

• Alarm current: ≤35mA

• Ceiling-mounted installation

• Approximate detection range: 20m²

• Relay output with LED alarm indication

• LED flash indication during standby

• Infrared photoelectric diode sensor

• Operating temperature: -10°C to 50°C

• Operating humidity: ≤95% RH

• Suitable for integration with compatible alarm systems

Ideal For

• Homes and apartments

• Offices and reception areas

• Retail stores

• Storerooms and stock rooms

• Passageways and corridors

• Clinics, schools, and small commercial sites

• Alarm system fire-warning integration

The PA-1045H Wired Photoelectric Smoke Detector is a practical and dependable smoke detection solution for indoor security and safety installations, offering simple wired integration, reliable smoke sensing, and clear alarm indication.

The technical details are based on the PA-1045H manual specifications, including 12V DC supply, ≤5mA standby current, ≤35mA alarm current, -10°C to 50°C operating temperature, ≤95% RH humidity, ceiling mounting, and 20m² detection range.

NOTICE

1. The detector should not be placed in very hot, very cold, high wind speed surroundings and in the conditions where there is a lot of smoke or dust normally.
2. The detector needs to be test one time every month.
3. To ensure it has a normal performance, you should clean the detector with soft brush semiyearly. When cleaning turn off power firstly.
4. For various reasons, including, but not limited to, changes in environmental conditions, electric or electronic disruptions and tampering, the Product may not perform as expected. The user is advised to take all necessary precautions for his/her safety and the protection of his/her property.
