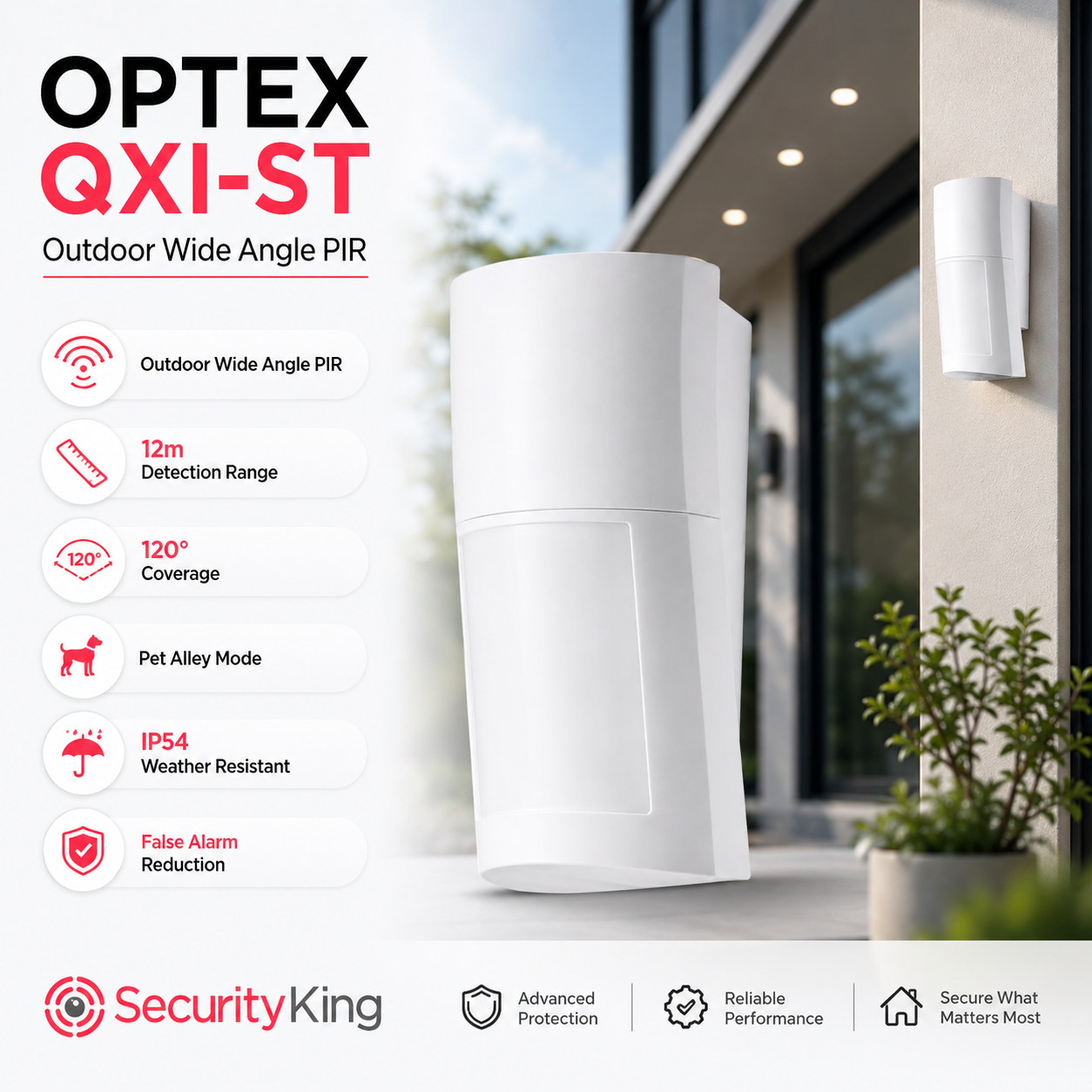

Optex QXI-ST Outdoor Wide Angle PIR – 862-01-QXI-ST
The Optex QXI-ST Outdoor Wide Angle PIR is a professional wired outdoor motion detector designed for reliable perimeter and intrusion detection around homes, offices, warehouses, commercial premises, estates, and outdoor security zones. As part of the Optex QX Infinity Series, it combines wide-angle detection, compact styling, and advanced false-alarm reduction technology for dependable outdoor performance.
With a 12m detection range and 120° wide detection coverage, the QXI-ST is ideal for monitoring open outdoor areas such as driveways, entrances, gardens, patios, boundary walls, parking areas, walkways, and building perimeters. Its passive infrared detection method is designed to detect movement across the protected zone and trigger the connected alarm system when intrusion activity is detected.
The detector includes selectable mounting height and detection pattern options, allowing installers to configure the unit for multi-level detection or pet-alley detection depending on the site requirement. The pet-alley option removes lower-area detection to help reduce nuisance alarms caused by small animals when correctly installed.
To improve stability in outdoor environments, the QXI-ST uses Optex SMDA logic, which analyses detection patterns and environmental changes to help distinguish between genuine intrusions and false-alarm causes such as vegetation movement or weather changes. Double conductive shielding helps reduce visible light disturbance and radio-frequency interference, improving detection reliability.
The sleek and compact housing is made from UV-resistant ASA material and is suitable for indoor or outdoor wall or ceiling mounting. With IP54 protection and an operating temperature range from -40°C to +60°C, the QXI-ST is built for challenging outdoor security installations.
Key Features
Outdoor wired wide-angle PIR detector
Product code: 862-01-QXI-ST
Optex model: QXI-ST
Part of the QX Infinity Series
12m / 40ft detection range
120° wide detection coverage
Passive infrared detection
Multi-level detection: 40 zones
Pet-alley detection: 18 zones
Selectable mounting height and detection pattern
SMDA logic for improved false-alarm reduction
Double conductive shielding against light and RFI interference
Automatic walk test mode
Easy open and close front cover
UV-resistant ASA body
IP54 protection rating
N.C / N.O switchable alarm output
Tamper output for cover opening detection
9.5–16V DC power input
Ideal For
Residential perimeter security
Driveways and gate entrances
Gardens and patios
Commercial outdoor alarm systems
Warehouses and loading areas
Parking areas
Boundary walls and outdoor passages
Estates and complexes
Outdoor alarm zones requiring wide-angle coverage
Wired alarm installations
Technical Specifications
Brand: Optex
Model: QXI-ST
IDS Product Code: 862-01-QXI-ST
Product Type: Outdoor Wide Angle PIR Detector
Detection Method: Passive Infrared
Detection Coverage: 12m / 40ft, 120° wide
PIR Zones: 40 multi-level zones / 18 pet-alley zones
Detectable Speed: 0.3 to 2.0m/s
Sensitivity: 2.0°C at 0.6m/s
Power Input: 9.5–16V DC
Current Draw: 20mA max at 12V DC
Alarm Period: 2.0 ± 0.5 seconds
Warm-Up Period: Approx. 60 seconds
Alarm Output: N.C / N.O switchable, 28V DC, 0.1A max
The Optex QXI-ST is a strong choice for outdoor alarm installations that require wide-angle coverage, compact design, and reliable false-alarm resistance. With 12m / 120° detection, SMDA logic, double conductive shielding, pet-alley configuration, and durable outdoor construction, it provides dependable protection for a wide range of residential and commercial perimeter applications.
Installation Note
Professional installation is recommended to ensure correct mounting height, detection pattern selection, wiring, alarm panel integration, tamper setup, walk testing, and false-alarm reduction performance.
