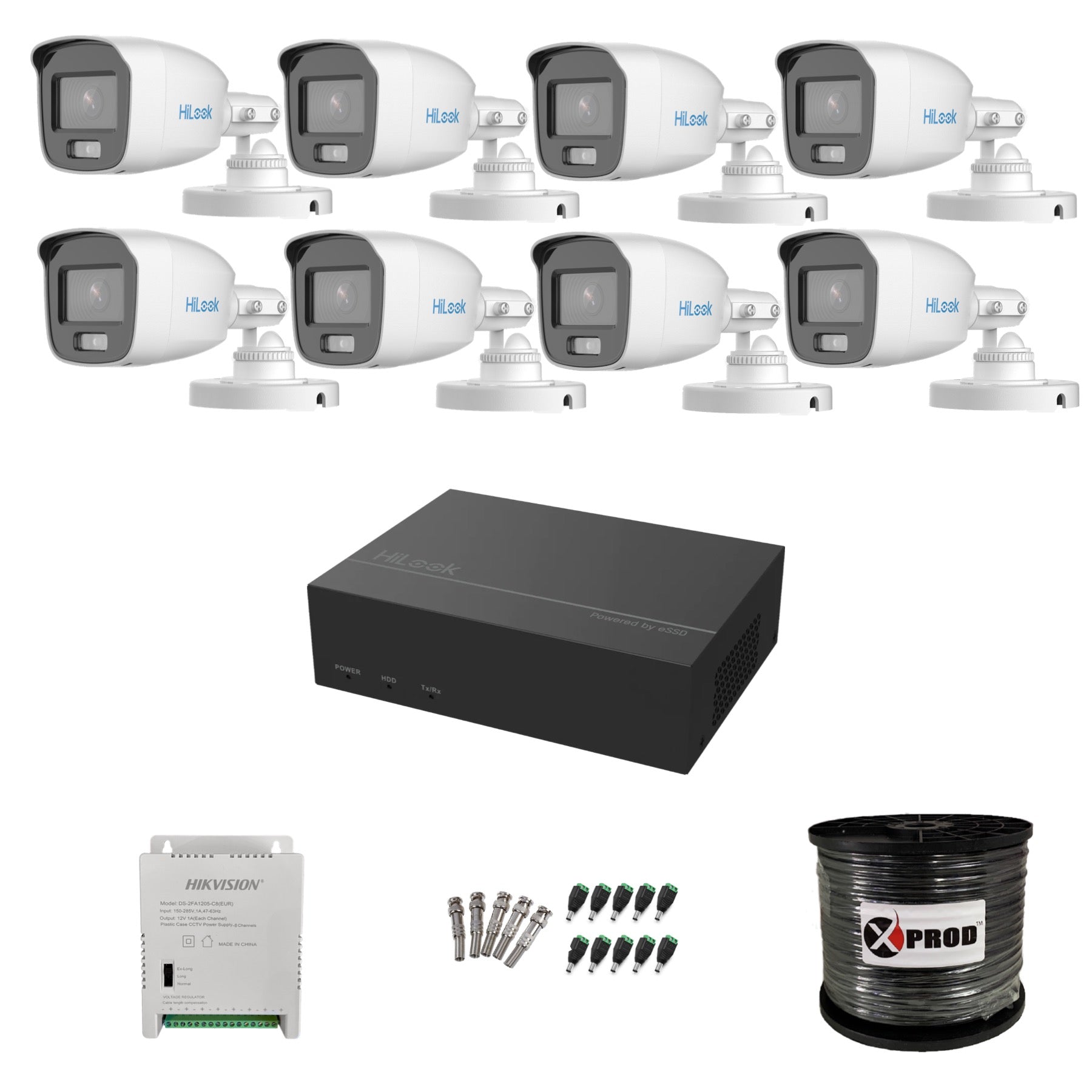

HiLook 8 Channel eSSD ColorVu Kit

HiLook DVR-E08G-B(STD)(B) 8-Channel 1080p Lite eSSD DVR

The HiLook DVR-E08G-B(STD)(B) is a compact 8-channel digital video recorder designed for reliable CCTV recording in homes, shops, offices, small businesses, warehouses, and commercial security installations. Built with integrated eSSD storage, smart compression, and intelligent motion detection, this DVR offers a practical plug-and-play recording solution without the need for a traditional surveillance hard drive.

With 8 BNC analogue video inputs, the DVR supports TVI, AHD, CVI, and CVBS camera formats, making it suitable for new installations as well as upgrades to existing analogue CCTV systems. It also supports 2 IP camera inputs up to 5MP, giving users additional flexibility when expanding their system.

The built-in 512GB eSSD provides integrated storage for video recording, helping reduce power consumption, vibration, and installation space compared to a standard HDD-based recorder. HiLook’s scene-adaptive bitrate control helps allocate recording storage efficiently according to the actual scene, supporting stable recording performance.

For smarter surveillance, the DVR includes Motion Detection 2.0 with deep learning-based human and vehicle classification. This helps reduce false alarms caused by irrelevant movement such as leaves, lights, shadows, or other non-human activity. Smart search also makes playback more efficient by allowing users to search footage by object or event type.

The DVR supports audio over coaxial cable when used with compatible cameras, allowing video and audio recording through the same coaxial connection. HDMI and VGA outputs allow convenient local display, while network connectivity supports remote viewing and system management through compatible HiLook platforms.

Key Features

• 8-channel 1080p Lite eSSD DVR

• Built-in 512GB eSSD storage

• 480GB available storage capacity

• Supports 8 analogue BNC camera inputs

• Supports TVI / AHD / CVI / CVBS camera formats

• Supports 2 IP camera inputs up to 5MP

• H.265 Pro / H.265 video compression

• Up to 1080p Lite recording resolution

• Motion Detection 2.0 with human and vehicle classification

• Smart search for efficient playback

• Scene-adaptive bitrate control for improved recording efficiency

• Audio via coaxial cable with compatible cameras

• HDMI and VGA simultaneous output

• Up to 8-channel synchronous playback

• 72Mbps total bandwidth

• 1 × RJ45 10/100Mbps Ethernet interface

• 2 × USB 2.0 ports

• Compact mini-size design

• Low power consumption

• Anti-vibration and lightweight design

Ideal For

• Home CCTV systems

• Small business surveillance

• Retail stores

• Offices and reception areas

• Warehouses and storerooms

• 8-camera analogue CCTV installations

• Budget-friendly CCTV upgrades

• Sites requiring built-in storage

• Installations where space and power consumption matter

Technical Specifications

• Brand: HiLook

• Model: DVR-E08G-B(STD)(B)

• Product Type: 8-Channel eSSD DVR

• Analogue Video Input: 8 × BNC

• IP Video Input: 2 channels, up to 5MP

• Video Compression: H.265 Pro / H.265

• Encoding Resolution: 1080p Lite / 720p / 720p Lite / WD1 / 4CIF / CIF / QVGA

• Main Stream Frame Rate: Up to 15fps

• Audio Input: 8-channel audio via coaxial cable

• Audio Output: 1-channel via HDMI

• Audio Compression: G.711u

• HDMI Output: Up to 1920 × 1080

• VGA Output: Up to 1920 × 1080

• Playback: Up to 8-channel synchronous playback

• Total Bandwidth: 72Mbps

• Incoming Bandwidth: 8Mbps

• Network Interface: 1 × RJ45 10/100Mbps

• Storage: Built-in 512GB eSSD

• Available Storage: Approx. 480GB

• USB Interface: 2 × USB 2.0 rear ports

• Power Supply: 12V DC, 1A

• Power Consumption: ≤ 6.2W with eSSD

• Working Temperature: -10°C to 45°C

• Working Humidity: 10% to 90%

• Dimensions: 151 × 121 × 46mm

• Weight: ≤ 0.5kg with eSSD

Why Choose the HiLook DVR-E08G-B(STD)(B)?

The HiLook DVR-E08G-B(STD)(B) is a smart and compact recording solution for users who want dependable CCTV storage without installing a separate hard drive. With built-in eSSD storage, support for multiple camera formats, smart human and vehicle motion detection, audio over coaxial support, and efficient H.265 compression, it is a practical choice for modern small-scale CCTV installations.

Important Note

This model includes built-in eSSD storage and does not use a traditional removable surveillance hard drive. Recording time depends on camera resolution, number of cameras, recording schedule, bitrate settings, scene activity, and image quality settings.

Installation Note

Professional installation is recommended to ensure correct camera compatibility, power supply, video format setup, network configuration, remote viewing setup, audio recording settings, and playback configuration.
