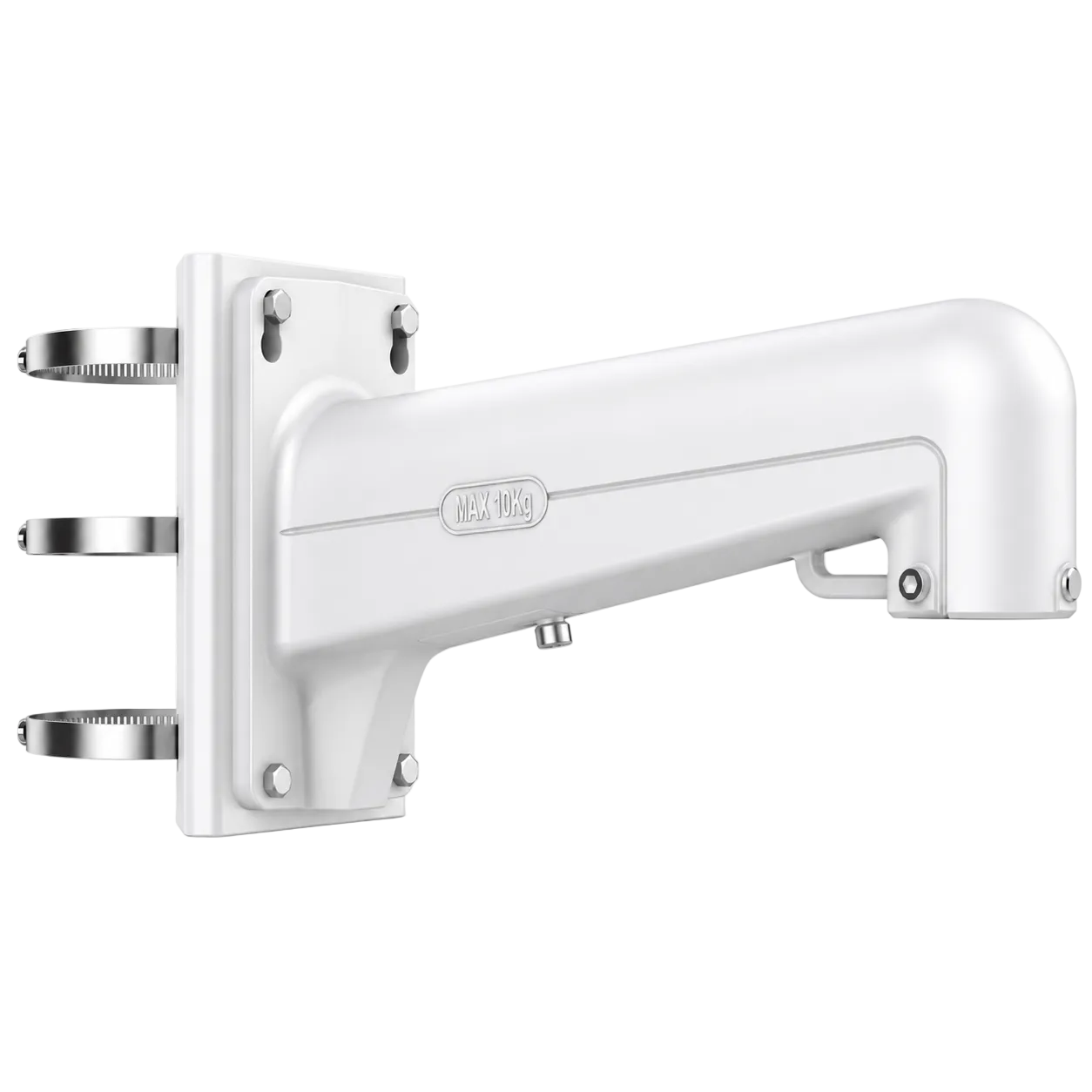

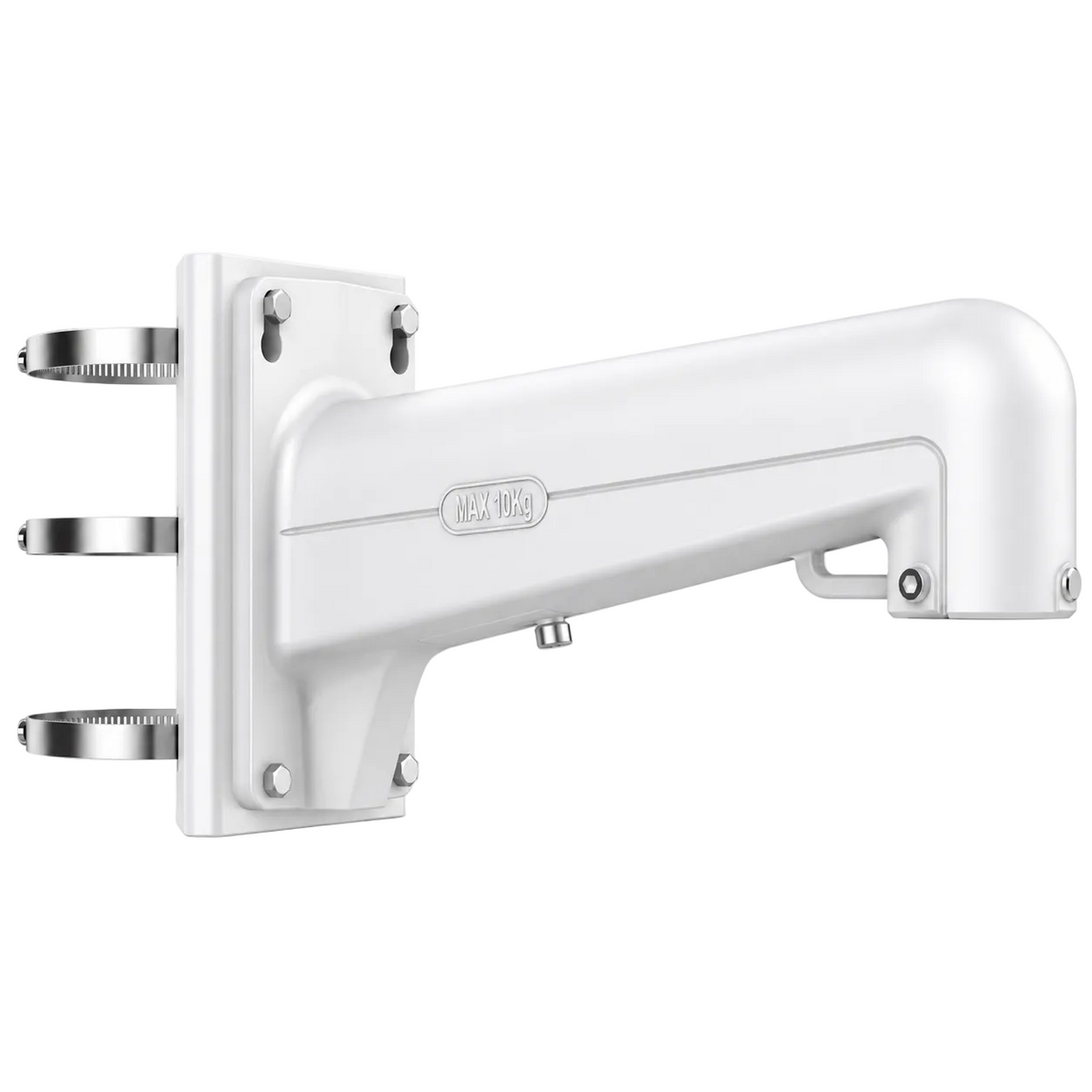

Hikvision PTZ Vertical pole mount

The Hikvision DS-1602ZJ-Pole is a heavy-duty vertical pole mounting bracket designed for compatible Hikvision speed dome surveillance cameras. Constructed from a combination of aluminium and steel, it provides a strong and stable mounting solution for professional CCTV installations where a camera needs to be securely installed on a vertical pole.

Finished in Hikvision white, the bracket is designed for speed dome pendant mounting and supports installation on poles with a diameter of approximately 67–127 mm. Its robust construction makes it suitable for outdoor surveillance installations such as parking areas, estates, commercial properties, warehouses and perimeter security applications.

Key Features

• Vertical pole mount bracket for compatible Hikvision speed dome cameras
• Suitable for speed dome pendant mounting
• Durable aluminium and steel construction
• Designed for poles approximately 67–127 mm in diameter
• Hikvision white finish for a professional appearance
• Heavy-duty construction for secure camera mounting
• Clamp load capacity of up to 10 kg
• Ideal for commercial, industrial and perimeter CCTV installations

Product Specifications

Model: DS-1602ZJ-Pole
Product Type: Vertical Pole Mount Bracket
Material: Aluminium & Steel
Colour: Hikvision White
Dimensions: 350.8 × 194.0 × 126.2 mm
Weight: Approx. 2040 g
Pole Diameter Compatibility: 67–127 mm
Clamp Load Capacity: 10 kg
Application: Speed Dome Pendant Mounting

The Hikvision DS-1602ZJ-Pole is an ideal mounting accessory for professional surveillance installations that require a strong, reliable and secure method of installing Hikvision speed dome cameras on vertical poles.
