Hikvision DS-K4H450-LZ Pro Series Magnetic Lock Bracket
The Hikvision DS-K4H450-LZ is a professional LZ mounting bracket designed for use with the Hikvision DS-K4H450 series electromagnetic magnetic lock, including the DS-K4H450S maglock. It provides a secure and stable installation solution for doors where a standard surface-mount maglock installation is not suitable.
Made from anodized aluminium and high-strength aluminium, the DS-K4H450-LZ is built for durability, strength and long-term access control performance. It is suitable for wooden doors, metal doors and narrow-frame doors, making it a practical option for commercial, residential and industrial access control installations.

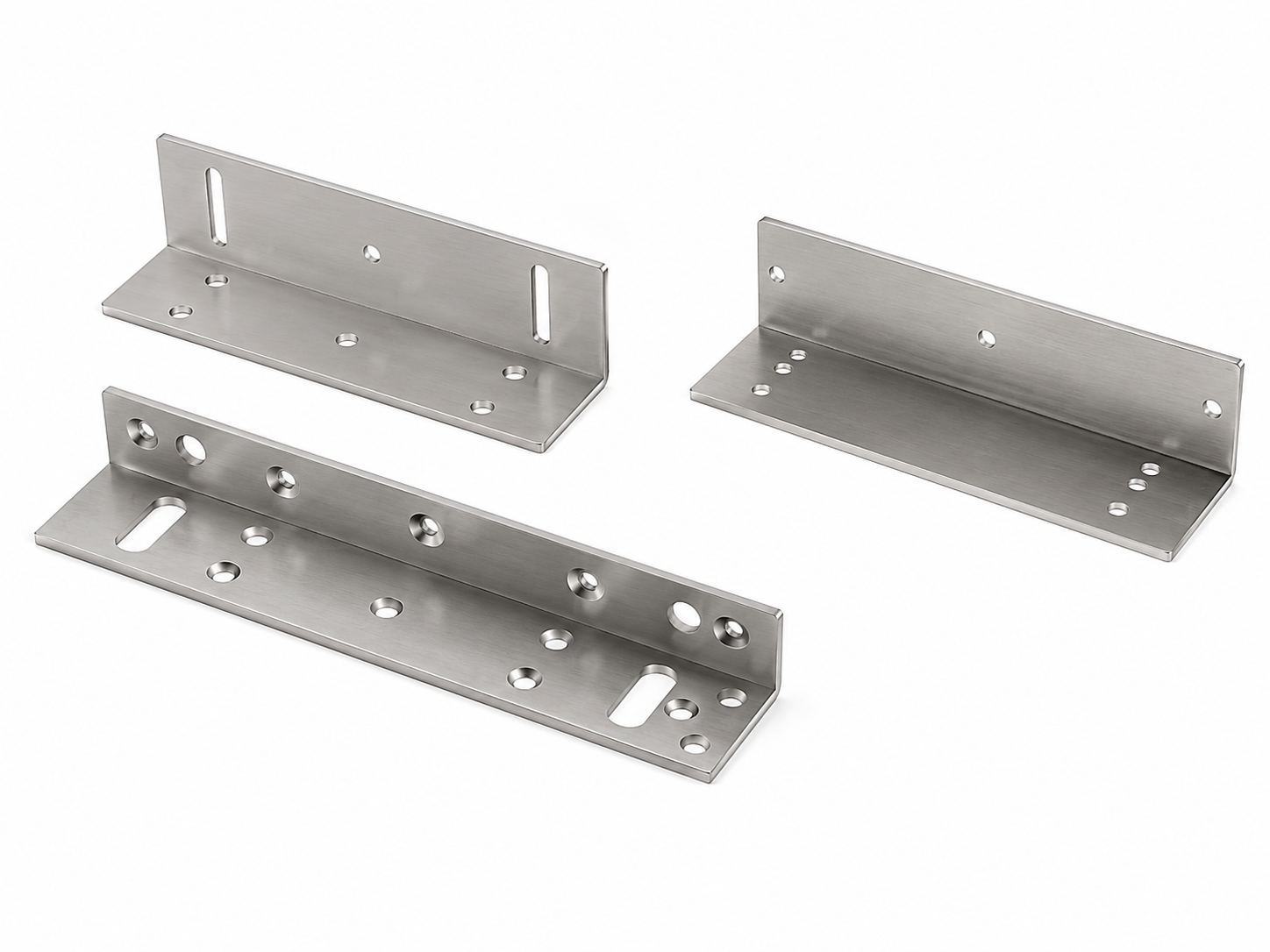

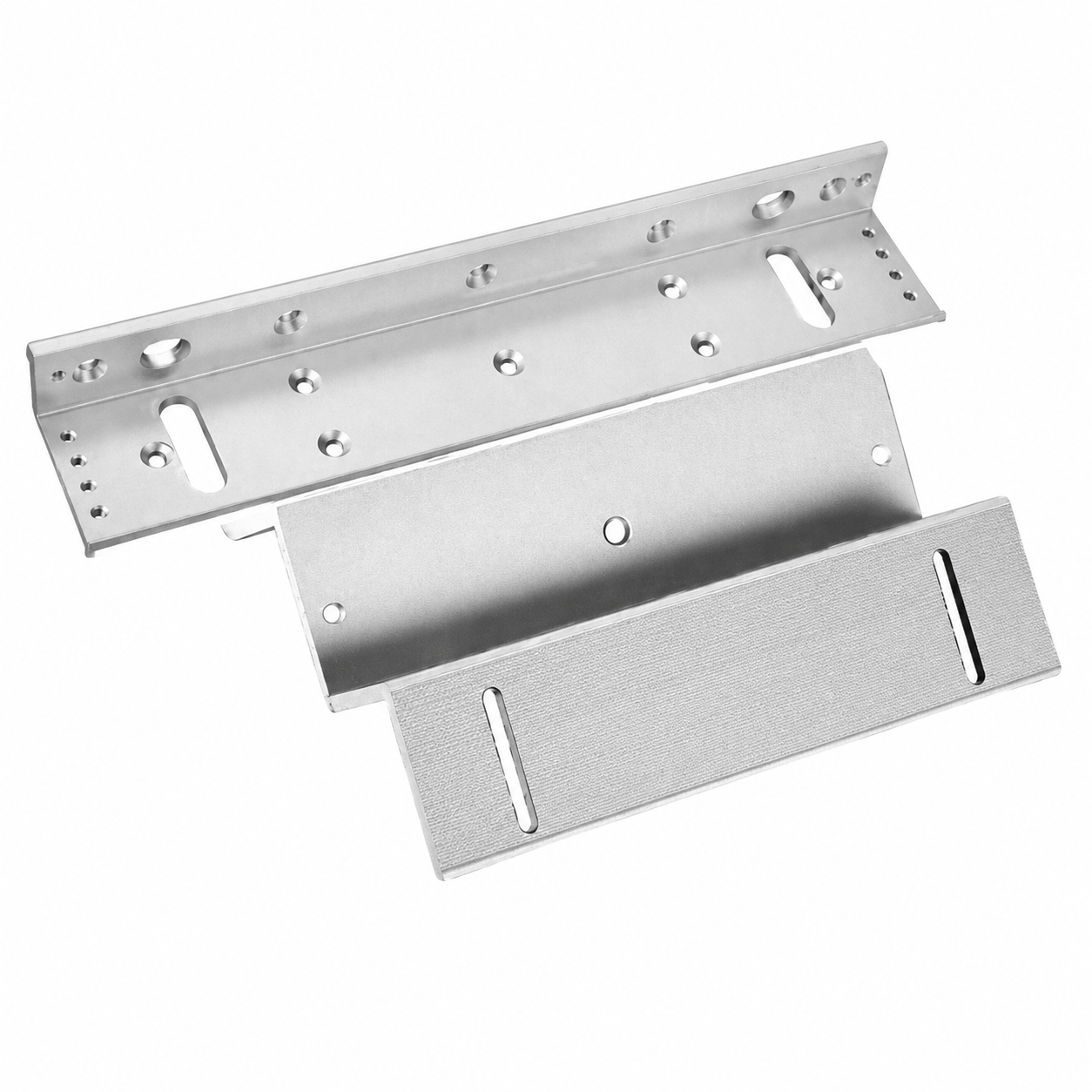

The bracket set includes both L-bracket and Z-bracket components, allowing installers to correctly position the magnetic lock and armature plate for reliable door locking. It is ideal for 90° opening doors and helps ensure proper alignment between the maglock and the armature plate for maximum holding force.
Key Features
-
LZ magnetic lock bracket
-
Designed for the Hikvision DS-K4H450 500KG Magnetic Lock range
-
Compatible with DS-K4H450S maglock
-
Suitable for wooden, metal and narrow-frame doors
-
Ideal for 90° opening doors
-
Provides secure maglock and armature plate alignment
-
Strong anodized aluminium construction
-
High-strength aluminium body with sandblasted finish
-
Professional access control installation accessory
-
L-bracket size: 265 × 72 × 45.2mm
-
Z-bracket size: 185 × 70 × 61mm
-
Weight: approximately 1.3kg
Ideal For:
Access control installations on office doors, security rooms, retail entrances, apartment buildings, warehouses, schools, commercial sites and other secure entry points where a Hikvision 500kg magnetic lock requires an LZ mounting bracket.
