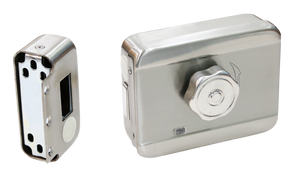

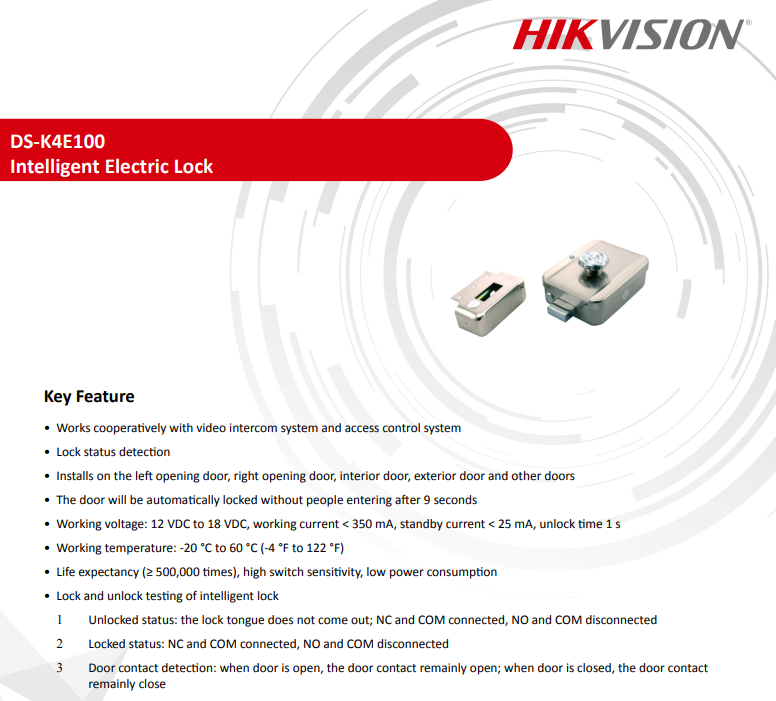

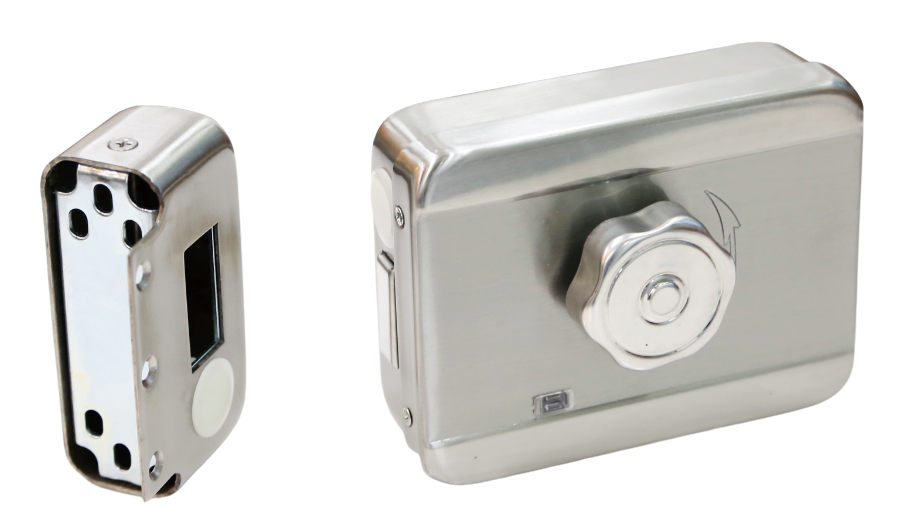

Hikvision Pro Series Electric Motor Lock

DS-K4E100

• Intelligent Electric Lock, don't need to distinguish the door direction, left and right sides, both inside and outside the door, can be universal
• Working Current: DC 12V ± 10%.

Key Feature

• Works cooperatively with video intercom system and access control system
• Lock status detection
• Installs on the left opening door, right opening door, interior door, exterior door and other doors
• The door will be automatically locked without people entering after 9 seconds
• Working voltage: 12 VDC to 18 VDC, working current < 350 mA, standby current < 25 mA, unlock time 1 s
• Working temperature: -20 °C to 60 °C (-4 °F to 122 °F)
• Life expectancy (≥ 500,000 times), high switch sensitivity, low power consumption
• Lock and unlock testing of intelligent lock
1 Unlocked status: the lock tongue does not come out; NC and COM connected, NO and COM disconnected
2 Locked status: NC and COM connected, NO and COM disconnected
3 Door contact detection: when door is open, the door contact remainly open; when door is closed, the door contact
remainly close
