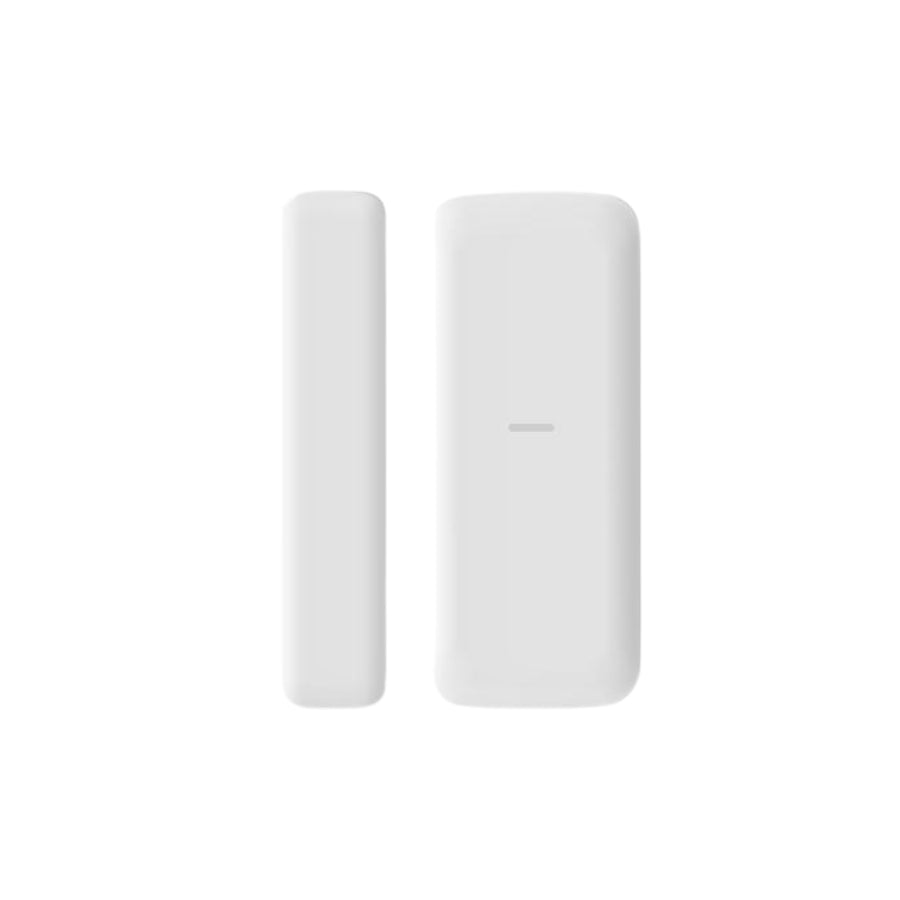

Hikvision DS-PDMCS-EG2-WE AX PRO Wireless Slim Magnet Detector
Short Description
The Hikvision DS-PDMCS-EG2-WE is a slim wireless magnetic contact detector designed for Hikvision AX PRO alarm systems. Built for discreet indoor installation on doors and windows, it provides reliable opening detection, secure Tri-X wireless communication, tamper protection, app-based configuration, and long battery life.
Product Description
The Hikvision DS-PDMCS-EG2-WE AX PRO Wireless Slim Magnet Detector is designed to detect the opening of doors and windows as part of a Hikvision AX PRO wireless alarm system. Its ultra-slim profile makes it ideal for neat, unobtrusive installations where appearance matters, especially on window frames, door frames, cupboards, and internal entry points.
When the protected door or window is opened and the magnet separates from the detector, the device immediately sends a wireless alarm signal to the AX PRO control panel. This allows the system to notify users quickly and trigger the relevant alarm response.
The DS-PDMCS-EG2-WE uses Hikvision Tri-X wireless technology with two-way RF communication, AES-128 encryption, and frequency hopping for stable and secure transmission. With an open-space wireless range of up to 1,200 metres, it offers flexible installation across residential and commercial environments.
The device also features front and rear tamper protection, a blue alarm LED indicator, signal strength indication, environment temperature reporting, and remote configuration via the Hik-Connect app. Powered by a CR2450 battery with up to 3 years of battery life, it delivers reliable low-maintenance protection for modern wireless alarm installations.
Key Features:
-
Wireless slim magnetic contact detector
-
Designed for Hikvision AX PRO alarm systems
-
Detects opening of doors and windows
-
Slim, discreet design for unobtrusive installation
-
Ideal for window frames and indoor door frames
-
Opening contact detection method
-
Maximum detection gap up to 52 mm
-
Tri-X wireless communication technology
-
Two-way wireless RF communication
-
868 MHz transmission frequency
-
AES-128 encrypted wireless transmission
-
RF range up to 1,200 m in open space
-
Frequency hopping for reliable anti-jamming transmission
-
Multiple enrolment methods: power-up, remote ID, and QR code
-
Fully configurable through the app
-
Front and rear tamper protection
-
Blue LED alarm indicator
-
Signal strength indication
-
Environment temperature indicator
-
Battery powered for easy wireless installation
-
Up to 3 years standard battery life
Technical Specifications:
Brand: Hikvision
Model: DS-PDMCS-EG2-WE
Product Type: AX PRO Wireless Slim Magnet Detector
Application: Indoor
Detection Method: Opening contact
Detection Gap: Up to 52 mm max
Reed Switch: 1
Wireless Technology: Tri-X Wireless
Transmission Method: Two-way RF wireless
Transmission Frequency: 868 MHz
RF Range: Up to 1,200 m in open space
Transmission Encryption: AES-128 encryption
Frequency Hopping: Supported
Enrolment Methods: Power-up, Remote ID, QR code
Tamper Protection: Front and rear
LED Indicator: Blue alarm LED
Signal Strength Indicator: Supported
Environment Temperature Indicator: Supported
Power Supply: Battery powered
Battery Type: 1 × CR2450
Standard Battery Life: Up to 3 years
Sensor Dimensions: 29 mm × 69 mm × 10 mm
Magnet Dimensions: 14 mm × 69 mm × 10 mm
Weight: 38 g
Operating Temperature: -10°C to 55°C
Storage Temperature: -20°C to 60°C
Operating Humidity: 10% to 90%
Installation Method: Indoor mounting
Compatibility: Hikvision AX PRO wireless alarm systems
What’s in the Box:
Ideal For:
-
Doors and windows
-
Window frames
-
Internal entry points
-
Homes and apartments
-
Offices and boardrooms
-
Retail stores
-
Stock rooms and storerooms
-
AX PRO wireless alarm installations
-
Discreet indoor intrusion detection
