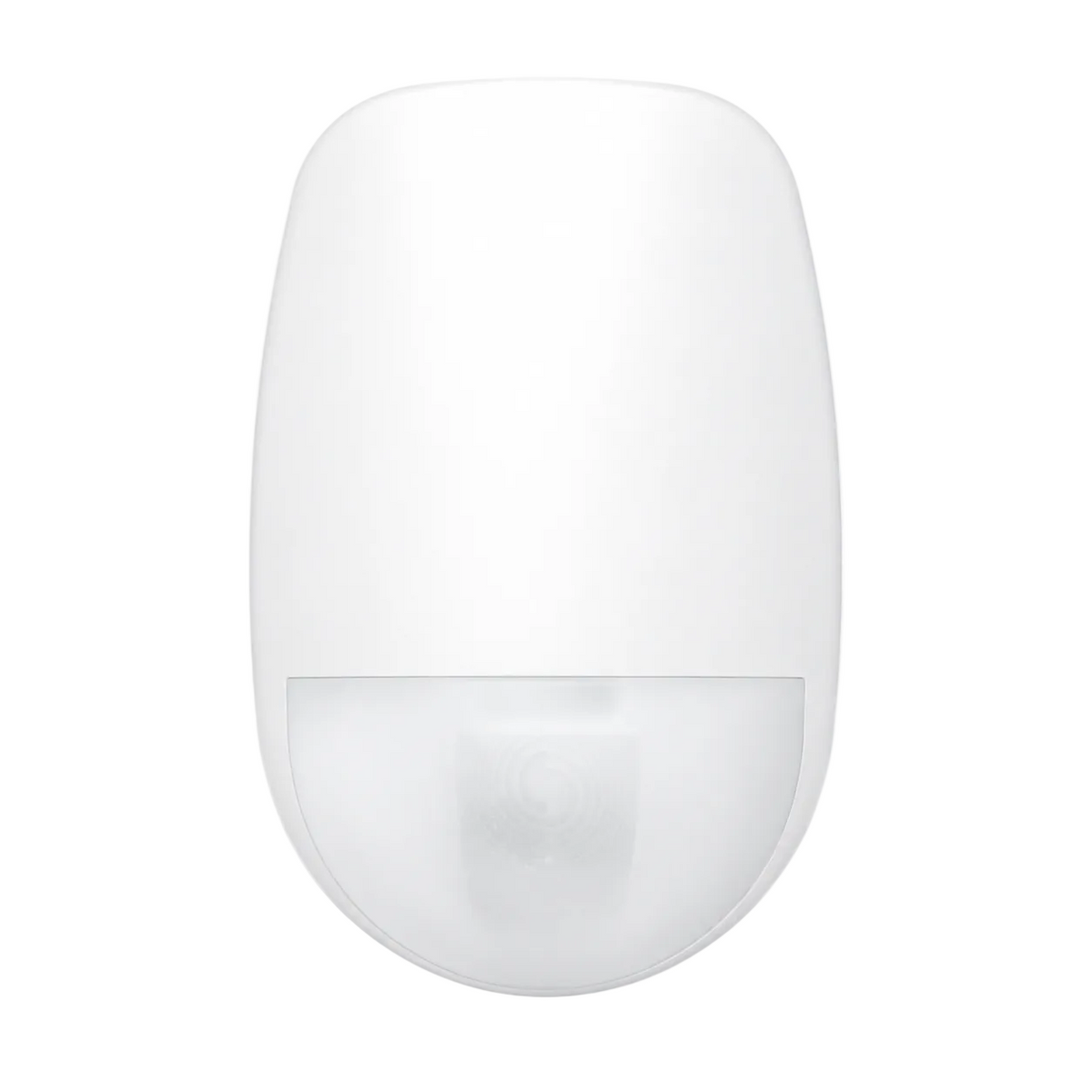

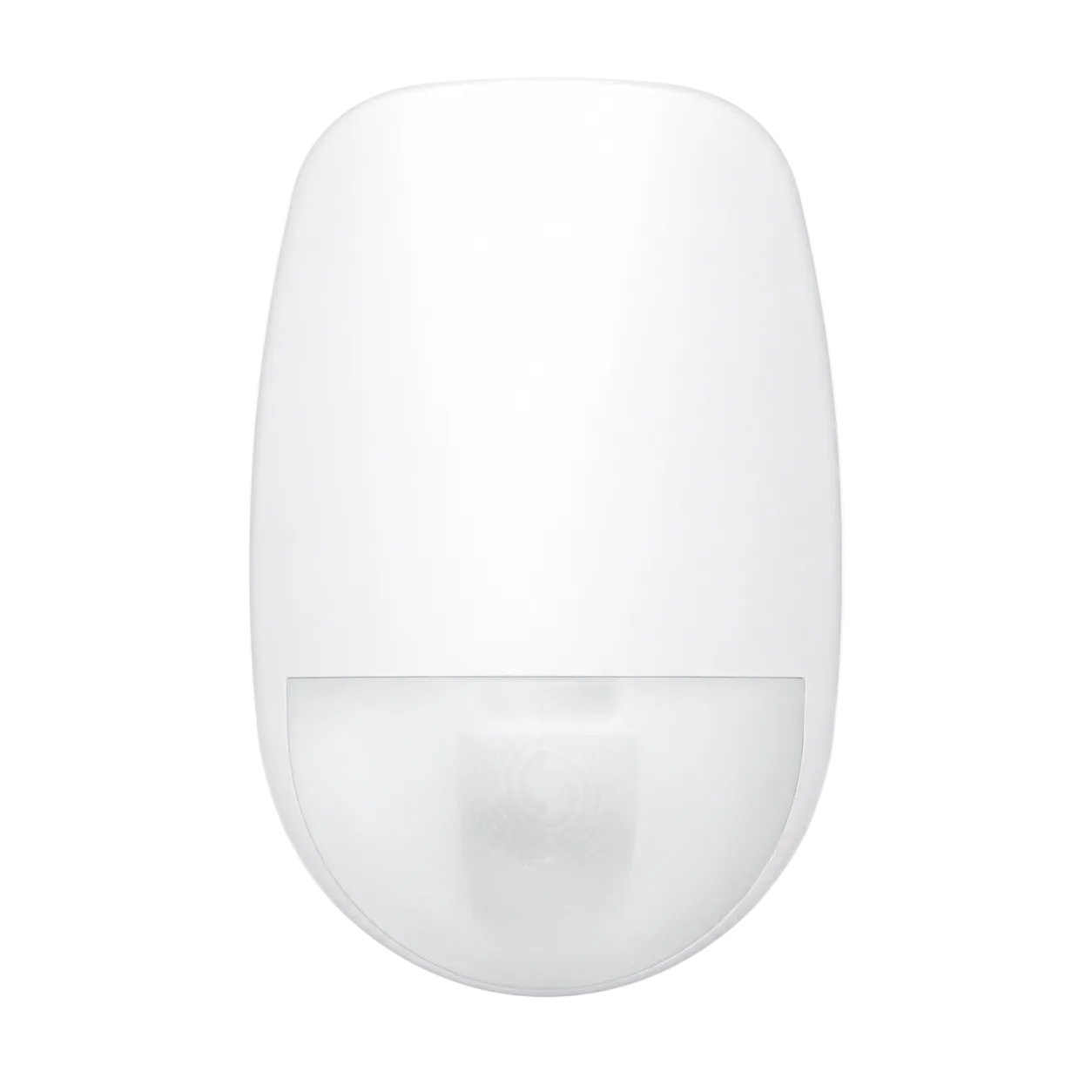

The Hikvision DS-PDC15-EG2-WE is a two-way wireless PIR curtain detector designed for use with the Hikvision AX PRO wireless alarm system. It creates a narrow, concentrated detection curtain of up to 15 metres, making it ideal for protecting windows, doorways, passages and other perimeter areas where conventional wide-angle detection is not required.
With a narrow 6.3° detection angle and up to 18 detection zones, the detector provides focused coverage while helping minimise unwanted detections outside the protected area. Digital temperature compensation, sealed optics and creep-zone protection contribute to stable and dependable detection performance.
The detector communicates using Hikvision's Tri-X two-way wireless technology and supports AES-128 encrypted communication, frequency hopping and a wireless transmission range of up to 1.6 km in open space. It can also be remotely configured through the Hikvision app for convenient installation and system management.
Key Features
- 15 m PIR curtain detection range
- Narrow 6.3° detection angle
- Up to 18 detection zones
- Suitable for protecting windows, doors and perimeter areas
- Tri-X two-way wireless communication
- Up to 1.6 km wireless range in open space
- AES-128 encrypted transmission
- Frequency hopping for improved resistance to interference and jamming
- Fully configurable remotely through the Hikvision app
- Digital temperature compensation
- Sealed optics for improved detection reliability
- Creep-zone protection
- Front and rear tamper protection
- Signal-strength indication
- Multiple enrolment methods including power-up, remote ID and QR code
- Easy-to-replace CR123A battery
- Battery life of up to 5 years under typical standby conditions
Product Specifications
Model: DS-PDC15-EG2-WE
Product Type: Wireless PIR Curtain Detector
Detection Method: Passive Infrared
Detection Range: 15 m
Detection Angle: 6.3°
Detection Zones: 18
Detectable Speed: 0.3–2 m/s
Wireless Technology: Tri-X
Frequency: 868 MHz
Wireless Range: Up to 1.6 km in open space
Encryption: AES-128
Battery: 1 × CR123A, 3 V
Battery Life: Up to 5 years
Mounting Height: 2.4–3.6 m
Mounting: Wall
Dimensions: 65.5 × 103 × 48.5 mm
Weight: 128 g
The Hikvision DS-PDC15-EG2-WE is a practical addition to an AX PRO alarm system where long, narrow-area protection is required, providing reliable wireless communication, focused curtain detection and convenient remote configuration.
