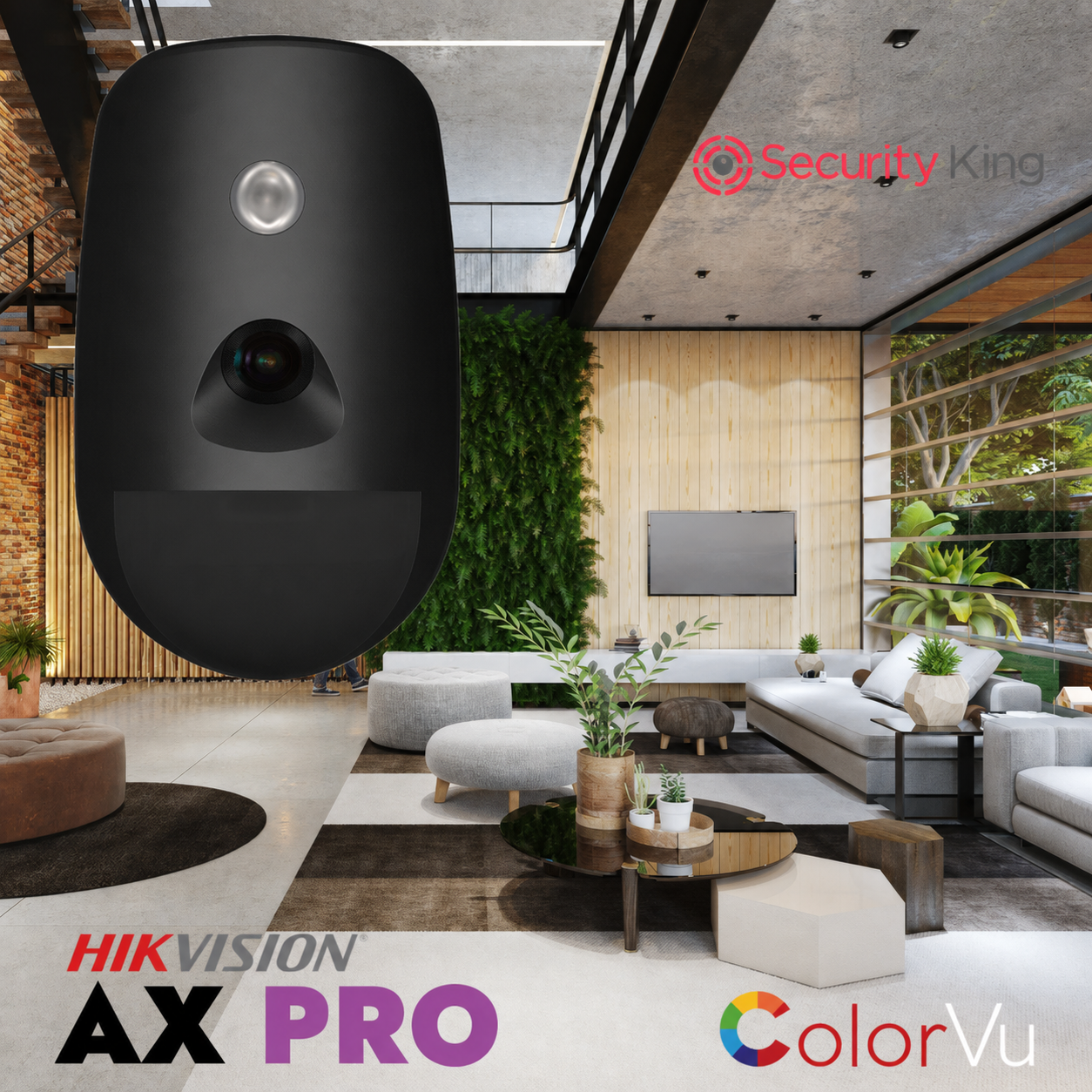

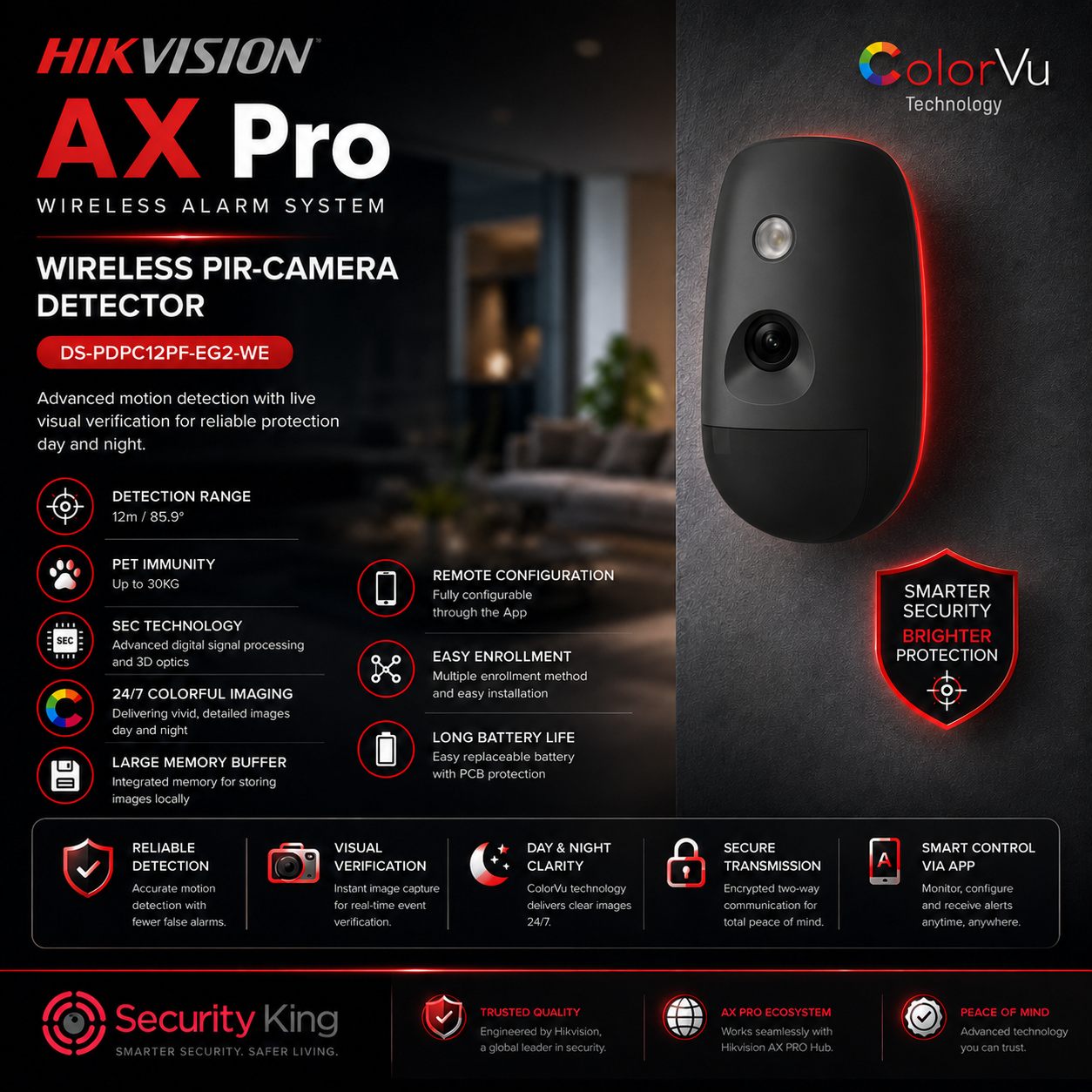

Hikvision DS-PDPC12PF-EG2-WE(B) Wireless PIR-Camera Detector Black Series
The Hikvision DS-PDPC12PF-EG2-WE(B) is a wireless PIR-camera detector designed for Hikvision AX PRO alarm systems. It combines passive infrared motion detection with built-in image verification, allowing users or monitoring centres to visually confirm alarm events and respond more accurately.
With a 12m detection range, 85.9° detection angle, and 30kg pet immunity, this detector is ideal for indoor homes, offices, shops, storerooms, reception areas, passages, and commercial spaces where reliable intrusion detection is required. It uses CAM-X two-way wireless communication with AES-128 encryption, providing secure wireless transmission up to 800m in open space.
The built-in camera captures JPEG images in multiple resolutions, including 640 × 480, 320 × 240, and 160 × 120, with white light fill illumination up to 12m for full-colour image verification. It also supports front and rear tamper protection, digital temperature compensation, sealed optics, signal strength indication, and remote enrolment by power-up, remote ID, or QR code.
Key Features
-
Wireless PIR-camera detector for Hikvision AX PRO
-
Passive infrared motion detection with video verification
-
Detection range: 12m
-
Detection angle: 85.9° / 90°
-
52 detection zones
-
Pet immunity up to 30kg
-
Full-colour image verification
-
JPEG image capture: 640 × 480 / 320 × 240 / 160 × 120
-
White light fill range up to 12m
-
CAM-X two-way wireless technology
-
AES-128 encrypted transmission
-
Wireless range up to 800m in open space
-
Front and rear tamper protection
-
Digital temperature compensation
-
Sealed optics
-
Creep zone protection
-
Signal strength indicator
-
Powered by 3 × CR123A batteries
-
Standard battery life up to 6 years
-
Indoor wall-mount installation
Ideal For
-
Homes and apartments
-
Offices and retail stores
-
Passageways and reception areas
-
Storerooms and stock rooms
-
Indoor alarm zones
-
AX PRO alarm system upgrades
-
Installations requiring image verification
Why Choose the Hikvision DS-PDPC12PF-EG2-WE(B)
The DS-PDPC12PF-EG2-WE(B) is ideal for users who want more than standard motion detection. With PIR sensing, full-colour image verification, pet immunity, secure wireless communication, and AX PRO integration, it helps reduce false alarms while giving users clearer confirmation of real alarm events.
