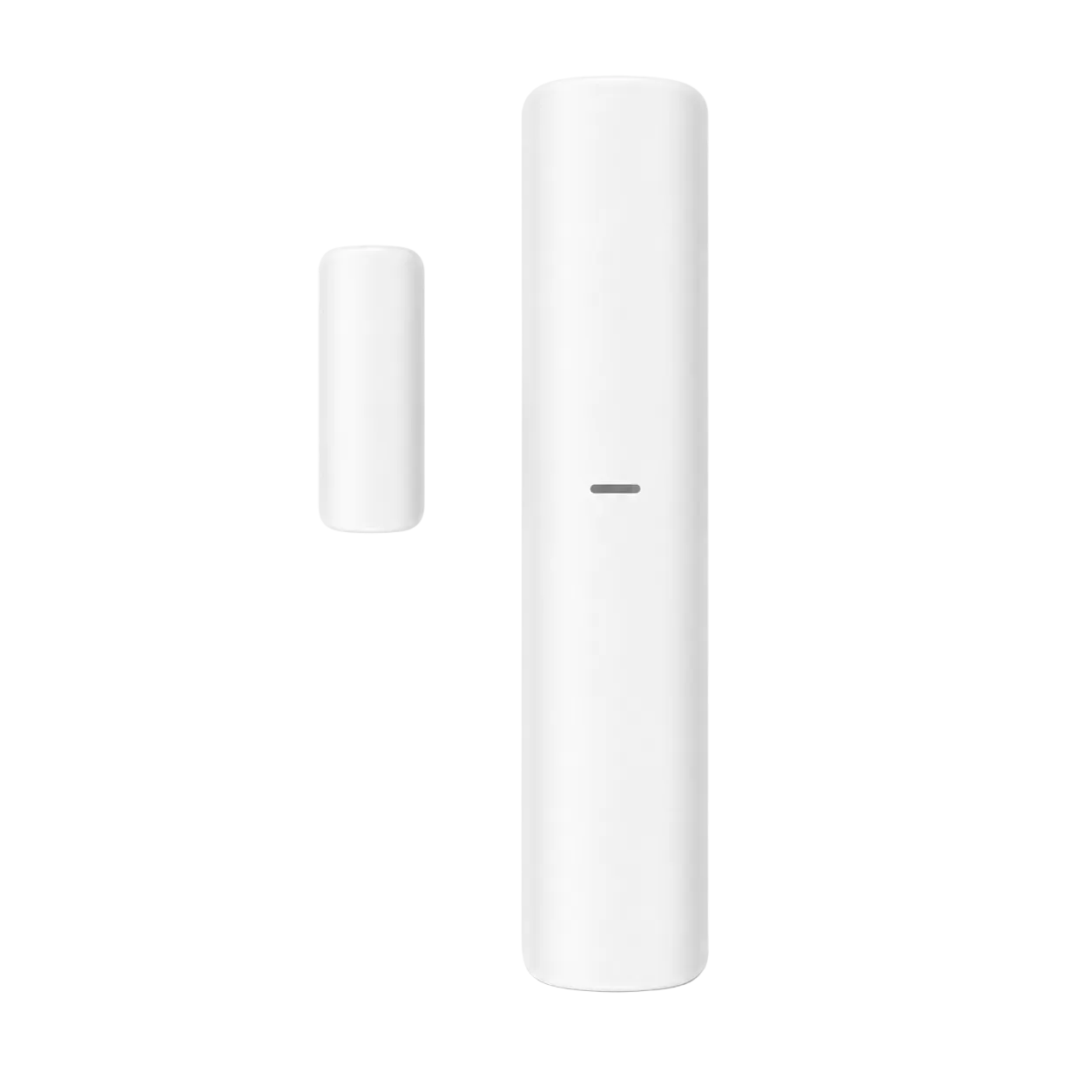

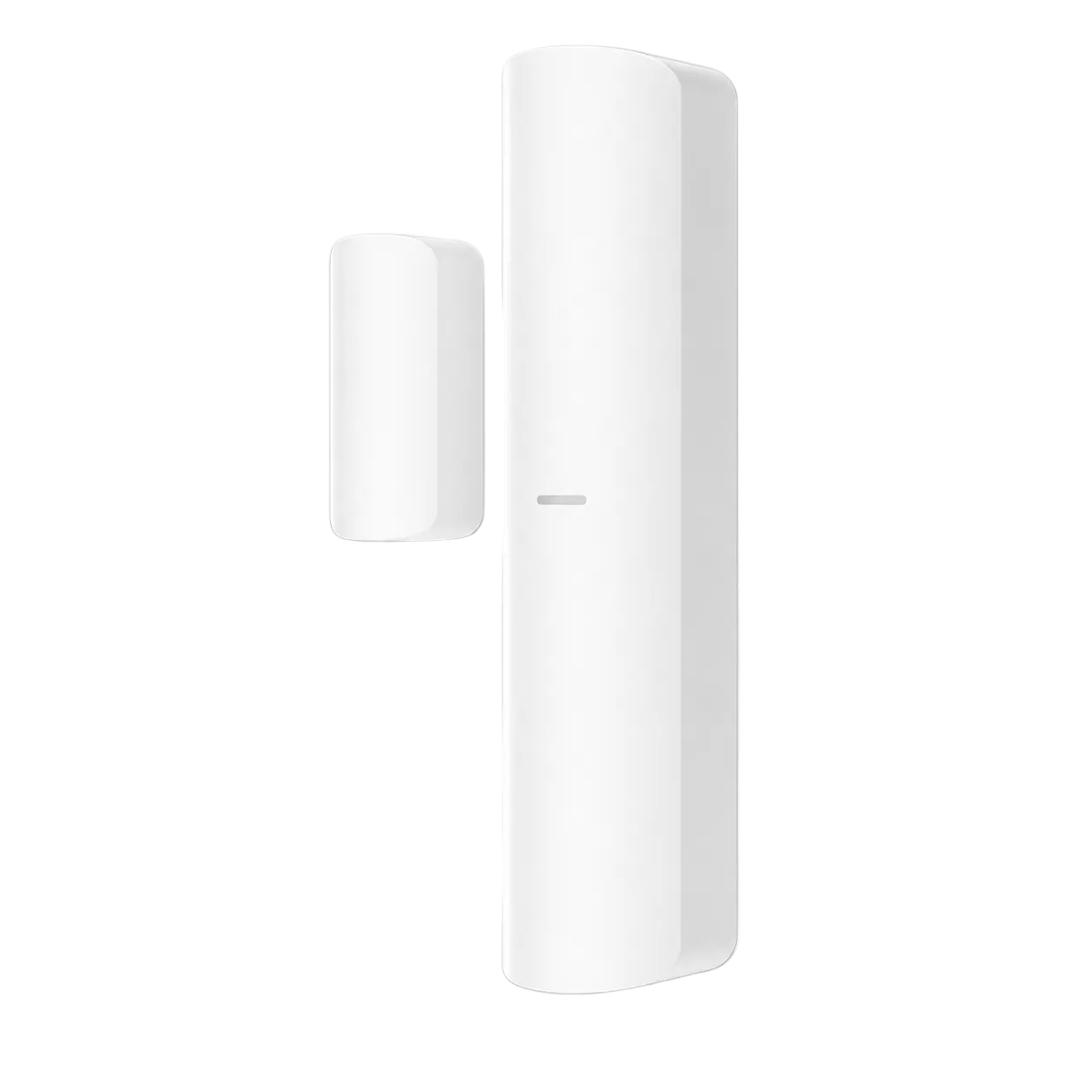

Hikvision DS-PDMCK-EG2-WE(B) Wireless Magnetic Shock Detector
The Hikvision DS-PDMCK-EG2-WE(B) is a professional wireless opening detector designed for Hikvision AX PRO alarm systems. Combining magnetic contact detection, shock detection, and tilt detection in one compact device, it provides enhanced protection for doors, windows, frames, cabinets, and other entry points.
This detector does more than simply monitor whether a door or window is opened. Its built-in shock sensor can detect impact or forced-entry attempts, while tilt detection adds another layer of protection against movement or tampering. This makes it ideal for areas where early intrusion detection is required before an entry point is fully opened.
Using Hikvision’s Tri-X wireless technology, the DS-PDMCK-EG2-WE(B) offers reliable two-way RF communication with AES-128 encryption and frequency hopping to help protect against signal interference and jamming. It can be fully configured remotely through the app and supports multiple enrolment methods for easier installation.
The unit also includes two wired input extensions, allowing additional wired sensors or contacts to be connected where required. With a compact black design and battery-powered operation, it is a neat and reliable solution for residential, office, retail, and commercial intrusion detection.
Key Features:
-
Wireless magnetic contact with shock and tilt detection
-
Designed for Hikvision AX PRO alarm systems
-
Detects door and window opening
-
Built-in shock sensor for forced-entry detection
-
Tilt detection up to 25°
-
Shock detection with 8 sensitivity levels
-
2 wired input extensions
-
Supports normally closed, normally open, and impulse count alarm inputs
-
Front and rear tamper protection
-
Fully remote configurable through the app
-
Multiple enrolment methods: power-up, remote ID, and QR code
-
Tri-X two-way wireless communication
-
868MHz transmission frequency
-
AES-128 wireless encryption
-
Frequency hopping against jamming
-
Up to 1.6km wireless transmission range in free space
-
Signal strength indicator support
-
LED status indicators for magnetic contact, tilt, shock, and alarm events
-
Battery powered using 1 × CR123A battery
-
Up to 3 years standard battery life
-
Compact black indoor design
Ideal For
-
Doors and windows
-
Sliding doors
-
Aluminium and wooden frames
-
Office entrances
-
Retail shopfronts
-
Storerooms and cabinets
-
Residential alarm systems
-
Commercial AX PRO alarm installations
-
Early forced-entry detection
Technical Specifications
-
Brand: Hikvision
-
Model: DS-PDMCK-EG2-WE(B)
-
Product Type: Wireless Magnetic Shock Detector
-
Detection Method: Opening contact and shock sensor
-
Detection Gap: Up to 43mm
-
Shock Detection Sensitivity: 8 levels
-
Tilt Detection: Up to 25°
-
Wireless Technology: Tri-X Wireless
-
Transmission Method: Two-way RF wireless
-
Transmission Frequency: 868MHz
-
Wireless Security: AES-128 encryption
-
Transmission Range: Up to 1.6km in free space
-
Alarm Input: NC, NO, impulse count
-
Tamper Protection: Front and rear
-
Battery Type: 1 × CR123A
-
Typical Voltage: 3V
-
Battery Life: Up to 3 years standby time
-
Operating Temperature: -10°C to 55°C
-
Operating Humidity: 10% to 90%
-
Dimensions: 24 × 104 × 24.4mm
-
Magnet Dimensions: 13 × 34.4 × 11.4mm
-
Weight: Approx. 60g
-
Application: Indoor
Why Choose the Hikvision DS-PDMCK-EG2-WE(B)?
The DS-PDMCK-EG2-WE(B) is an advanced AX PRO detector for users who need more than basic open/close monitoring. With magnetic contact detection, shock analysis, tilt detection, wired input expansion, encrypted wireless communication, and reliable battery operation, it provides strong and intelligent protection for vulnerable entry points.
Installation Note
Professional installation is recommended to ensure correct device placement, magnet alignment, sensitivity setup, AX PRO enrolment, and alarm zone configuration.
