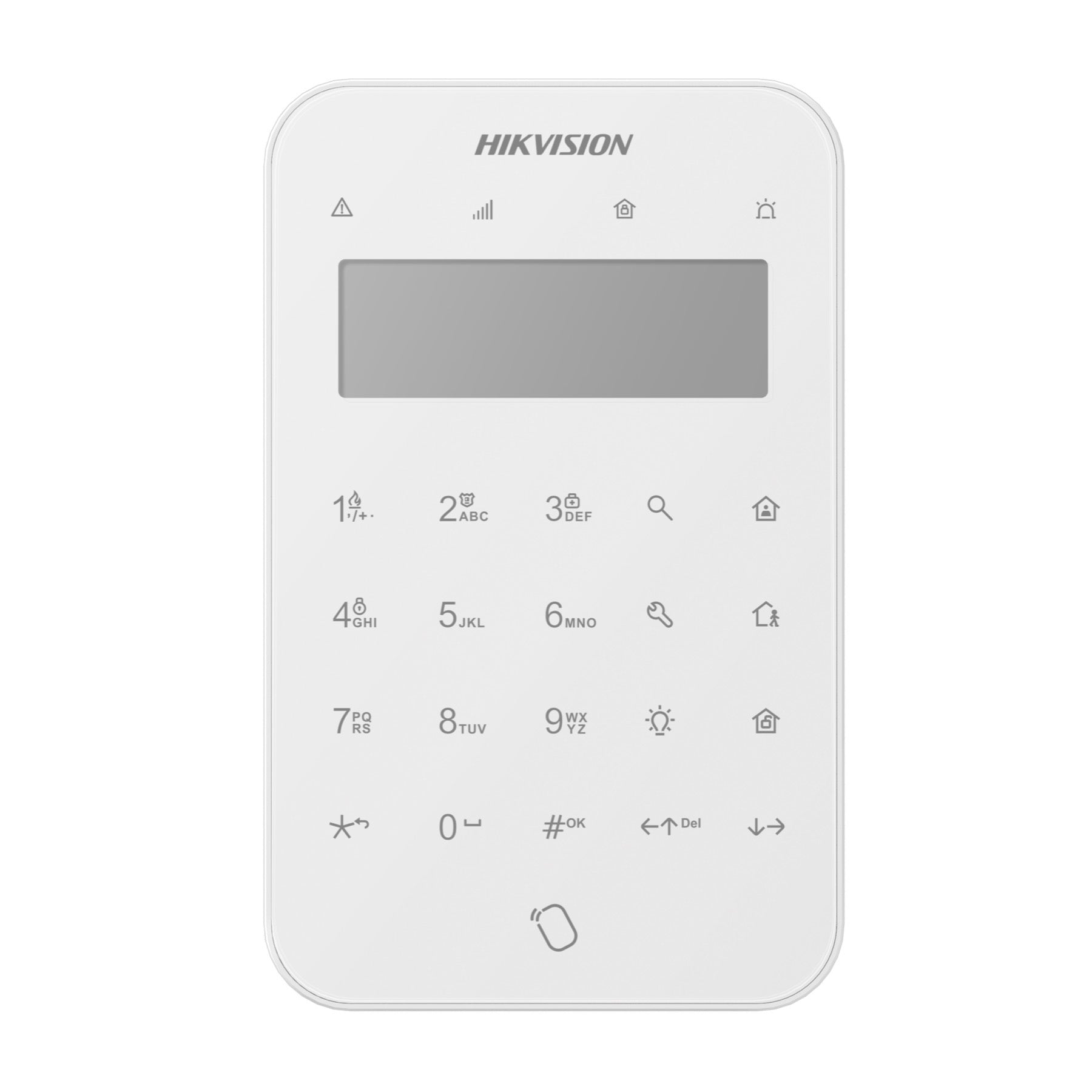

Hikvision DS-PK1-LT-WE AX PRO Wireless LCD Keypad
Short Description
The Hikvision DS-PK1-LT-WE is a wireless LCD keypad designed for Hikvision AX PRO alarm systems. Featuring an LCD display, LED status indicators, built-in tag reader, touch keypad with backlight, and secure Tri-X wireless communication, it provides convenient local alarm control for homes, offices, shops, and commercial security installations.
Product Description
The Hikvision DS-PK1-LT-WE AX PRO Wireless LCD Keypad gives users a simple and professional way to control their AX PRO alarm system directly from a wall-mounted keypad.
Designed for modern wireless alarm installations, this keypad supports multiple system operations including stay arm, away arm, disarm, silent alarm, output control, and system status query. The built-in LCD screen and LED indicators allow users to clearly view alarm status, faults, enrolment status, signal strength, arm/disarm status, and alarm events.
The DS-PK1-LT-WE includes a built-in tag reader, allowing compatible proximity tags to be used for quick and convenient operation. It also supports one-push emergency functions, including fire alarm, panic alarm, and medical alarm, making it a practical control point for residential and business alarm systems.
Using Hikvision Tri-X wireless technology with 868 MHz two-way communication, the keypad delivers stable and secure communication with compatible AX PRO hubs. With a wireless range of up to 1,200 m in open area, battery operation, front and rear tamper protection, and remote configuration through the app, the DS-PK1-LT-WE is a reliable and user-friendly addition to any AX PRO installation.
Key Features:
-
Wireless LCD keypad for Hikvision AX PRO alarm systems
-
868 MHz two-way wireless communication
-
Tri-X wireless technology
-
LCD screen for system information and configuration
-
LED indicators for fault, enrolment, signal, arm, disarm, and alarm status
-
Built-in tag reader for convenient tag-based operation
-
Supports stay arm, away arm, disarm, silent alarm, and output control
-
One-push fire, panic, and medical alarm functions
-
Full-touch keypad design with LED backlight
-
Remote configuration through the app
-
Front and rear tamper protection
-
Built-in buzzer
-
Power on/off switch
-
Wall-mount installation
-
Up to 1,200 m wireless range in open area
-
Battery powered with 4 × CR123 batteries
-
Up to 2 years standby battery life
-
Clean white finish suitable for modern interiors
Technical Specifications:
Brand: Hikvision
Model: DS-PK1-LT-WE
Product Type: AX PRO Wireless LCD Keypad
Colour: White
Display: LCD screen
Keypad Type: Full-touch keypad with LED backlight
Tag Reader: Built-in
Wireless Technology: Tri-X Wireless
RF Frequency: 868 MHz
RF Modulation: 2GFSK
RF Range: Up to 1,200 m in open area
Communication: Two-way wireless communication
Function Keys: Query, Away Arm, Stay Arm, Disarm, Output, Project, Right, Left, *, #
Numeric Keys: 0–9
LED Indicators: Fault, Enrolment/Signal, Arm, Disarm, Alarm
Buzzer: Supported
Tamper Protection: Front and rear tamper
Power Switch: Supported
Battery Type: 4 × CR123 batteries
Battery Life: Up to 2 years standby time
Operating Temperature: -10°C to 55°C
Operating Humidity: 10% to 90%
Installation Method: Wall mounting
Dimensions: 174.63 mm × 109.62 mm × 25.25 mm
Weight: 348 g with batteries / 282 g without batteries
Compatibility: Hikvision AX PRO wireless alarm systems
What’s in the Box:
Ideal For:
-
Hikvision AX PRO alarm systems
-
Homes and apartments
-
Offices and boardrooms
-
Retail shops
-
Reception areas
-
Commercial security installations
-
Local alarm arming and disarming
-
Installations requiring keypad and tag-based access control
