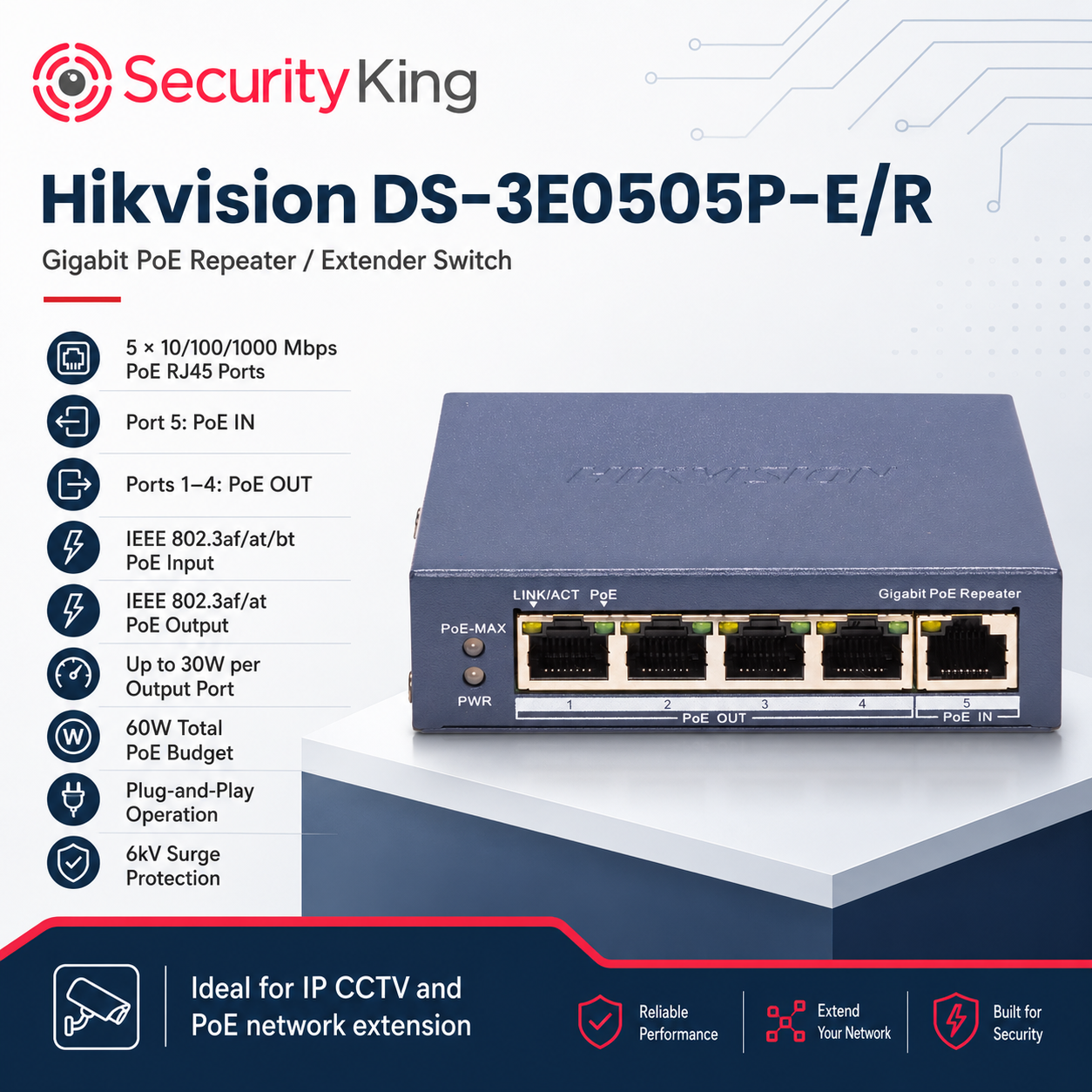

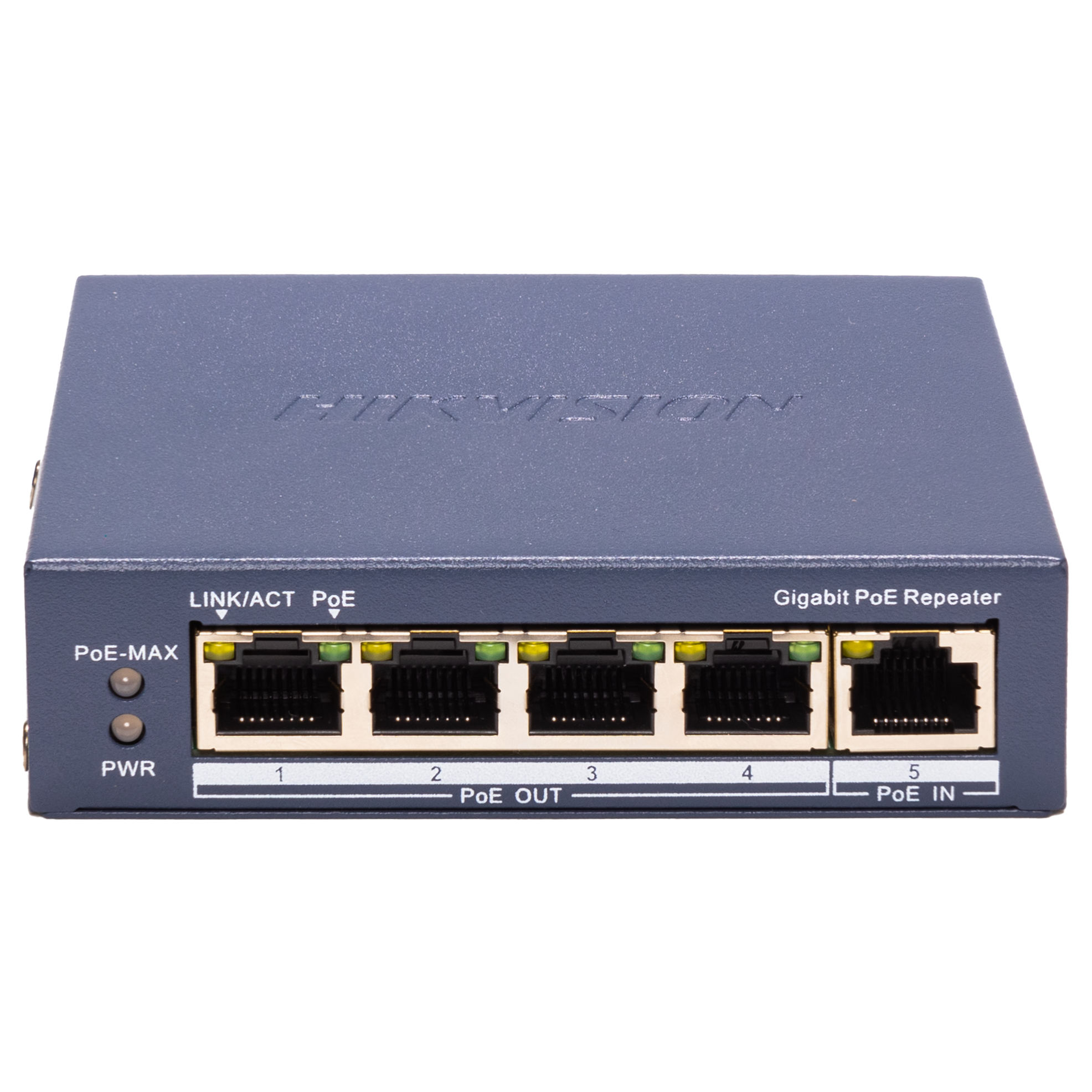

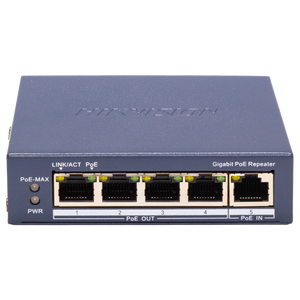

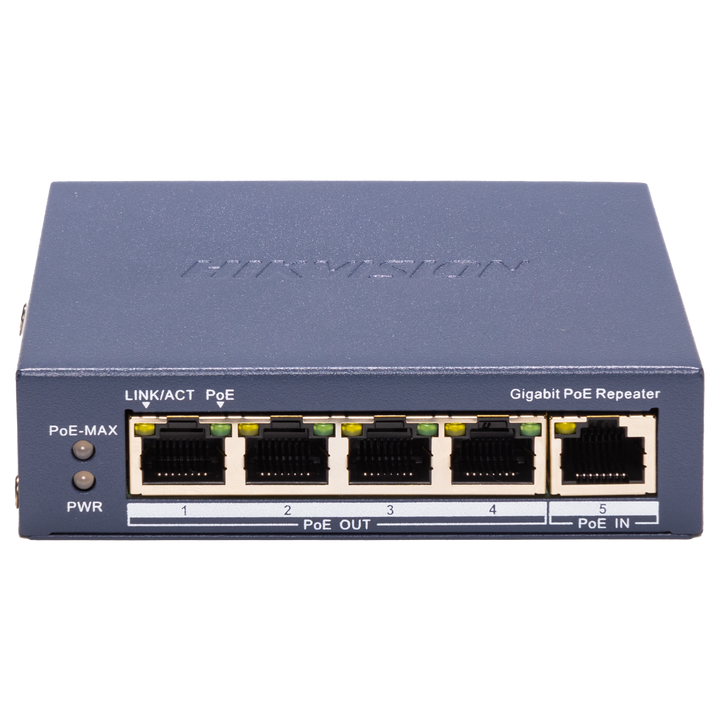

Hikvision DS-3E0505P-E/R 4 Port Gigabit PoE Extender/Repeater Switch
The Hikvision DS-3E0505P-E/R is a compact Gigabit PoE extender switch designed to extend network and power transmission for IP surveillance systems. It allows installers to expand PoE camera networks without requiring a separate power supply at the extender point, making it ideal for CCTV installations where cable runs need to be extended cleanly and efficiently.

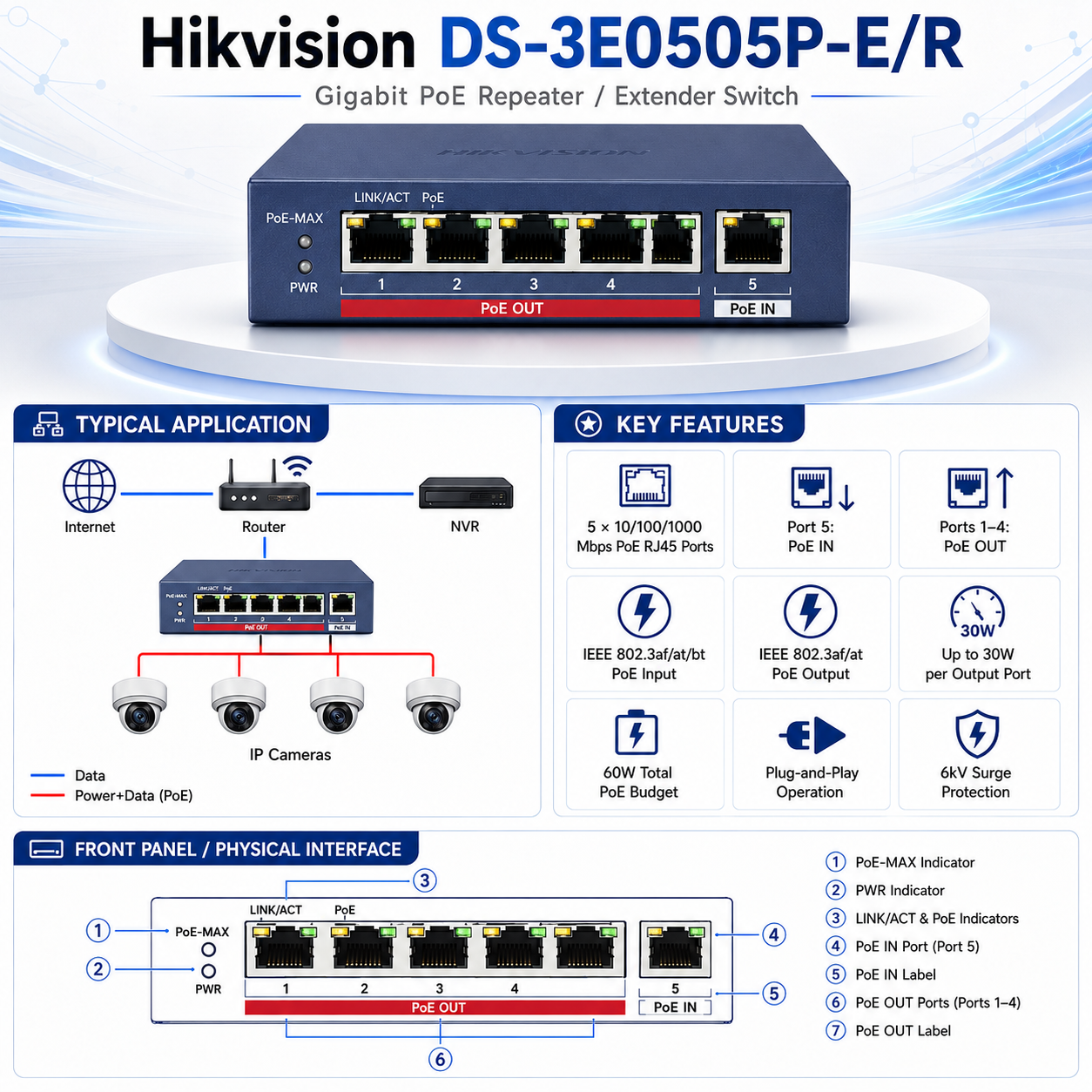

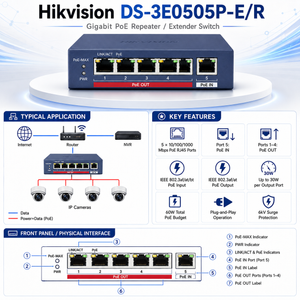

Equipped with five Gigabit PoE RJ45 ports, the DS-3E0505P-E/R features one PoE input port and four PoE output ports. Port 5 receives PoE power and network data, while ports 1 to 4 distribute PoE output to compatible devices such as IP cameras, wireless access points, and other PoE-enabled network equipment.
The switch supports IEEE 802.3af/at/bt on the PoE input side and IEEE 802.3af/at on the output ports. With up to 30W available per output port and a total PoE output budget of up to 60W, it is well suited for professional IP CCTV and security network applications.
With plug-and-play operation, Gigabit data transmission, and built-in 6kV surge protection, the DS-3E0505P-E/R provides a reliable and convenient solution for extending PoE networks in homes, offices, retail stores, warehouses, estates, and commercial surveillance installations.
Key Features
-
Gigabit PoE Extender / Repeater switch
-
5 × 10/100/1000Mbps PoE RJ45 ports
-
1 × PoE IN port: Port 5
-
4 × PoE OUT ports: Ports 1 to 4
-
PoE IN supports IEEE 802.3af/at/bt
-
PoE OUT supports IEEE 802.3af/at
-
Up to 30W output per PoE port
-
Total PoE power budget up to 60W
-
Simultaneous power and data transmission over Ethernet
-
Plug-and-play installation with no configuration required
-
Built-in 6kV surge protection
-
Designed for IP camera and CCTV network extension
-
Compact indoor installation design
-
Ideal for extending PoE range without adding a local power supply
Ideal For
-
IP CCTV camera installations
-
PoE Network Extension
-
Long cable-run camera points
-
Homes and Businesses
-
Retail stores
-
Warehouses and workshops
-
Commercial security systems
-
Network expansion for PoE cameras and access points
Why Choose This PoE Extender?
The Hikvision DS-3E0505P-E/R is a practical solution for extending PoE camera networks quickly and professionally. With Gigabit ports, PoE input and output support, a 60W PoE budget, surge protection, and simple plug-and-play operation, it helps installers expand CCTV systems while keeping wiring neat, reliable, and efficient.
