EZVIZ T36 Smart Home Wi-Fi Relay

EZVIZ CS-T36 Smart Home Wi-Fi Relay

Upgrade your home lighting with the EZVIZ CS-T36 Smart Home Wi-Fi Relay, a compact and intelligent relay designed to bring convenient remote control to your existing electrical lighting system. With the EZVIZ app, you can switch lights on or off, check their status, create schedules, and manage your home lighting from almost anywhere.

The CS-T36 supports two independent channels, allowing you to control two separate circuits from one compact device. Whether you want to automate indoor lights, improve convenience, or reduce unnecessary power usage, this smart relay offers a practical and cost-effective smart home upgrade.

Built with power monitoring, overload protection, and device temperature protection, the EZVIZ CS-T36 helps provide safer and more efficient control over connected lighting circuits. It also supports voice control through compatible Google Assistant and Amazon Alexa devices, making everyday lighting control even easier.

Key Features

• Smart Wi-Fi relay for lighting control

• Remote control via the EZVIZ app

• Two-channel circuit control

• Time scheduling for automated routines

• Power usage monitoring

• Overload protection

• Device temperature protection

• Voice control support with Google Assistant and Amazon Alexa

• Compact design for discreet installation

• 2.4GHz Wi-Fi connectivity

Technical Specifications

• Model: CS-T36

• Product Type: Smart Home Wi-Fi Relay

• Wi-Fi Frequency: 2.4GHz

• Wi-Fi Standard: IEEE802.11 b/g/n

• Channels: 2 Channels

• Power Supply: 100–240VAC, 50/60Hz

• Power Consumption: ≤1.5W

• Dimensions: 38.4 × 43.8 × 18.5mm

• Net Weight: 31.2g

• Colour: Black

• Operating Temperature: -10°C to 45°C

• Certifications: CE, UKCA, REACH, WEEE, RoHS

Ideal For

• Smart home lighting upgrades

• Remote light control

• Scheduled lighting automation

• Energy-conscious homes

• Convenient hands-free lighting control

Package Includes

• 1 × EZVIZ T36 Wi-Fi Relay

• 1 × Pin

• 1 × Regulatory Information

• 1 × Quick Start Guide

Note: Installation should be carried out by a qualified electrician or professional installer.

Forget the days of getting off your bed to turn off the lights, or hurrying back home when a light was left on. Add the T36 to your existing system and you can simply tap on your smartphone to control and schedule your lights. Schedule your lights wherever you want, and enjoy hands-free control at home with the right accessories. This Wi-Fi relay also boasts useful safety designs, protecting your home from potential electrical hazards!

Easy lighting control, even from afar

With the Wi-Fi relay, your phone is now your lighting control center. Whether you left for work in a hurry and didn’t turn off all the lights, or need to turn off your child’s lamp without waking them, the T36 provides the convenience you need. It allows you to view the status and control your lights, requiring just few taps on your smartphone to make adjustments.

Time scheduling is a breeze

The T36 simplifies your daily routines, too. If you want a cozy, well-lit home when you get back from work, or choose to conserve energy during specific hours, just set up time slots tailored to your own needs.

Go hands-free with voice controls

Your lights can even “listen” to your commands when your hands are busy. By connecting the Wi-Fi relay to your existing voice assistant, you can enable the lights by saying “Hey Google” or “Alexa.”

Monitor power usage for a greener lifestyle

It’s important to know how much power your lights regularly consume, and now it’s easy to manage monthly utility bills and reduce your carbon footprint, too. The T36 tracks and visualizes electrical statistics for you to review on your phone.

One relay, dual circuits

If you need to upgrade your lighting system without complex controls, the T36 is a wise, cost-effective choice. It’s capable of managing two electrical circuits at the same time, while giving you separate control options.

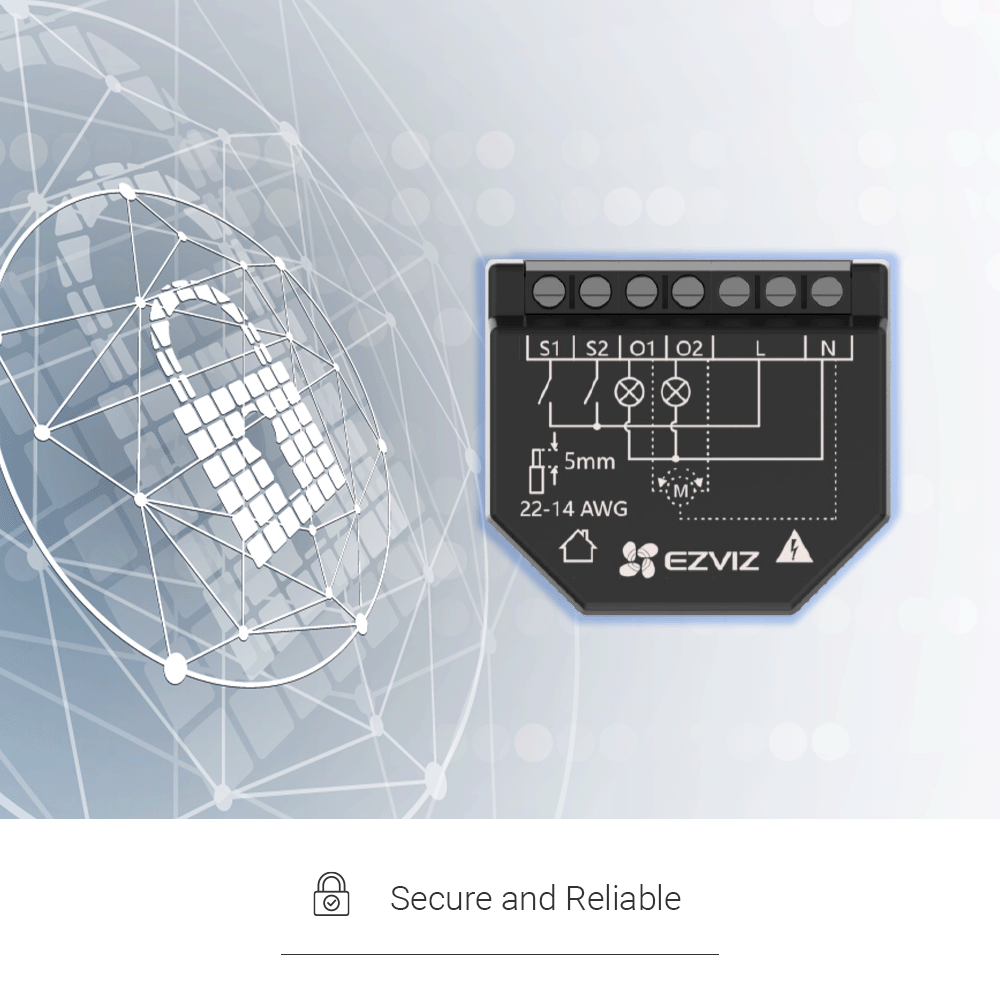

A safer home is our priority

The T36 can automatically turn off lights and outlets to protect your home from damage in a power surge. It will send you prompt alerts whenever such a hazards occur.

Overload Protection

Real-time Mobile Alerts
