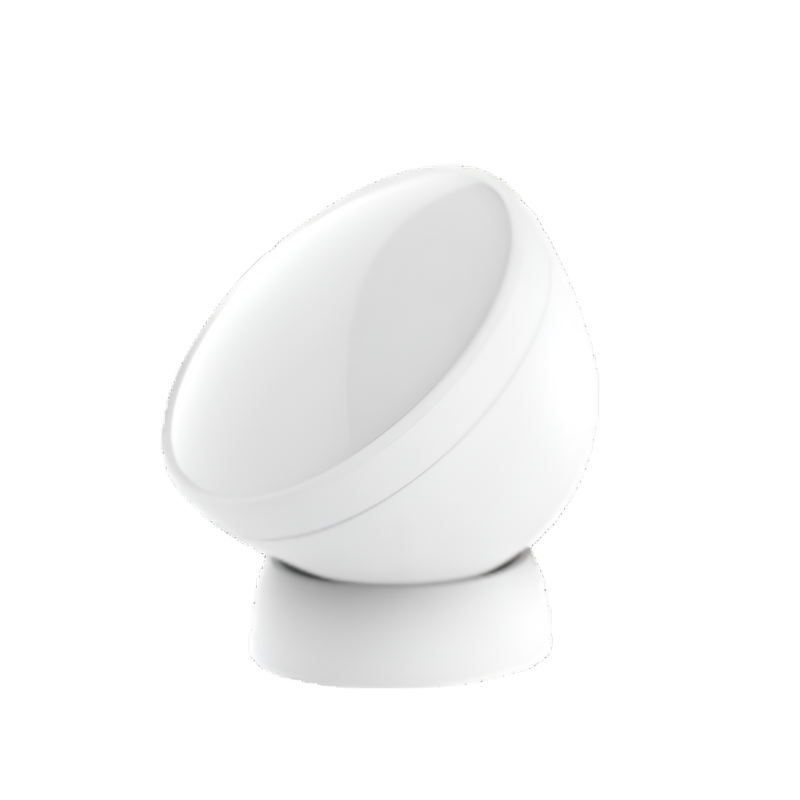

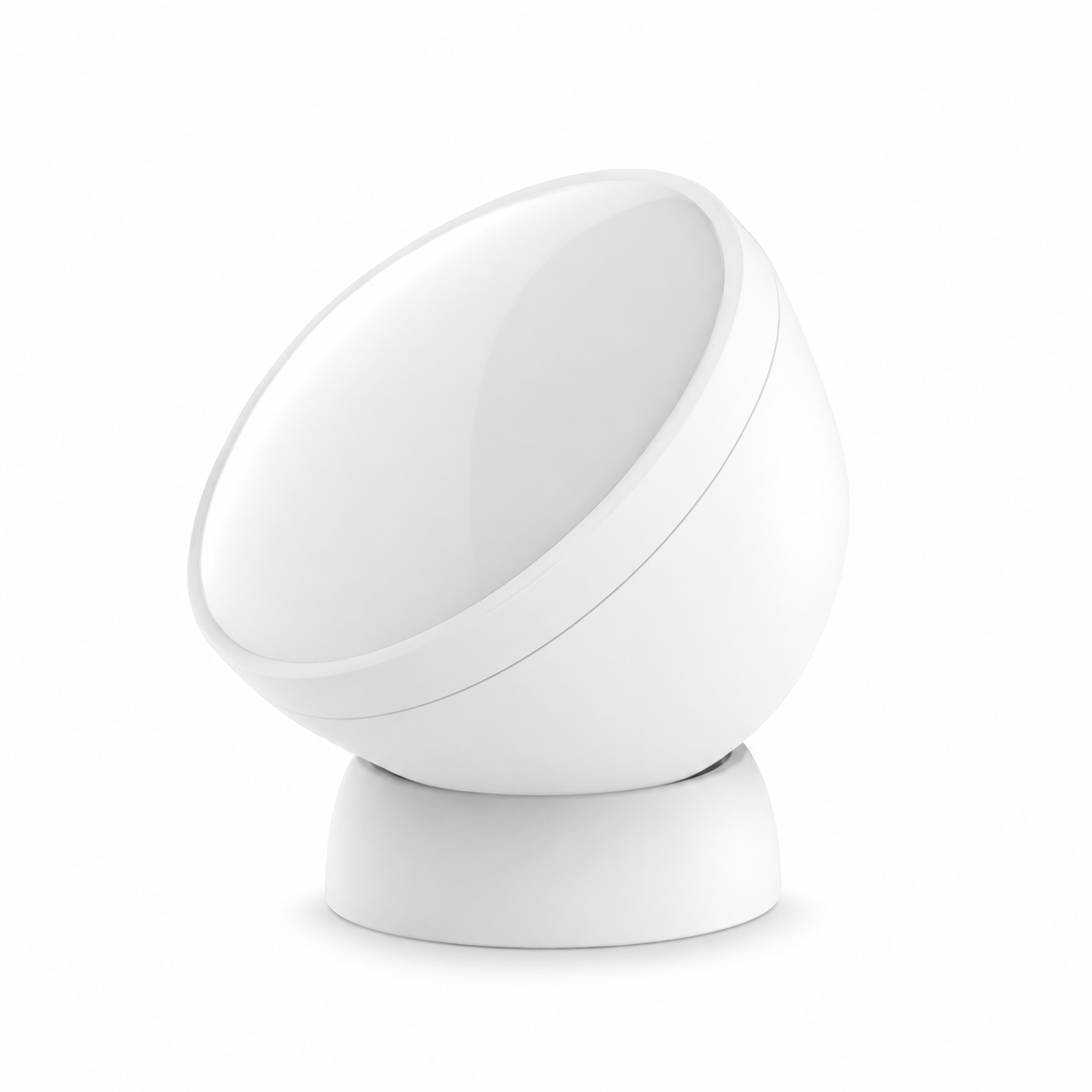

EZVIZ T1C PIR Motion Sensor
The EZVIZ T1C PIR Motion Sensor is a compact wireless motion detector designed to add smart movement detection to your EZVIZ home security system. Ideal for homes, apartments, offices, shops, storerooms, and small business spaces, it helps monitor indoor activity and sends instant alerts through the EZVIZ app when motion is detected.
Using passive infrared detection technology, the T1C detects human movement up to 7 metres away with a wide 90° horizontal and 90° vertical detection angle. It connects to a compatible EZVIZ A3 Home Gateway via Zigbee 3.0, providing reliable low-power wireless communication for smart home protection.
The sensor is small, discreet, and easy to install using its adhesive magnetic mounting base. It supports flexible wall or ceiling installation and can be adjusted for the best detection angle. The included pet shield can also help fine-tune the detection area to reduce unnecessary alerts from pets when installed correctly.
Key Features
-
Wireless PIR motion sensor for EZVIZ smart security systems
-
Model: EZVIZ T1C / CS-T1C-A0-BG
-
Passive infrared motion detection
-
Detection distance up to 7m
-
90° horizontal and 90° vertical detection angle
-
Requires compatible EZVIZ A3 Home Gateway
-
Zigbee 3.0 wireless communication
-
Sends instant mobile alerts via the EZVIZ app
-
Compact, discreet indoor design
-
Magnetic base with adhesive installation
-
Supports wall mounting and ceiling flip-over installation
-
Pet shield included to help reduce pet-related false alarms
-
Low battery reminder support
-
Anti-tamper alarm support
-
Battery-powered operation
-
Uses 1 × CR2450 battery
-
Battery life up to 1 year in high-performance mode
-
Battery life up to 2 years in energy-saving mode
-
Recommended wall installation height: 1.8m to 2.5m
-
Operating temperature: -10°C to 55°C
-
Main body size: Ø43.5 × 32.0mm
-
Base size: Ø29.0 × 9.5mm
What’s in the Box
Ideal For
Perfect for bedrooms, lounges, passages, offices, storerooms, shops, reception areas, rental properties, and indoor spaces where reliable motion detection, instant app alerts, and easy wireless installation are required.
* Requires using with the EZVIZ Home Gateway A3
Know when there’s activity at home
Get notified immediately when someone sets foot in your room. EZVIZ’s new T1C motion sensor uses passive infrared (PIR) technology to detect human movement, and can send alerts right to your smartphone. The T1C Sensor connects to your EZVIZ Home Gateway, and is mini-sized to fit onto any wall or corner for an easy DIY security solution.
It goes anywhere to cover every corner
Install the PIR sensor anywhere you need protection and rotate it a full 360 degrees to find the best detection angle.
You can also fine-tune its detection coverage using the pet shield to partially cover the sensor, so it only alerts about human activities, rather than every time your pet runs through the room.
Easy integration with your smart home
Connect your sensor to the Home Gateway and link it with your EZVIZ cameras² for enhanced protection – all via the EZVIZ App. If you use a local storage card or have subscribed to EZVIZ CloudPlay, the camera can begin auto-recording for 5 seconds whenever the sensor detects an activity
