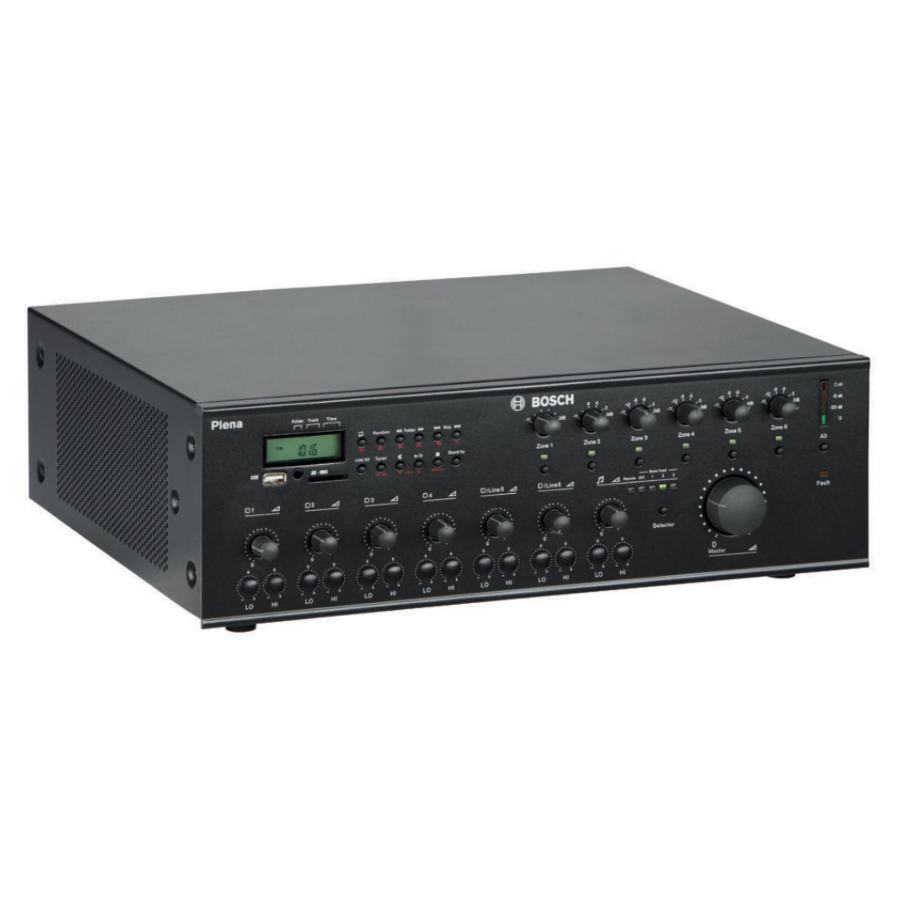

Bosch Plena PLN-6AIO240 All-in-one amplifier, 6-zone, 240W

Available:
In stock

Vendor:SecurityKing

SKU: B-PLN6A

Category: Bosch

Tags: intercom, intercom kit, intercoms

PLN-6AIO240 The Bosch PLN-6AIO240 is an all in one background music and paging system consisting of a240 watt amplifier with integral FM/AM tuner and an MP3 player which plays audio...

Regular price R 9,999.00 Sale R 18,999.00

Quantity:

PLN-6AIO240

The Bosch PLN-6AIO240 is an all in one background music and paging system consisting of a240 watt amplifier with integral FM/AM tuner and an MP3 player which plays audio files from an SD card or USB device. Suitable only for 100 volt line sound systems.

There are 3 auxiliary music inputs, 4 mic inputs and a further 2 combination inputs switchable between microphone and line level.

6 output zones are available for paging and up to 6 optional call stations can be connected in a loop through arrangement.

Key Features:

  • All‑in‑One solution for background music and paging
  • Six‑zone paging system
  • Built‑in AM/FM tuner with presets
  • MP3 player for USB device and SD card
  • Optional Call Station and Wall Panel with local audio source and remote control

 The Plena All‑in‑One System is a six‑zone 240 W background music and paging system, which consists of the Plena All‑in‑One Unit, an optional remote Wall Panel, and one or more Call Stations. It is a cost effective Public Address system for small to medium sized venues that require an easy‑to‑use out‑of‑the‑box solution.

The Plena All‑in‑One Unit can provide hours of uninterrupted music from USB or SD flash memory. The unit also has a built in AM/FM tuner with presets. To ensure for optimum performance, the All‑in‑One Unit has no moving parts, such as hard drives that can fail or wear out. It is compatible with SD, SDHC and MMC cards, and USB memory sticks. The unit is supplied with an IR remote control for controlling the music source. To enhance the performance of the public address system, the following optional products can be connected to the All‑in‑One Unit:

  • One or more Call Stations for six‑zones and all‑call, so that calls can be made to any combination of zones or all zones. A maximum of six Call Stations can be connected in a loop‑through arrangement to the same All‑in‑One Unit.
  • A Wall Panel for enabling control of the background music from a remote location; the Wall Panel even allows a microphone or portable music player to be connected to the system.
  • An additional power amplifier, so that music can be heard in one set of zones while calls can be made to another set of zones.

 The All‑in‑One Unit is a 3 U high 19” wide rack‑mount unit. The unit is supplied with detachable rack‑mount brackets so that it can be used on a tabletop or installed in a rack.

Microphone and line inputs

The All‑in‑One Unit has six inputs that can be switched between microphone and line level sensitivity. Input 1 also accepts an optional all‑call Call Station (PLE-1CS or PLE-1SCS). The inputs are balanced but can also be used unbalanced. Phantom power can be switched on to provide power to condenser microphones. The inputs can either be mixed or can be configured with different priority arrangements (serial/blocking/overriding), based on a signal detection at each input.

Call station input

A maximum of six optional Call Stations can be connected in a loop‑through arrangement to the same All‑in‑One Unit. The PLN-6CS Call Station has a limiter and configurable sensitivity, a speech filter, and an attention chime.

Music inputs

The unit has three music inputs and an internal music source. The internal music source plays MP3 files from an SD/MMC card or USB device with a capacity of up to 32 GB. The player will automatically search and play all playable MP3 files and has repeat and random play modes. The following formats are supported: MP3 files with bit‑rates from 32 kbit/s to 320 kbit/s, mono/ stereo/joint‑stereo, and continuous bit‑rates (CBR) as well as variable bit‑rate (VBR). If a microphone signal receives priority, the music is either muted or attenuated to an adjustable level (music ducking).

FM/AM Tuner

The digitally controlled tuner uses a frequency synthesizer and has presets to store favorite radio stations.

Output power

The built‑in 240 W power amplifier of the All‑in‑One Unit makes this a complete single-channel audio system for music distribution and paging. To enable two‑channel operation, an external power amplifier can be connected to the All‑in‑One Unit.

 Zone outputs

The unit has six zone outputs for connection to different zones. The volume level of each zone can be adjusted separately.
