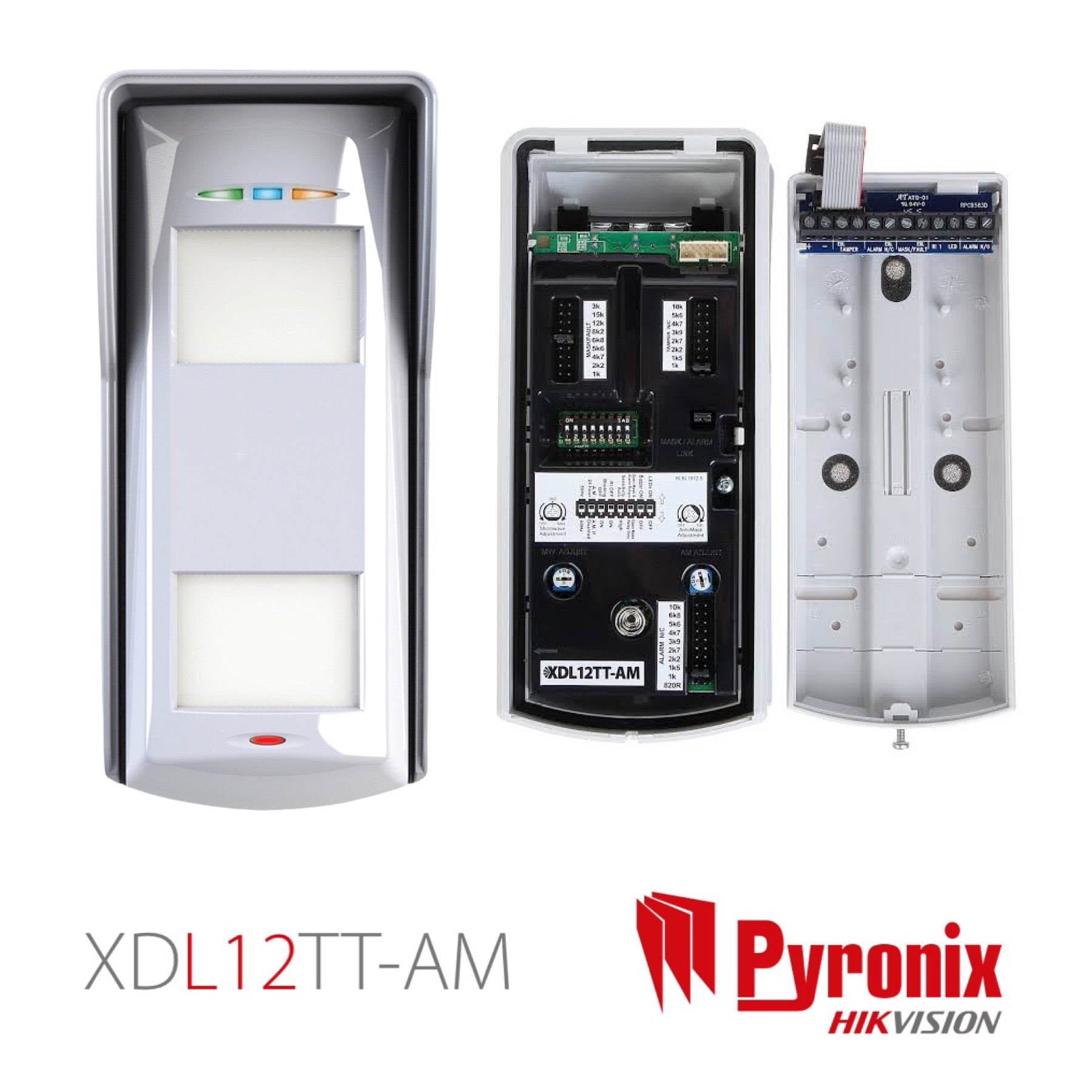

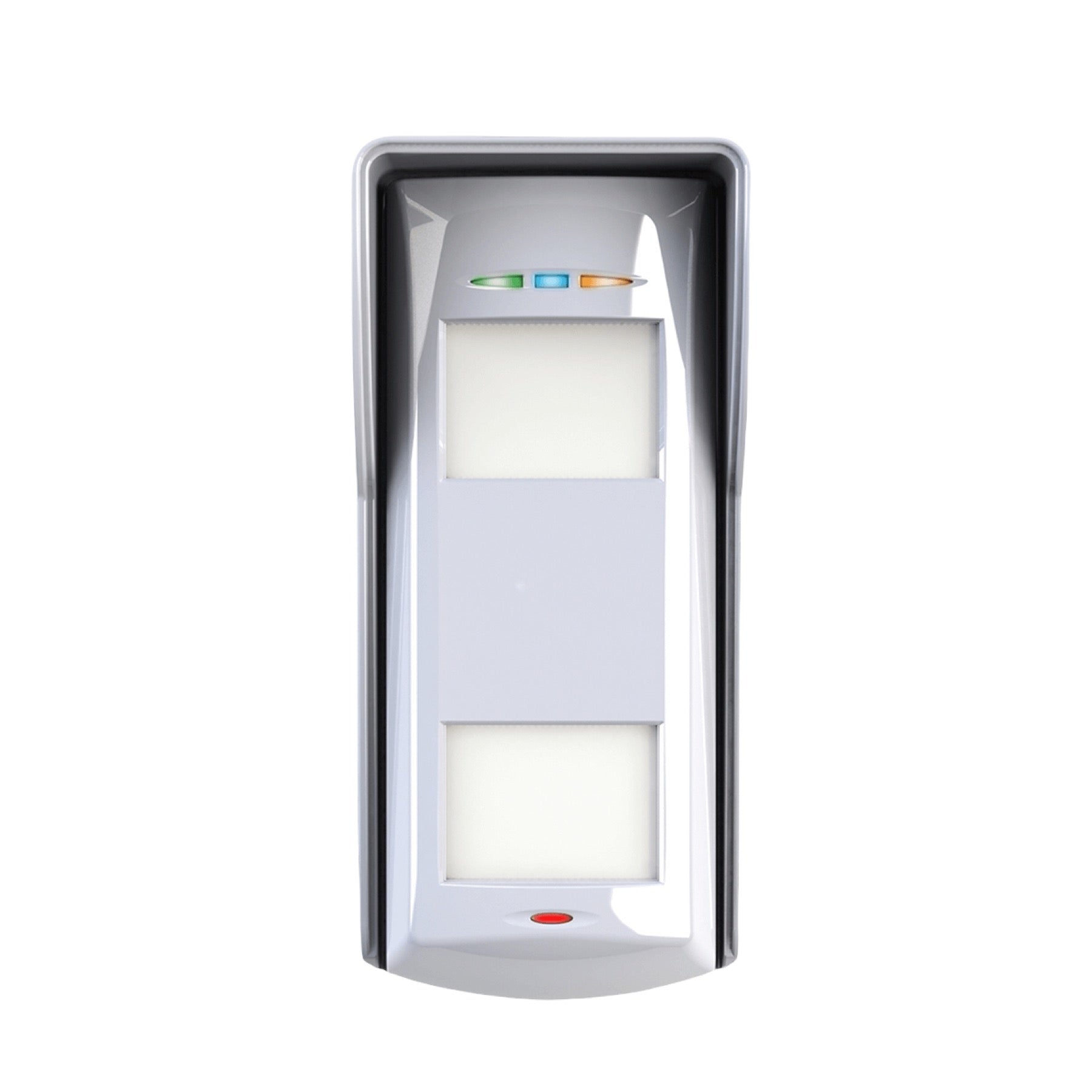

Pyronix Outdoor 90 Degree Motion Detector PIR (Wired)

XDL12TT-AM

Pyronix Outdoor 90 Degree Wired Motion Detector.

Key Features:

• Tri-Signal Detection

• Dual-Vision Pet Immune

• Anti-Masking

• Anti-Blocking

• Anti-Sway Analytics

• Blue Wave Technology (BWT)

• Multi-configurations

• Weatherproof

• Heavy duty design

• Adaptable coverage

• Flexible installation

• Easy setup

NB: This is a Hard-Wired and not a Wireless Beam. It is compatible with most wired Alarm Panels/Systems.

Low mount, pet-tolerant external detector, featuring Grade 3 and 4 technologies

Consisting of two independent passive infrared (PIR) sensors and one microwave sensor in one common housing, Tri-Technology (TT) utilises Tri-Signal Detection Logic whereby to identify the presence of an intruder, all three sensors need to be activated sequentially in quick succession to create an alarm.

Protect while allowing for pets with Dual-Vision Pet Immune

The two PIRs of the XDL12TT-AM have a dedicated volumetric field of view. The top PIR detects outwards and up, while the bottom PIR detects outwards and down, without either crossing the central horizontal place between them. This setup of non-overlapping PIR sensors alongside Tri-Signal Detection Logic, delivers highly secure sequential detection and increases its tolerance to pet immunity.

Ultimate outdoor performance with Anti-Sway Analytics

An advanced filter that allows the XDL12TT-AM to distinguish between the movement of trees and plants from that of an intruder. It is designed to maintain optimum performance and reduce false alarms in environments with windy weather conditions and swaying vegetation
