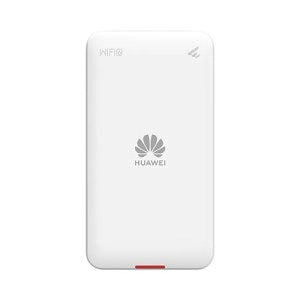

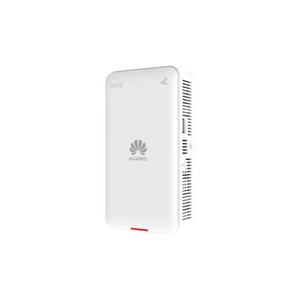

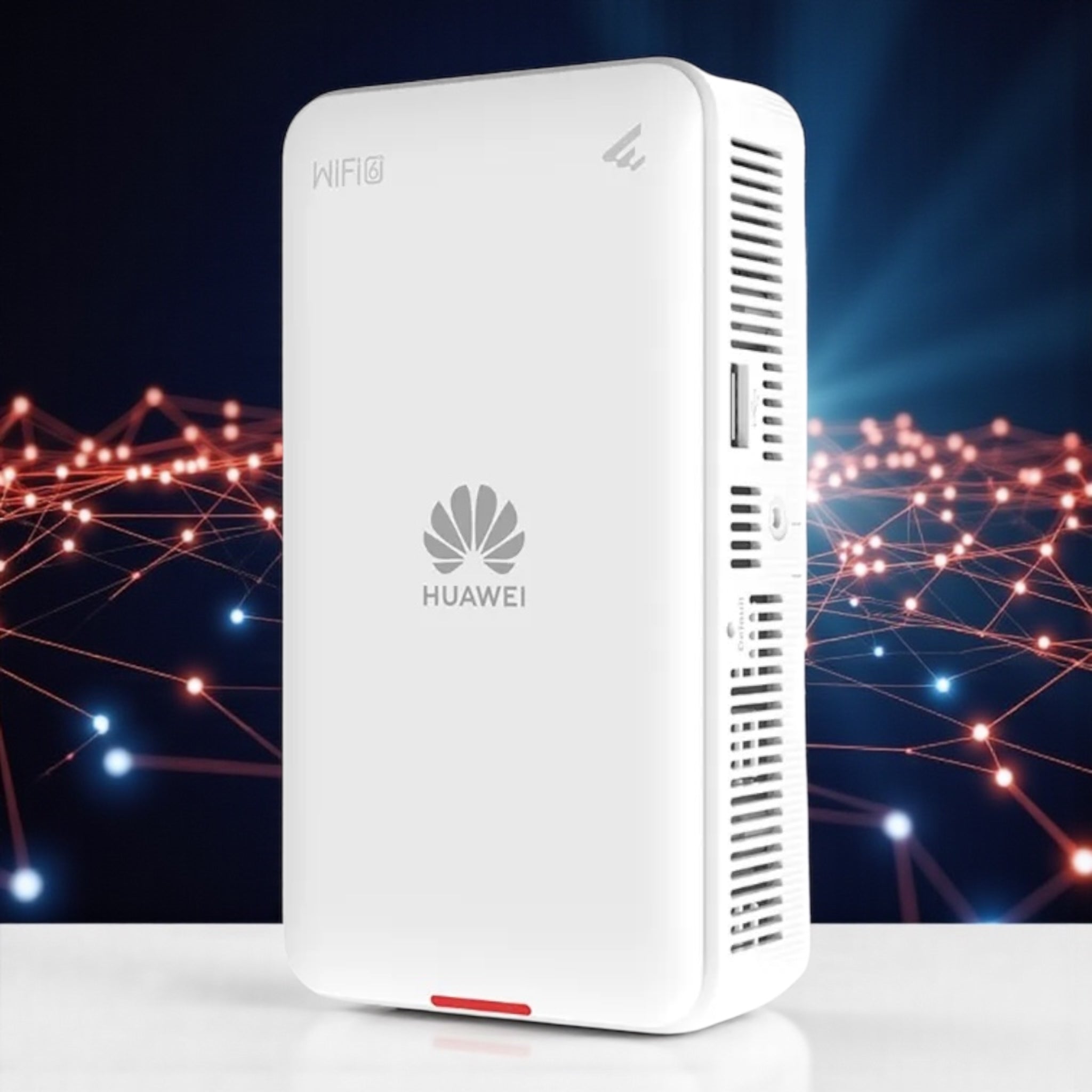

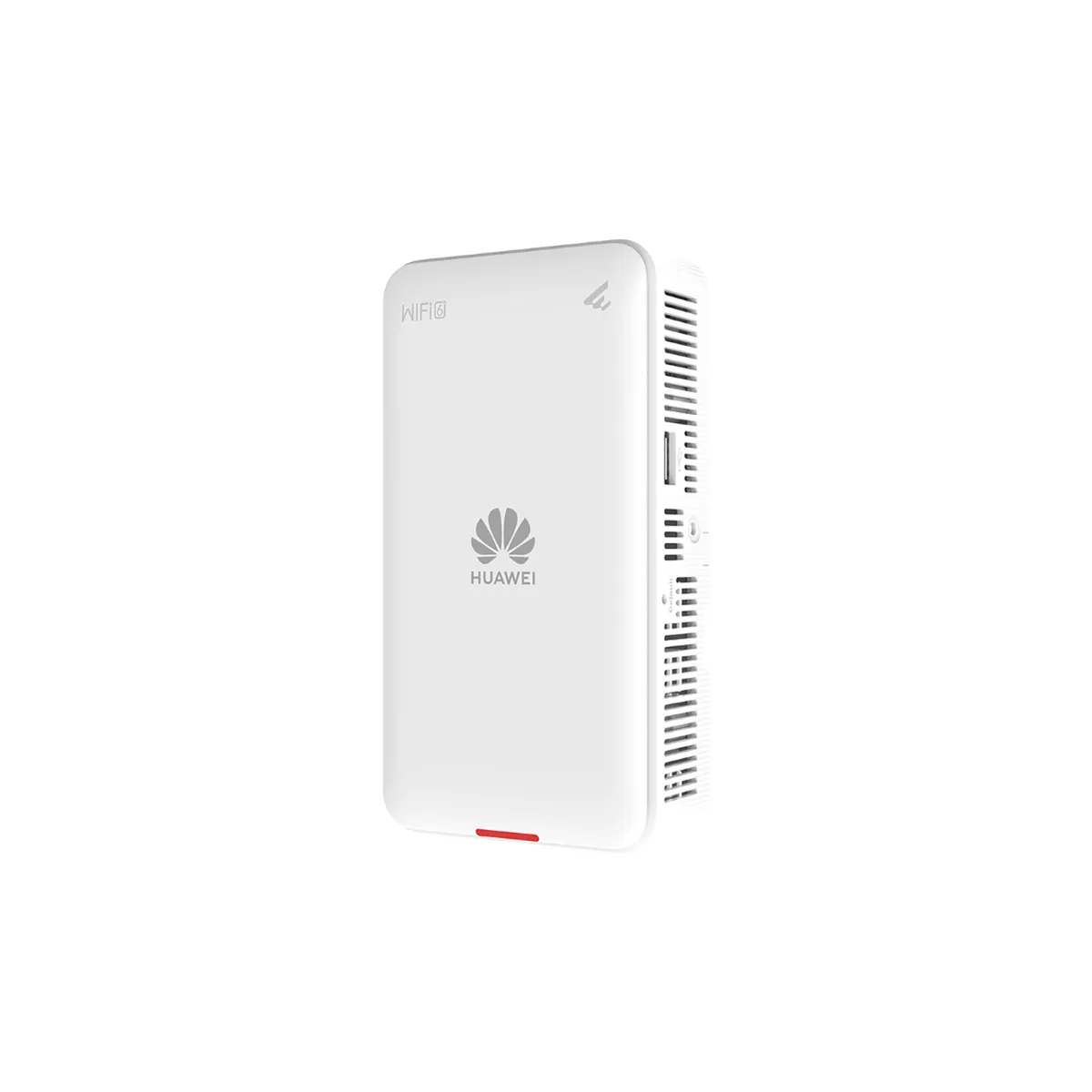

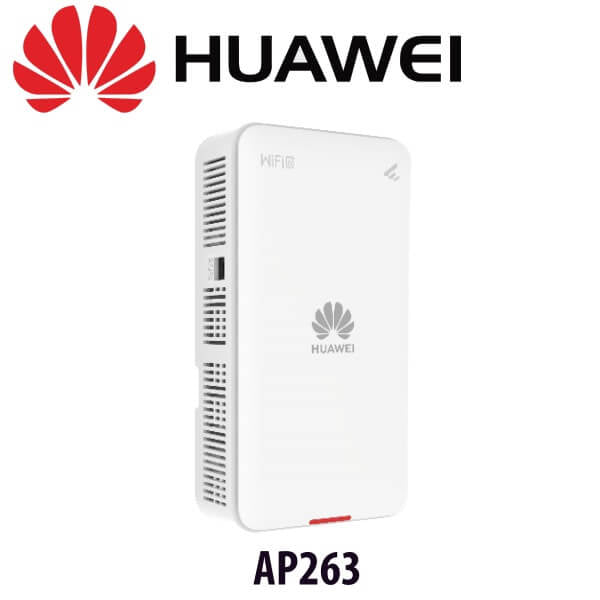

Huawei AP263 Access Point - Wall Mount

Huawei AP263 is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a device rate of up to 2.975 Gbps. This AP features high bandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers' investment. These strengths make the AP263 ideal for indoor coverage scenarios of small and medium-sized enterprise offices, hospitals, and higher education.

• Dual-radio mode: 2.4 GHz (2x2 MIMO) + 5 GHz (2x2 MIMO), achieving rates of up to 575 Mbps and 2.4 Gbps, respectively, and 2.975 Gbps for the device.

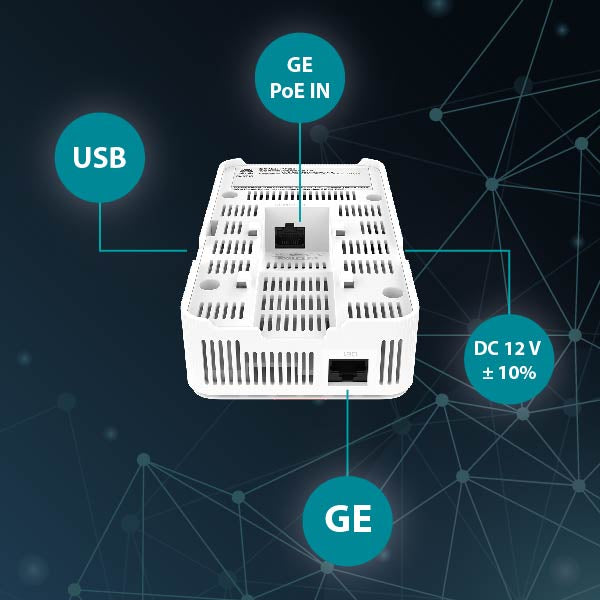

• Uplink: 1 x GE; downlink: 1 x GE.
• Various installation modes for easy deployment, including wall-mounting and plate-mounting.
• Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
• USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
  Supports Bluetooth serial interface-based O&M through built-in Bluetooth and Cloud Campus APP.
• Supports the Fat, Fit, and cloud three working modes.

Wi-Fi 6 (802.11ax) standard

• As the latest generation Wi-Fi standards of IEEE 802.11, 802.11ax improves user experience in high-density access scenarios and supports 2.4 GHz and 5 GHz frequency bands.
• MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
• 1024-QAM modulation, improving data transmission efficiency by 25% compared with 802.11ac (256-QAM).
• OFDMA scheduling enables multiple users to receive and send information at the same time, reducing latency and improving network efficiency.
• Spatial reuse (SR) technology uses basic service set (BSS) coloring to enable APs and STAs to distinguish BSSs, minimizing co-channel interference.
• The target wake time (TWT)* allows APs and STAs to negotiate the sleep and wake time with each other, thereby improving the battery life of the STAs.
