IDS Motion Sense Wireless Sensor – 862-05-674

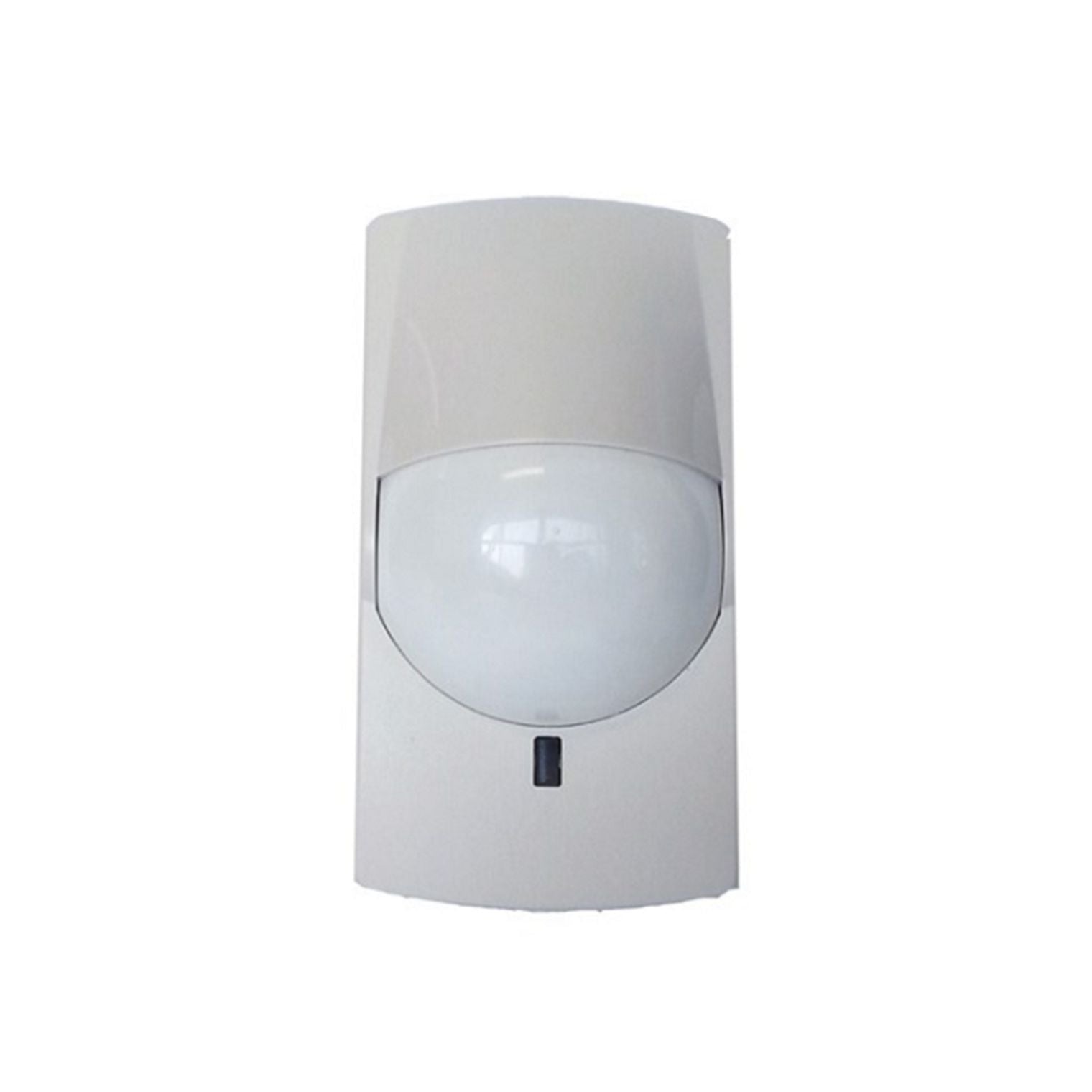

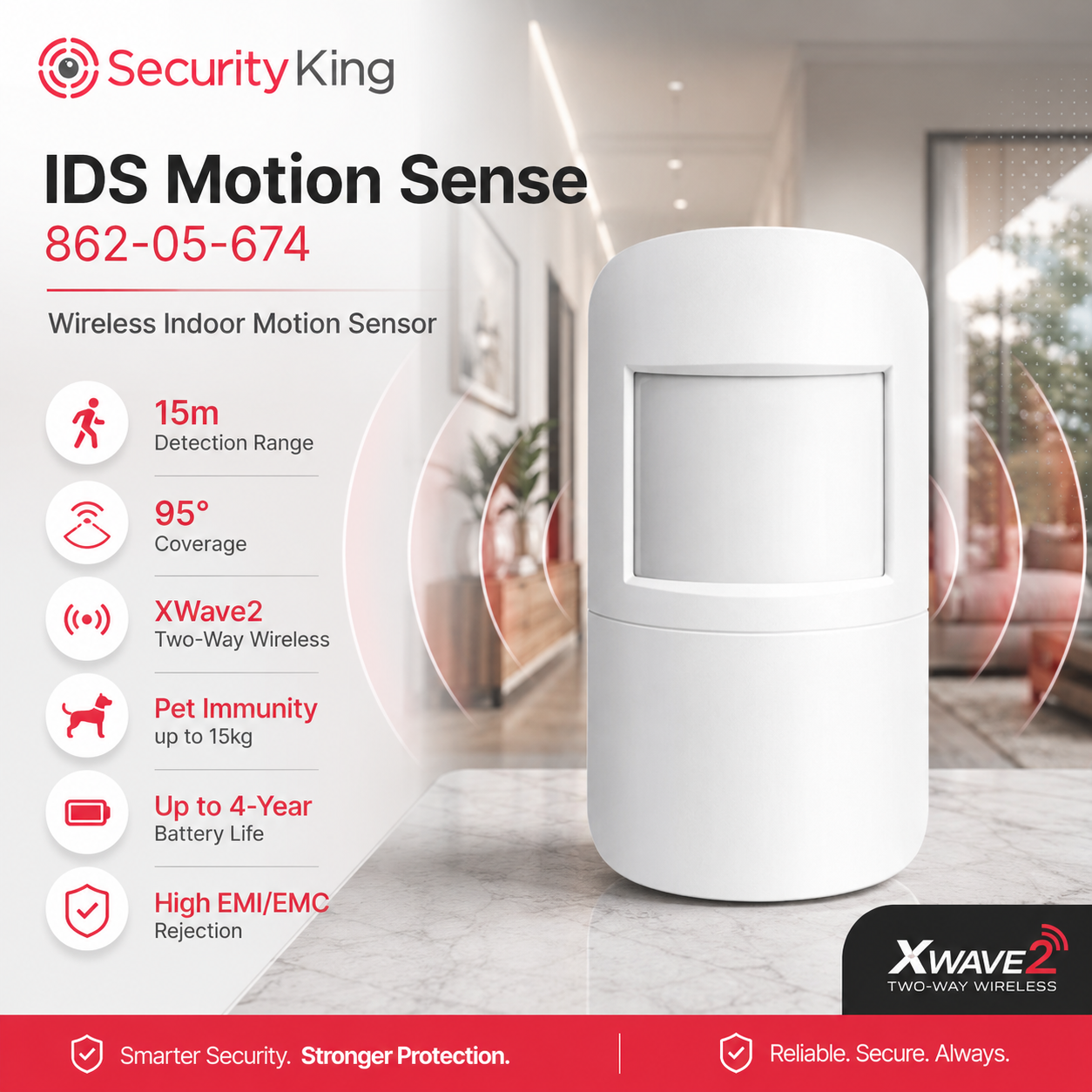

The IDS Motion Sense 862-05-674 is a compact wireless motion detector designed for reliable indoor intrusion detection in homes, offices, shops, apartments, and small business alarm installations. Built for IDS wireless systems, this sensor provides dependable movement detection with the convenience of wireless installation and two-way XWave2 communication.
With a detection range of up to 15m and a 95° coverage angle, the Motion Sense sensor is suitable for protecting rooms, passages, reception areas, offices, lounges, stockrooms, and other indoor spaces. Its compact design makes it easy to position discreetly while still delivering wide-area protection.
The sensor supports two-way wireless transmission on 868MHz XWave2 technology, helping provide stable communication between the device and the alarm system. It also offers a wireless range of up to 600m line-of-sight, making it suitable for a variety of residential and commercial layouts.
Designed for practical day-to-day use, the IDS Motion Sense includes small pet immunity up to 15kg, helping reduce false alarms caused by small animals when installed correctly. It also features high EMI/EMC rejection for improved reliability, selectable LED indication, configurable high or low sensitivity, and an LED disable option for more discreet operation.
Powered by a CR123A 3V lithium battery, the sensor offers up to 4 years of battery life, while front battery access makes maintenance easier for installers and users.
Key Features
-
Wireless indoor motion sensor
-
Product code: 862-05-674
-
Up to 15m detection range
-
95° detection angle
-
Two-way wireless transmission
-
868MHz XWave2 wireless technology
-
Up to 600m line-of-sight wireless range
-
Small pet immunity up to 15kg
-
Up to 4-year battery life
-
Front access to battery for easy maintenance
-
High EMI/EMC rejection
-
Selectable LED indication
-
LED can be disabled
-
Configurable high or low sensitivity
-
Optional swivel bracket support for wall or ceiling mounting
-
Compact and discreet indoor design
Ideal For
-
Home alarm systems
-
Office security
-
Retail shops
-
Apartments and townhouses
-
Stockrooms and storerooms
-
Passages and reception areas
-
Indoor wireless alarm installations
-
Areas requiring pet-friendly motion detection
Technical Specifications
-
Brand: IDS
-
Model: Motion Sense
-
Product Code: 862-05-674
-
Product Type: Wireless Motion Sensor
-
Detection Range: Up to 15m
-
Detection Angle: 95°
-
Wireless Protocol: XWave2 / XWave2 Lite
-
Frequency: 869.575MHz / 869.525MHz
-
Wireless Range: Up to 600m line-of-sight
-
Battery Type: CR123A 3V Lithium
-
Battery Life Expectancy: Up to 4 years
-
Pet Immunity: Up to 15kg
-
Dimensions: 98 × 50 × 48mm
-
Operating Temperature: -10°C to 45°C
-
Certification: ICASA TA-2022/1649
Why Choose the IDS Motion Sense 862-05-674?
The IDS Motion Sense Wireless Sensor is a reliable and practical detector for modern wireless alarm systems. With strong detection coverage, two-way wireless communication, pet immunity, long battery life, and flexible sensitivity settings, it offers dependable indoor protection with quick and convenient installation.
Installation Note
Professional installation is recommended to ensure correct placement, wireless signal strength, sensitivity setup, pet immunity performance, and integration with the compatible IDS alarm system.
