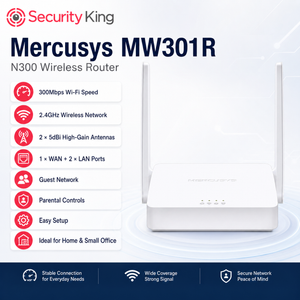

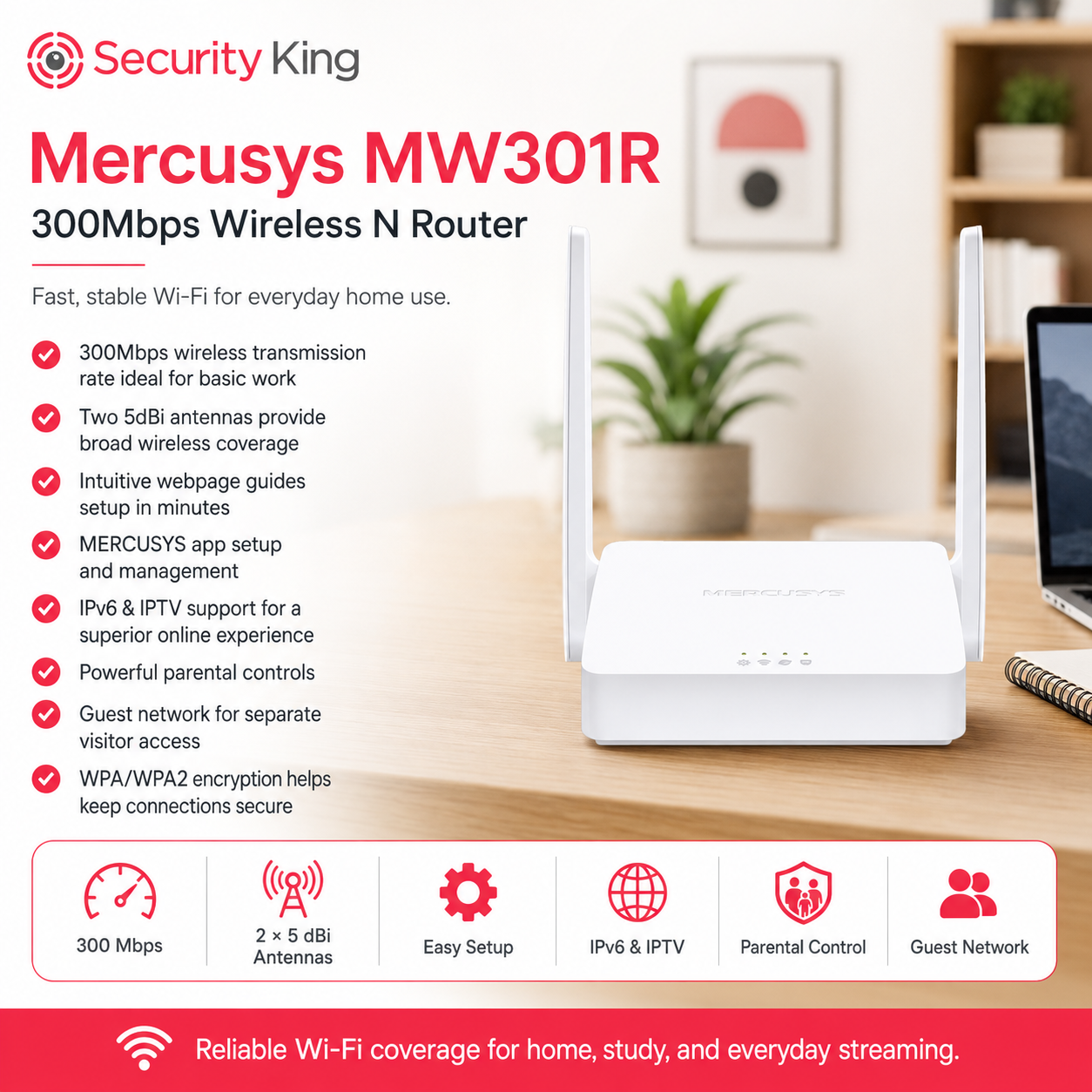

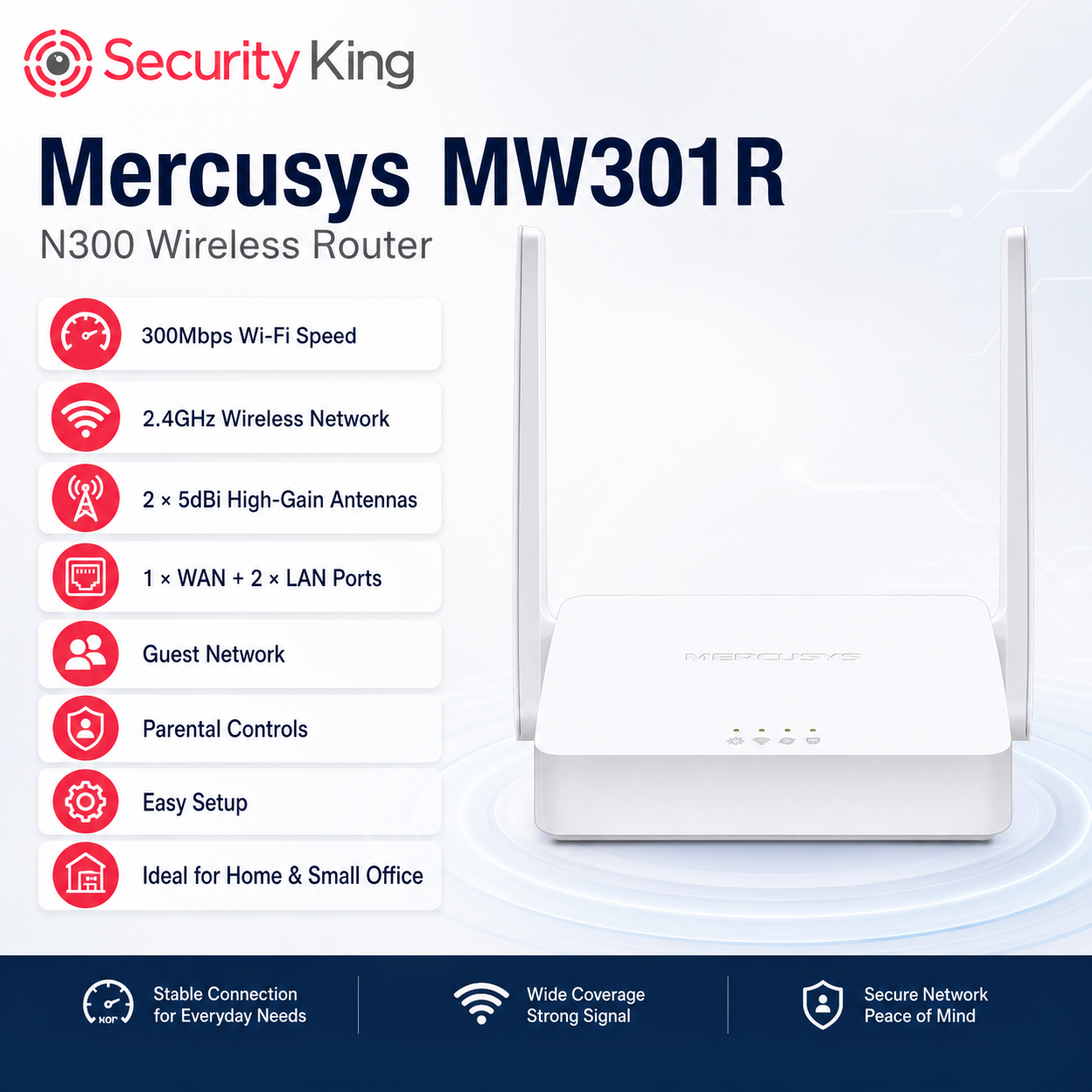

Mercusys MW301R 300Mbps Wireless N Router

Mercusys MW301R N300 Wireless Router

The Mercusys MW301R N300 Wireless Router is a compact and affordable Wi-Fi router designed for everyday home and small office internet use. With wireless speeds of up to 300Mbps on the 2.4GHz band, it provides stable connectivity for browsing, messaging, online learning, video streaming, email, social media, and general internet access.

Equipped with two powerful 5dBi fixed omni-directional antennas, the MW301R helps deliver broad wireless coverage and improved signal strength across your space. Its simple setup process allows users to get connected quickly using either the MERCUSYS app or an intuitive web interface, making it easy to configure even without advanced networking knowledge.

The MW301R includes useful network management features such as parental controls, access control, guest network support, IPv6 compatibility, IPTV support, and WPA/WPA2 wireless encryption to help keep your connection secure. With one WAN port and two LAN ports, it also allows wired connection for devices such as desktop PCs, smart TVs, DVRs, printers, and network switches.

Key Features

• N300 wireless router for home and small office use

• Wireless speeds up to 300Mbps

• 2.4GHz Wi-Fi coverage

• 2 × 5dBi fixed omni-directional antennas

• Easy setup via MERCUSYS app or web interface

• Parental control support

• Guest network support

• WPA-PSK / WPA2-PSK wireless security

• IPv4 and IPv6 support

• IPTV support

• WDS bridge function

• Access control and local/remote management

• 1 × 10/100Mbps WAN port

• 2 × 10/100Mbps LAN ports

• Compact desktop design

Ideal For

• Homes and apartments

• Small offices

• Basic internet browsing

• Email and social media

• Online learning

• Video streaming

• Smart TVs and desktop PCs

• Entry-level Wi-Fi network setups

Technical Specifications

• Brand: Mercusys

• Model: MW301R

• Wi-Fi Class: N300

• Wireless Standards: IEEE 802.11n/g/b

• Frequency: 2.4GHz

• Wi-Fi Speed: Up to 300Mbps

• Antennas: 2 × 5dBi fixed omni-directional antennas

• Ports: 1 × 10/100Mbps WAN, 2 × 10/100Mbps LAN

• Button: Reset

• Wireless Security: WPA-PSK / WPA2-PSK

• WAN Type: Dynamic IP, Static IP, PPPoE, L2TP, PPTP

• Protocols: IPv4, IPv6

• Power Supply: 5VDC / 0.6A

• Dimensions: 114 × 94 × 26mm

Package Includes

• 1 × Mercusys MW301R N300 Wireless Router

• 1 × Power Adapter

• 1 × Ethernet Cable

• 1 × Quick Installation Guide

Why Choose the Mercusys MW301R?

The Mercusys MW301R is a simple, reliable, and cost-effective router for users who need stable basic Wi-Fi without unnecessary complexity. With 300Mbps wireless speed, dual antennas, easy setup, and practical security and management features, it is a strong entry-level choice for everyday internet connectivity.

Note: Actual wireless speed and coverage may vary depending on internet service provider speed, wall thickness, building layout, interference, connected device capability, and network conditions.
