DS-QAE0A120G1-VB6
120W 6-Zone Analog Amplifier
Deliver clear, reliable announcements to every corner of your building with the Hikvision DS-QAE0A120G1-VB6, a professional 120 W, 6-zone analog amplifier designed for modern public address and voice evacuation systems.

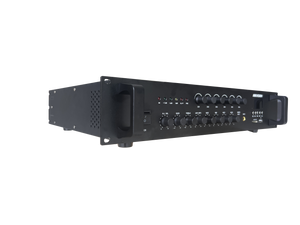

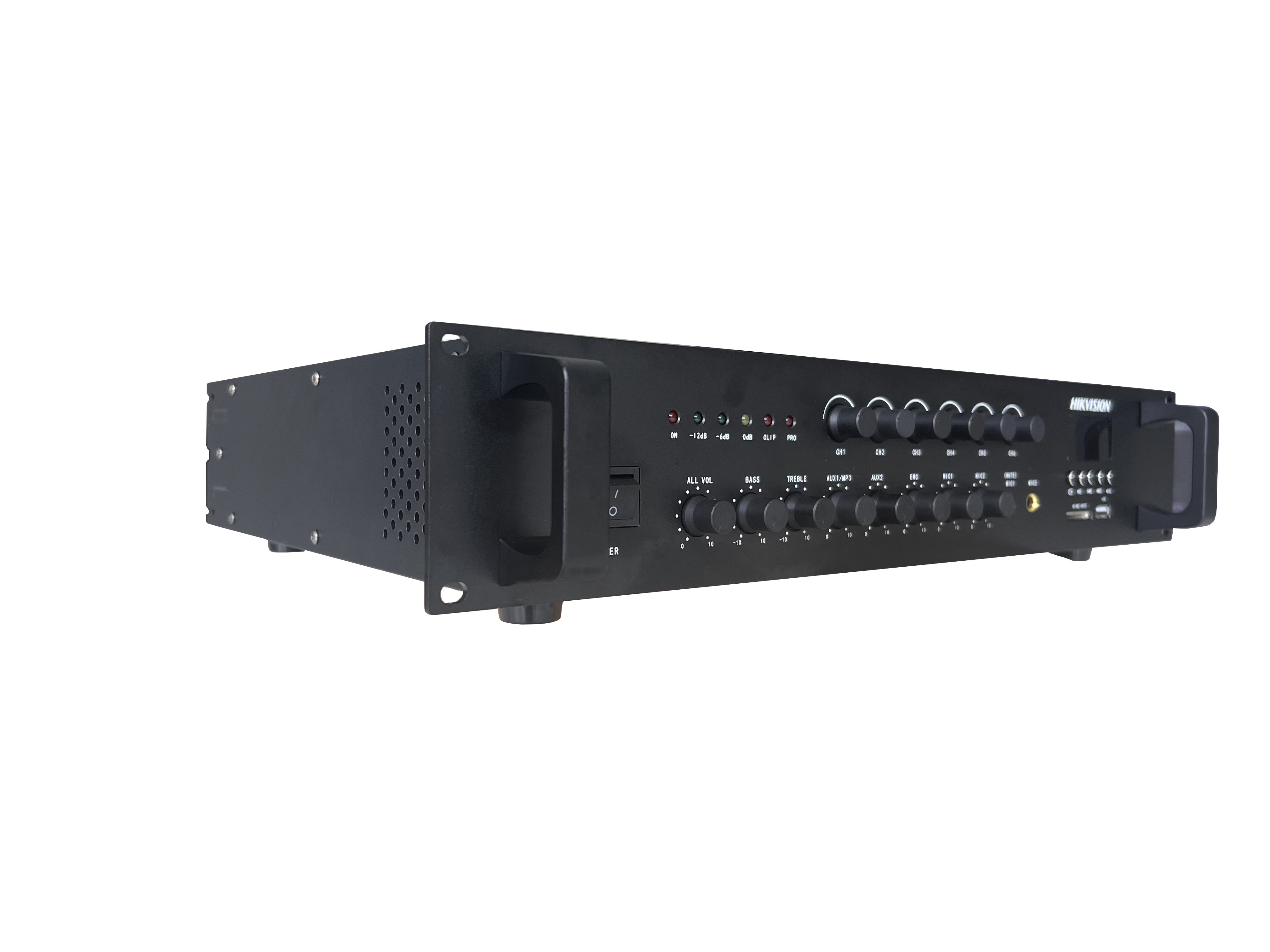

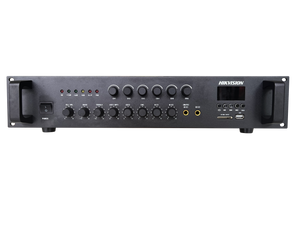

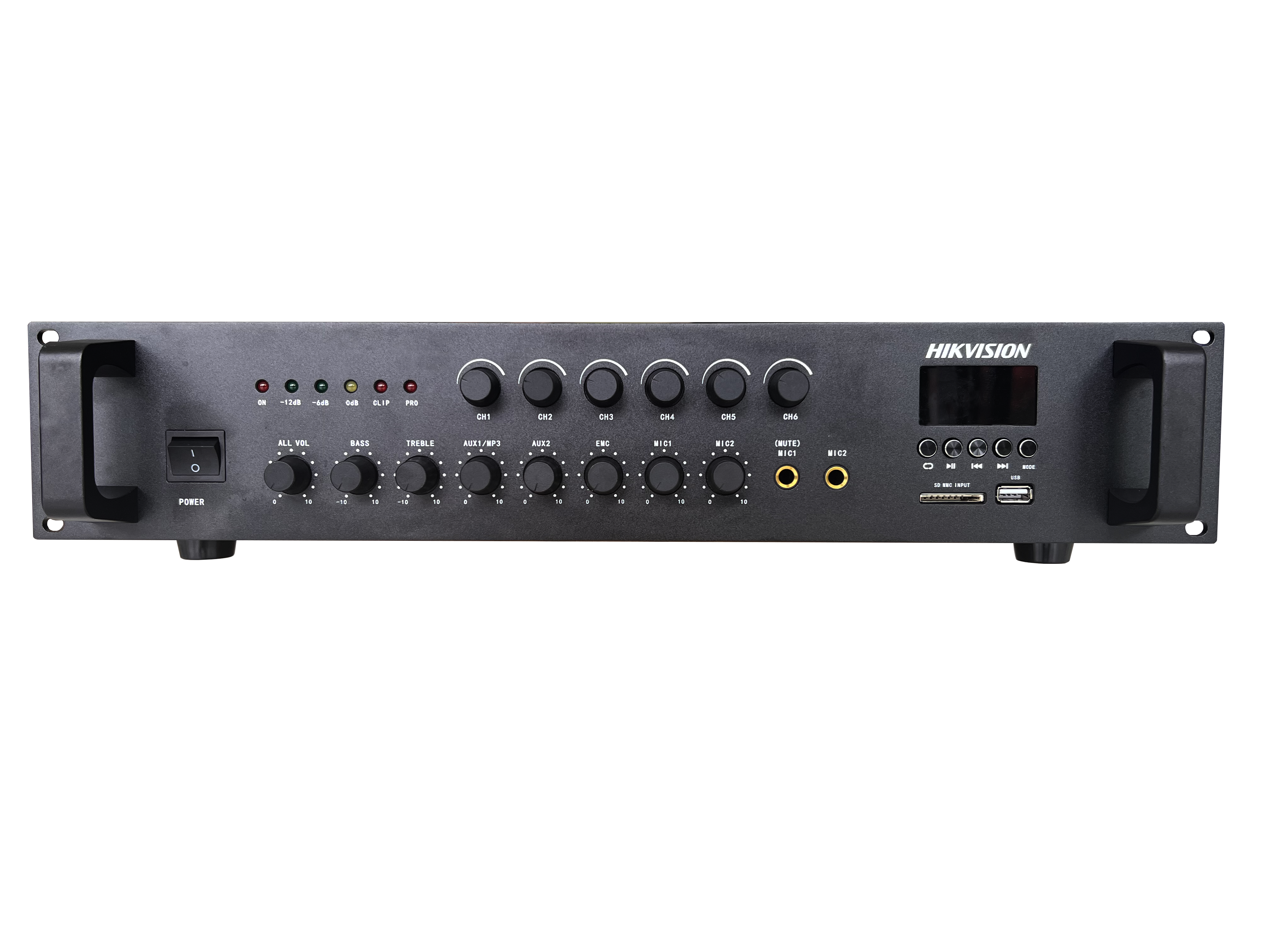

This compact 1U, rack-mountable unit combines power and flexibility: drive up to six independent zones with individual volume control, while feeding background music, paging, or emergency messages exactly where you need them.

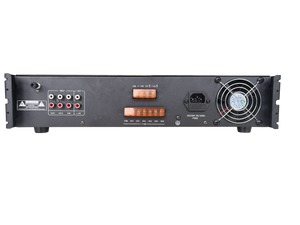

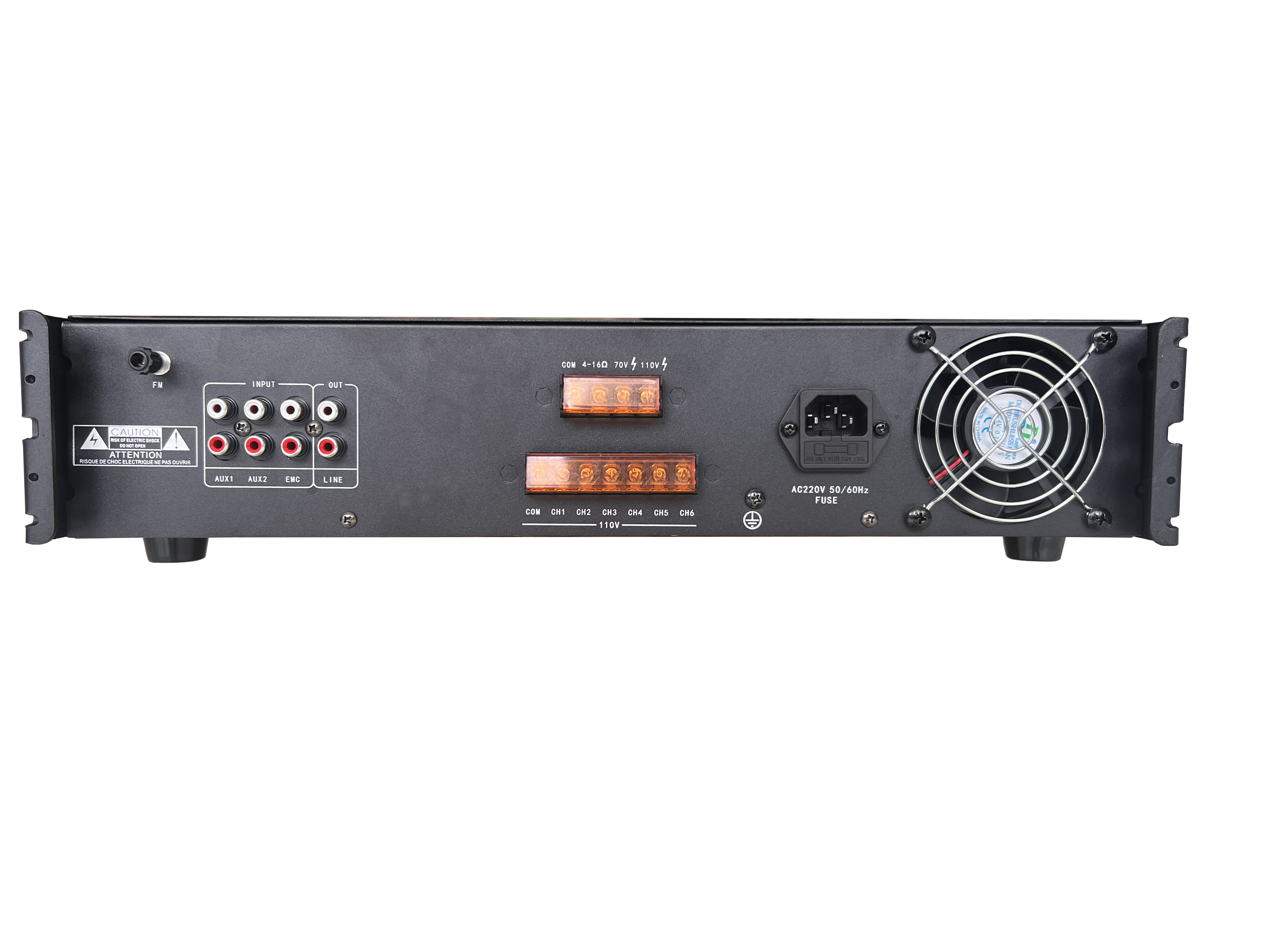

With rich connectivity including 2 × MIC inputs, 2 × AUX, EMC input, plus built-in Bluetooth, USB and SD card playback, it fits seamlessly into retail, corporate, education, industrial and hospitality environments. Wide 80 Hz–18 kHz frequency response, low distortion (THD ≤ 0.5%) and a high SNR ≥ 83 dB ensure announcements are clean and intelligible, even in noisy spaces. Multiple output options—70 V/110 V constant voltage and 4–16 Ω low-impedance—make it easy to integrate with existing speaker lines and future expansions. If you’re building a reliable, zoneable PA backbone that’s easy to operate for everyday staff yet robust enough for critical alerts, the DS-QAE0A120G1-VB6 gives you rock-solid Hikvision engineering, versatile audio routing and installation-friendly design in one cost-effective amplifier.
Key Features:
-
Rated Power: 120 W, 6 Zones
-
Audio input: EMC/MIC/AUX/Bluetooth/USB/SD Card
-
Support two-zone volume and content adjustment
