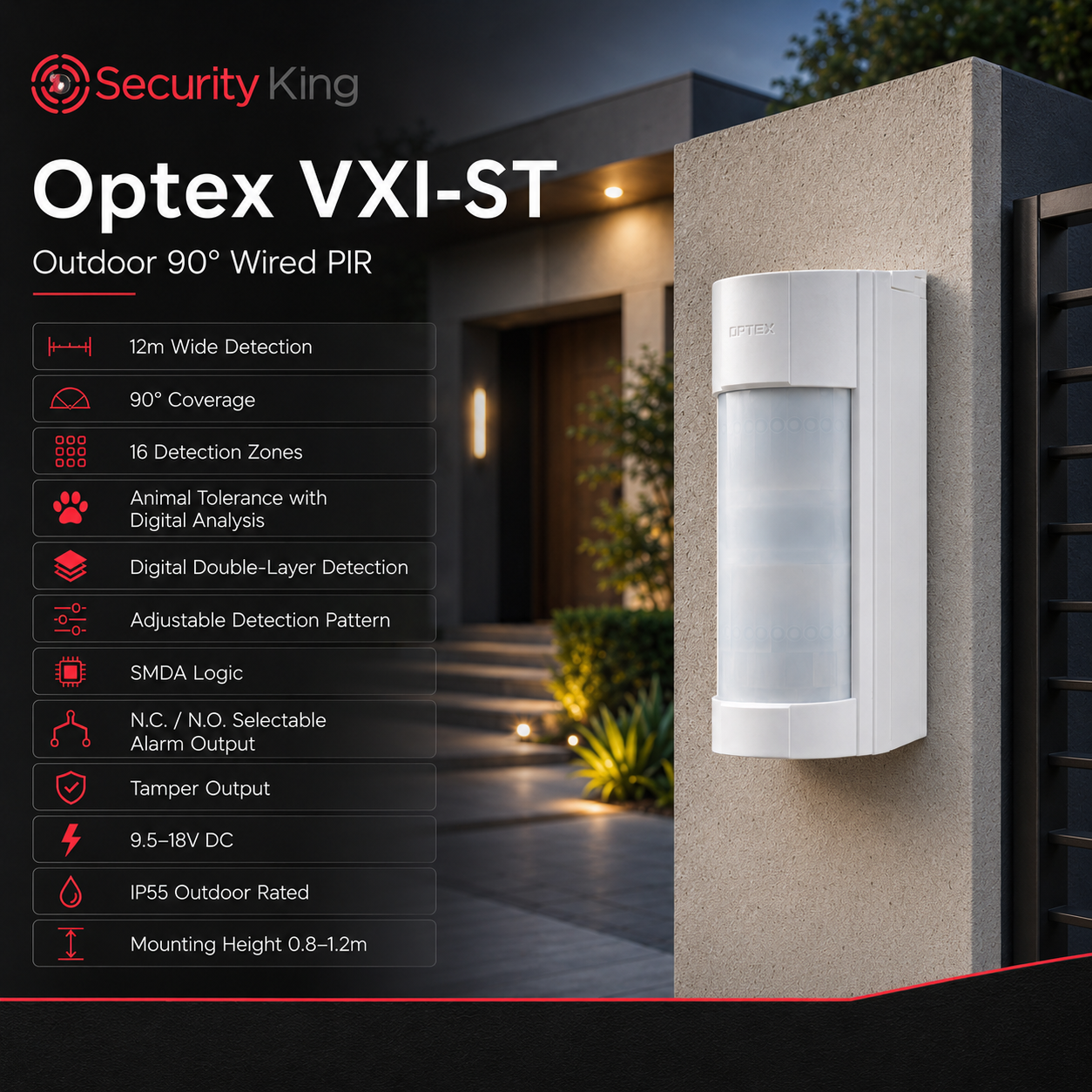

Optex VXI-ST Outdoor 90-Degree Wired PIR
The Optex VXI-ST is a professional outdoor wired PIR detector designed to provide stable and reliable perimeter protection for residential, commercial, retail, warehouse, garden, and outdoor security applications. As part of the OPTEX VX Infinity Series, the VXI-ST offers a wide 90-degree detection pattern with up to 12m coverage, making it ideal for protecting building approaches, entrances, yards, pathways, patios, and vulnerable outdoor areas.
Built with passive infrared detection and advanced digital analysis, the VXI-ST is designed to distinguish genuine human movement from common outdoor disturbances. Its digital double-layer detection requires both upper and lower detection zones to be crossed before triggering an alarm, helping reduce false alarms caused by small animals or environmental movement.
The detector features flexible detection pattern adjustment, allowing the detection range to be set according to the installation area. Pre-cut masking seals can also be used to customise the detection zone and reduce unwanted overspill detection. With SMDA logic, double conductive shielding, and outdoor-ready construction, the VXI-ST provides dependable performance in challenging outdoor environments.
Key Features
-
Outdoor wired 90-degree PIR detector
-
Up to 12m detection range
-
90-degree wide-angle coverage
-
16 detection zones
-
Passive infrared detection method
-
Digital double-layer detection for improved reliability
-
Animal tolerance and digital signal analysis
-
SMDA logic for improved environmental noise immunity
-
Flexible detection pattern adjustable to 5 ranges
-
Easy masking for overspill prevention
-
Double conductive shielding against bright light disturbance and RFI
-
End-of-line resistor option
-
N.C. / N.O. selectable alarm output
-
Tamper output
-
Walk test LED indicator
-
Cover tamper protection
-
IP55 outdoor protection rating
-
Grade 2 and Environmental Class 4
-
Suitable for low-mount outdoor installation
Ideal For
-
Residential outdoor perimeter protection
-
Garden and yard security
-
Driveways and entrance approaches
-
Retail and commercial premises
-
Warehouses and loading areas
-
Boundary and wall-side detection
-
Outdoor alarm system installations
-
Areas requiring stable wide-angle intrusion detection
Technical Specifications
-
Brand: Optex
-
Model: VXI-ST
-
Product Type: Outdoor Wired PIR Detector
-
Series: VX Infinity Series
-
Detection Method: Passive Infrared
-
Detection Coverage: 12m wide / 90 degrees
-
Detection Zones: 16 zones
-
PIR Distance Limit: 12m to 2.5m, adjustable in 5 levels
-
Detectable Speed: 0.3–1.5m/s
-
Sensitivity: 2.0°C at 0.6m/s
-
Power Input: 9.5–18V DC
-
Current Draw: 20mA max at 12V DC
-
Alarm Period: 2.0 ± 1.0 seconds
-
Warm-Up Period: Approx. 60 seconds
-
Alarm Output: N.C. / N.O. selectable, 28V DC 0.1A max
-
Tamper Output: N.C., 28V DC 0.1A max
-
Mounting Height: 0.8m to 1.2m
-
Operating Temperature: -30°C to +60°C
-
Relative Humidity: 95% max
-
Protection Rating: IP55
-
Weight: Approx. 500g
Why Choose the Optex VXI-ST?
The Optex VXI-ST is a reliable choice for outdoor alarm installations where accurate wide-angle detection and reduced false alarms are important. With its 12m 90-degree coverage, digital double-layer detection, animal tolerance, adjustable detection range, and rugged outdoor design, it offers strong and dependable perimeter protection for both residential and commercial sites.
Installation Note
Professional installation is recommended to ensure correct mounting height, wiring, zone configuration, detection angle, masking setup, and integration with the alarm control panel.
