Hikvision Analog Column Speaker 20W

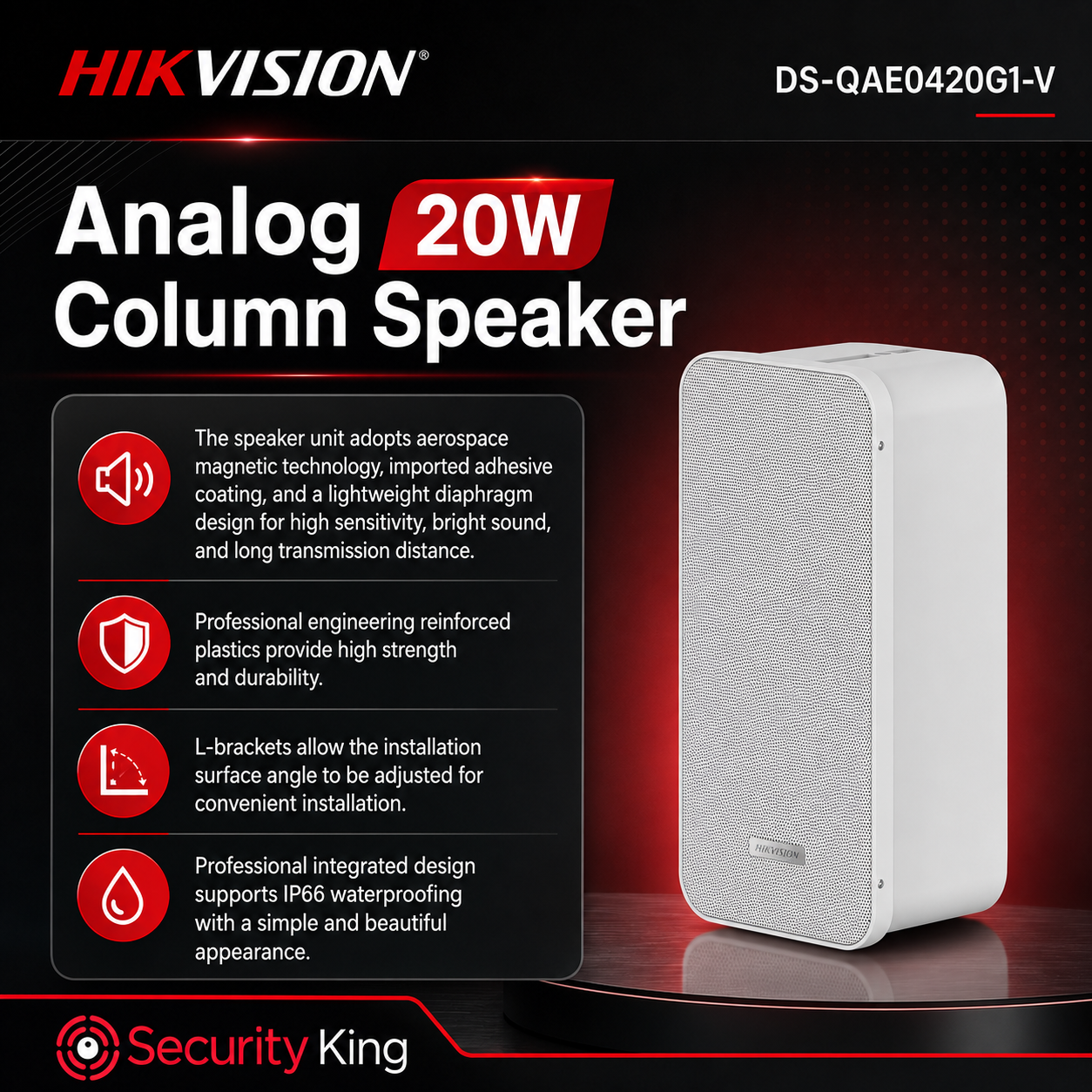

Hikvision DS-QAE0420G1-V (O-STD) Analog Column Speaker 20W

The Hikvision DS-QAE0420G1-V (O-STD) is a 20W analog column speaker designed for clear and reliable public address audio in commercial, retail, office, school, hospitality, and security environments. Built with Hikvision’s professional audio design, it delivers bright sound, good speech clarity, and dependable performance for announcements, paging, and background audio systems.

This speaker features a full-frequency 4" driver with a 0.75" high-frequency unit, helping provide clear voice reproduction and balanced audio output. With a rated power of 20W, 8Ω impedance, 89.5 dB sensitivity, and a frequency response of 100 Hz to 20 kHz, it is well suited for small to medium-sized public address installations.

The DS-QAE0420G1-V is constructed with a strong plastic back cover and steel mesh front cover for durability. Its IP66-rated housing makes it suitable for demanding indoor and outdoor environments, while the included L-brackets allow flexible angle adjustment during installation.

Key Features

• Hikvision analog column speaker

• Model: DS-QAE0420G1-V (O-STD)

• Rated power: 20W

• Impedance: 8Ω

• Sensitivity: 89.5 dB ± 3 dB

• Maximum acoustic pressure: 96 dB SPL

• Frequency response: 100 Hz to 20 kHz

• Speaker unit: 4" full-frequency driver + 0.75" high-frequency driver

• 100V constant voltage terminal block audio input

• IP66-rated weather-resistant design

• Strong professional-grade housing

• Steel mesh front cover with plastic back cover

• Adjustable installation angle using L-brackets

• Suitable for public address, announcements, paging, and background music

• Colour: White

• Dimensions: 280mm × 161.9mm × 119.8mm

• Approximate weight: 1.86kg

Ideal For

Perfect for offices, retail stores, schools, warehouses, reception areas, restaurants, shopping centres, parking areas, public facilities, and commercial security installations that require reliable voice announcements, paging, and clear background audio.
