DS-3E2326P

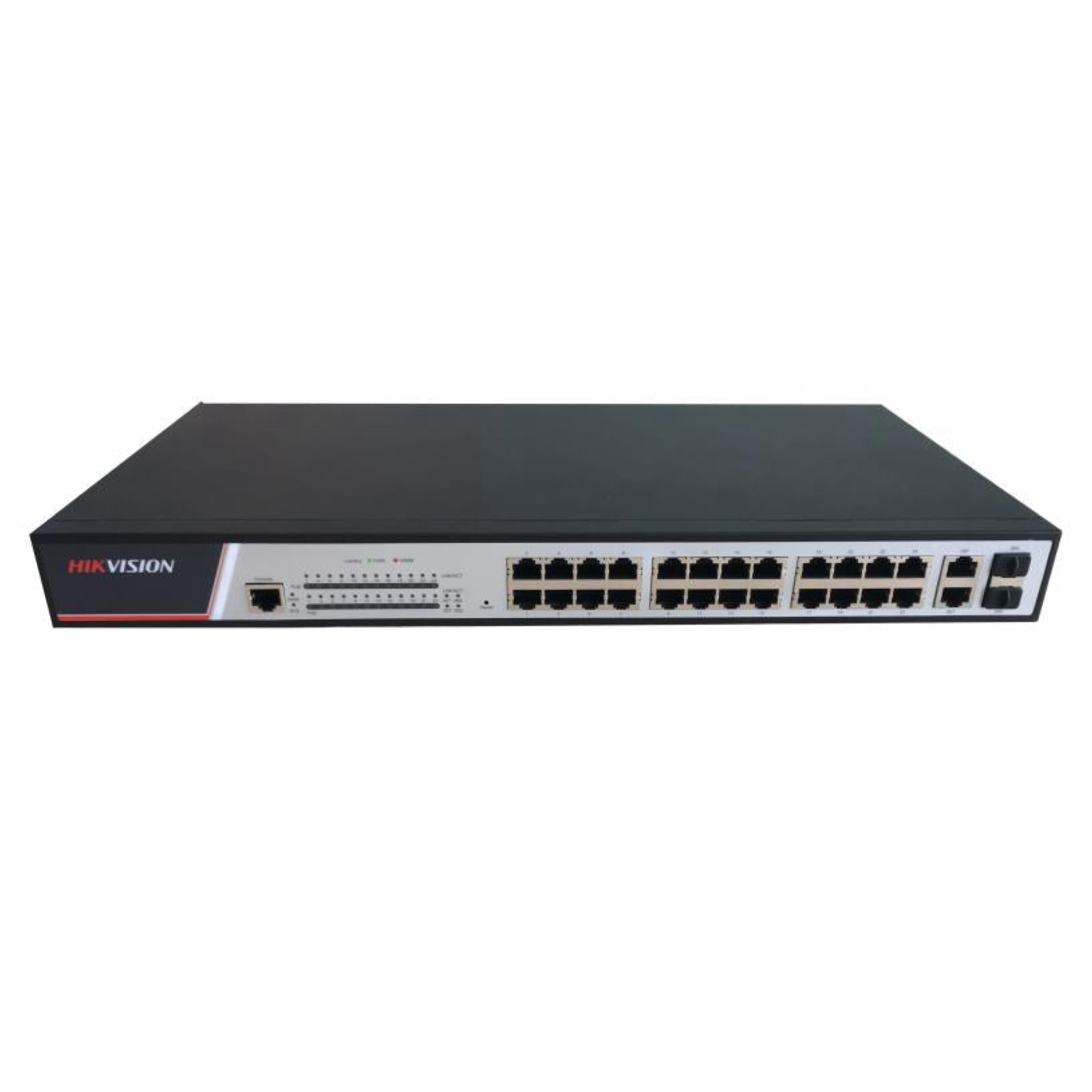

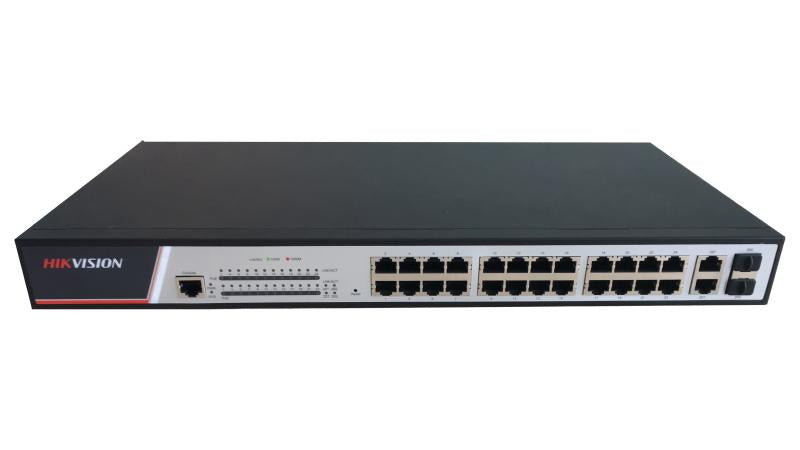

Hikvision 24-Port Managed PoE Switch
The Hikvision DS-3E2326P is a professional Layer 2 managed PoE network switch designed for reliable video surveillance and security network transmission. Built for CCTV, IP camera, access control, and commercial networking applications, it provides stable data and power delivery for medium to large installations.
The switch features 24 × 10/100 Mbps PoE ports for connecting IP cameras, intercoms, access control terminals, and other PoE devices, plus 2 × 10/100/1000 Mbps combo uplink ports for high-speed network backbone connections. It supports IEEE 802.3af/at PoE, allowing compatible devices to receive both power and data through a single Ethernet cable.
Designed specifically for video data transmission, the DS-3E2326P offers rich Layer 2 management features including VLAN, STP, port mirroring, IGMP Snooping, LACP, QoS, ACL, EAPS, and ERPS. It also supports multiple management methods such as web management, console, Telnet, SSH 2.0, SNMP v1/v2/v3, TFTP, and RMON, giving installers and network administrators flexible control over the system.
With a strong PoE power design, high switching performance, and 4 kV surge protection, the DS-3E2326P is a dependable choice for professional security networks where uptime, stability, and centralized management are important.
Key Features
-
24 × 10/100 Mbps PoE ports
-
2 × 10/100/1000 Mbps combo uplink ports
-
Layer 2 managed network switch
-
Designed for video surveillance data transmission
-
IEEE 802.3af/at PoE support
-
Up to 30 W PoE output per port
-
VLAN, STP, port mirroring, IGMP Snooping, LACP, QoS, ACL, EAPS, and ERPS support
-
Web, console, Telnet, SSH 2.0, SNMP, TFTP, and RMON management
-
4 kV surge protection for improved reliability
-
Suitable for professional CCTV and IP security networks
Ideal for: IP camera systems, CCTV installations, access control networks, video intercom systems, commercial security projects, office networks, retail sites, warehouses, schools, and medium-to-large surveillance deployments.
