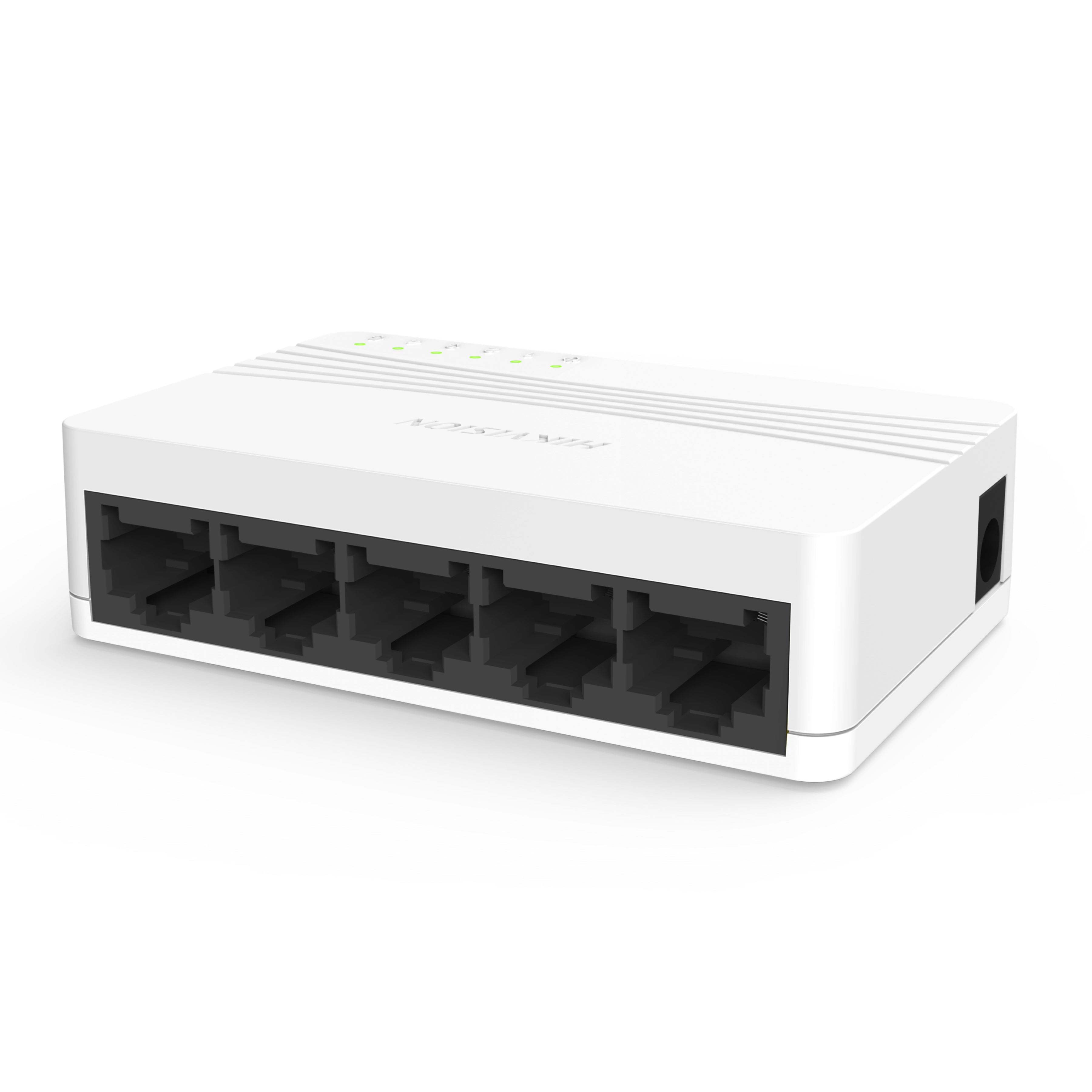

Hikvision DS-3E0105D-E 5-Port Fast Ethernet Unmanaged Desktop Switch
The Hikvision DS-3E0105D-E is a compact 5-port Fast Ethernet unmanaged desktop switch designed for simple, reliable network expansion. With five 10/100 Mbps RJ45 ports, it is ideal for connecting computers, IP cameras, printers, access control devices, and other network equipment in homes, offices, and small business environments.
This plug-and-play switch requires no configuration, making installation quick and hassle-free. It supports store-and-forward switching, MAC address auto-learning and aging, and IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards for stable and efficient data transmission. Its compact ABS housing allows for convenient desktop or wall-mounted installation, making it a practical choice where space is limited.
With a 1 Gbps switching capacity and 0.744 Mpps packet forwarding rate, the DS-3E0105D-E delivers dependable performance for everyday network connectivity. Powered by 5V DC, 0.6A, it offers low-power operation in a lightweight and space-saving design.
Key Features:
-
5 × 10/100 Mbps RJ45 Ethernet ports
-
Fast Ethernet unmanaged desktop switch
-
Plug-and-play operation with no configuration required
-
Store-and-forward switching for reliable data transmission
-
MAC address auto-learning and aging
-
Supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
-
1 Gbps switching capacity
-
0.744 Mpps packet forwarding rate
-
Compact ABS body for desktop or wall-mounted use
-
5V DC, 0.6A power supply
-
Dimensions: 82 × 52 × 22.4 mm
-
Operating temperature: 0 °C to 40 °C
Specs checked against Hikvision’s product page and regional Hikvision listings. (hikvision.com)
