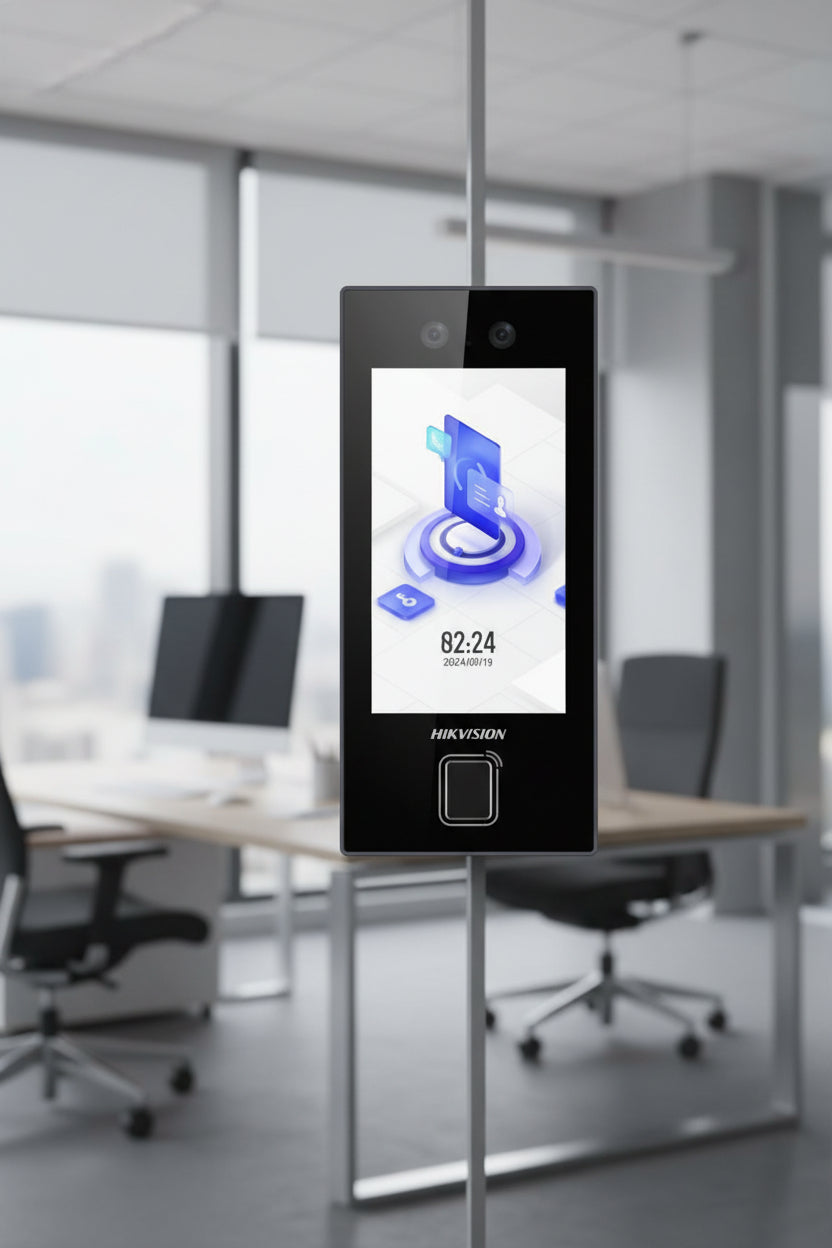

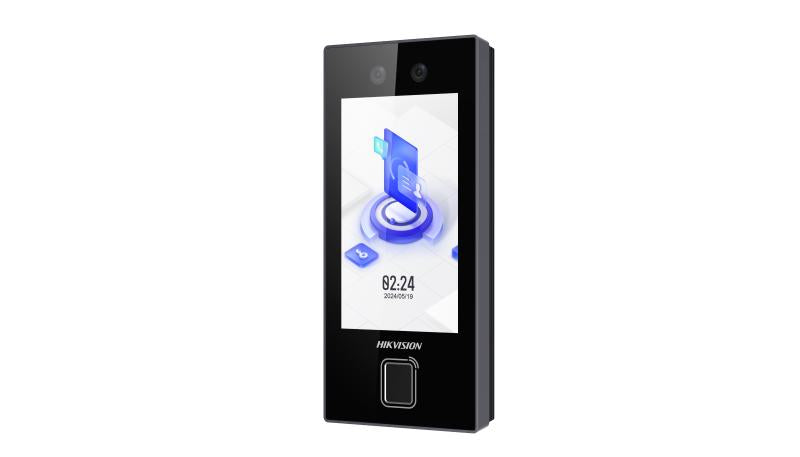

The Hikvision DS-K1T344MBFWX-E1 is a compact, intelligent face recognition access control terminal designed for secure and convenient entry management in offices, commercial buildings, schools, apartments, and controlled-access facilities. It combines facial recognition, fingerprint authentication, card access, PIN entry, and QR code recognition into one modern wall-mounted device.
Featuring a 4.5-inch LCD touch screen and a 2 MP wide-angle camera, the DS-K1T344MBFWX-E1 delivers fast and accurate contactless access control. It supports up to 3,000 faces, 3,000 fingerprints, 3,000 cards, and 150,000 event records, making it suitable for small to medium-sized installations. Face recognition is supported from 0.3 m to 1.5 m, with a recognition speed of less than 0.2 seconds per user and an accuracy rate of 99% or higher.
The terminal includes a built-in M1 card reader, Wi-Fi, Bluetooth, 10/100 Mbps network support, and two-way audio for communication with client software, indoor stations, or main stations. It also supports face anti-spoofing, audio prompts, mobile web and PC web configuration, and flexible authentication methods including face, fingerprint, card, PIN, and QR code.
For installation flexibility, the DS-K1T344MBFWX-E1 can be powered by 12 VDC or standard PoE, and supports door lock control, exit button input, door contact input, tamper detection, alarm input/output, RS-485, Wiegand, and USB interfaces. With an IP65-rated design and an operating temperature range of -30°C to 60°C, it is suitable for demanding indoor or sheltered outdoor access control environments.
Key Features
4.5-inch LCD touch screen
2 MP wide-angle camera
Face, fingerprint, card, PIN, and QR code authentication
Up to 3,000 faces, 3,000 fingerprints, and 3,000 cards
Fast face recognition: less than 0.2 seconds per user
Recognition distance: 0.3 m to 1.5 m
Built-in M1 card reader
Wi-Fi, Bluetooth, and Ethernet connectivity
Two-way audio support
Face anti-spoofing technology
150,000 event record capacity
12 VDC or PoE power support
Door lock, exit button, door contact, tamper, alarm, RS-485, Wiegand, and USB interfaces
