DS-K1201AMF

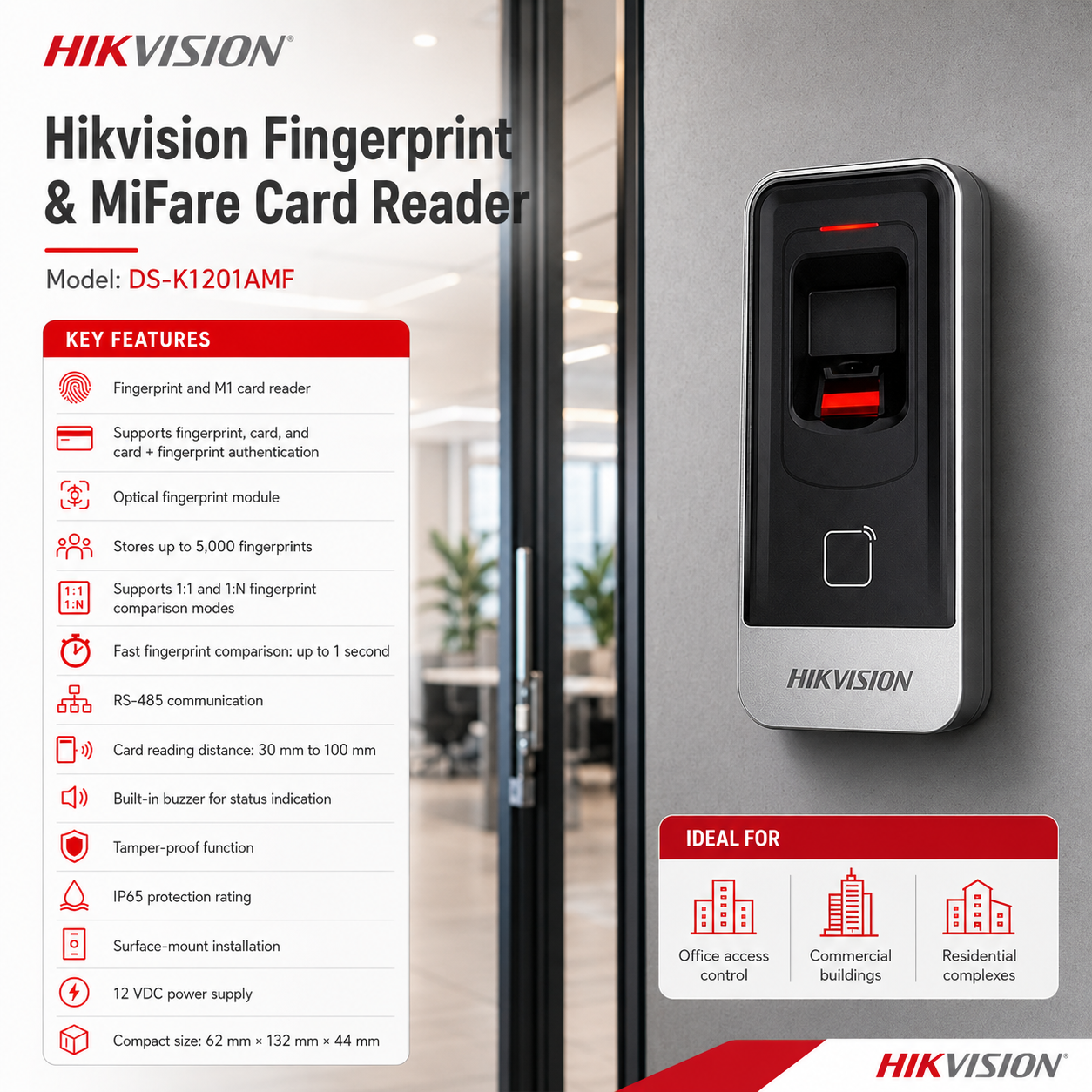

Hikvision DS-K1201AMF Fingerprint & Mifare Card Reader
The Hikvision DS-K1201AMF is a professional fingerprint and card reader designed for secure access control applications in offices, commercial buildings, residential estates, schools, warehouses, and other controlled-entry environments. Combining biometric fingerprint recognition with M1 card authentication, it provides a reliable and convenient solution for managing authorised access.
The reader supports multiple authentication modes, including fingerprint, card, and card + fingerprint verification, giving users flexible security options depending on the access control requirement. Its optical fingerprint module delivers fast and accurate recognition, with support for both 1:1 and 1:N fingerprint comparison modes.
With storage for up to 5,000 fingerprints, the DS-K1201AMF is suitable for small to medium-sized access control installations. It communicates via RS-485 and is designed with secure fingerprint data handling, CRC protocol checking, optical coupling isolation, and noise suppression for stable performance.
The unit features a built-in buzzer for status indication, tamper protection, and a durable IP65-rated housing, making it suitable for surface-mounted indoor or protected outdoor installations. Its compact design allows it to integrate neatly with Hikvision access control systems while maintaining a clean, professional appearance.
Key Features
-
Fingerprint and M1 card reader
-
Supports fingerprint, card, and card + fingerprint authentication
-
Optical fingerprint module
-
Stores up to 5,000 fingerprints
-
Supports 1:1 and 1:N fingerprint comparison modes
-
Fast fingerprint comparison: up to 1 second
-
RS-485 communication
-
Card reading distance: 30 mm to 100 mm
-
Built-in buzzer for status indication
-
Tamper-proof function
-
IP65 protection rating
-
Surface-mount installation
-
12 VDC power supply
-
Compact size: 62 mm × 132 mm × 44 mm
Ideal For
-
Office access control
-
Commercial buildings
-
Residential complexes
-
Schools and training centres
-
Warehouses and restricted areas
-
Staff entrance control systems
The main specifications are based on Hikvision’s DS-K1201AMF product page and datasheet, including 5,000 fingerprint capacity, M1 card support, RS-485 communication, 12 VDC power, surface mounting, and 62 mm × 132 mm × 44 mm dimensions.
