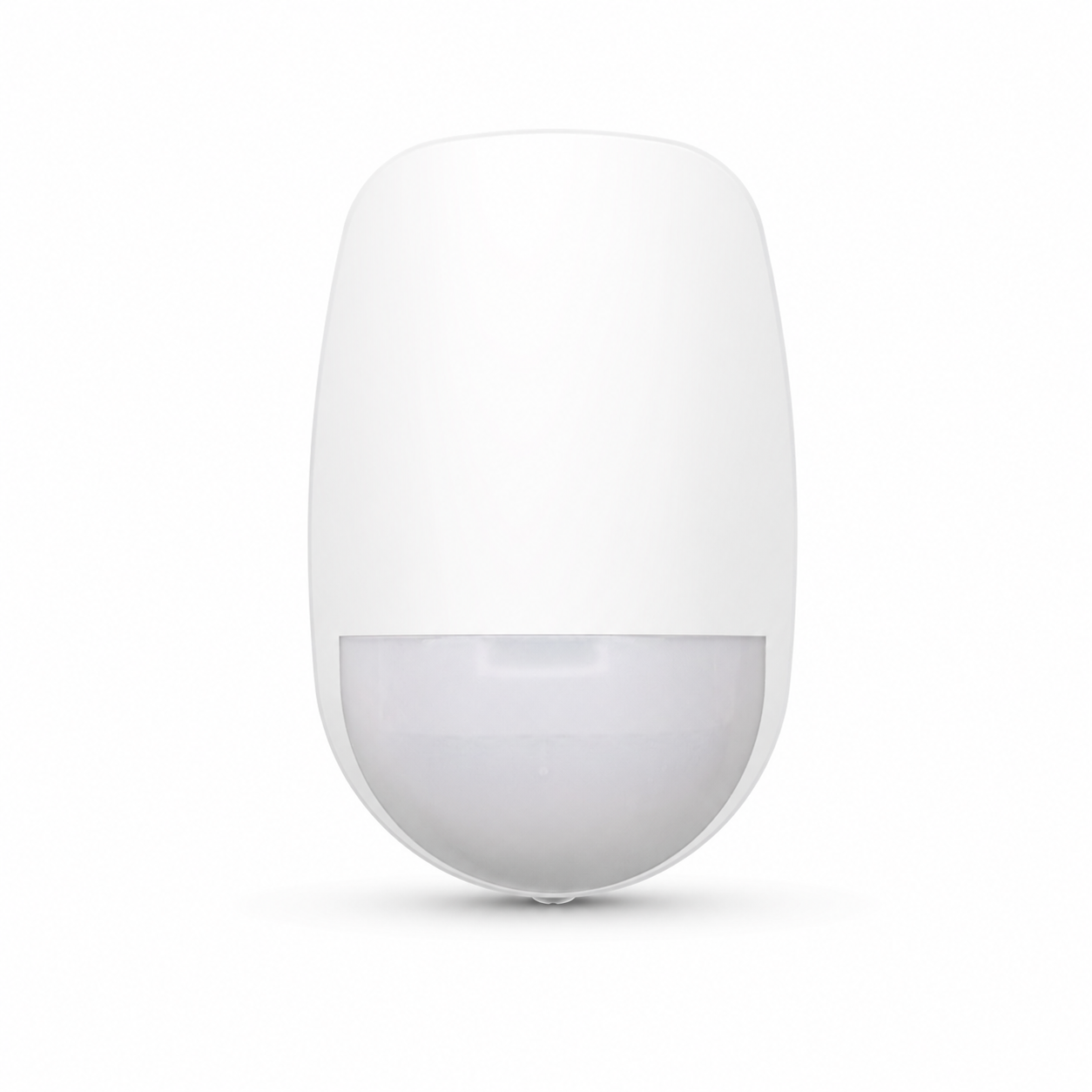

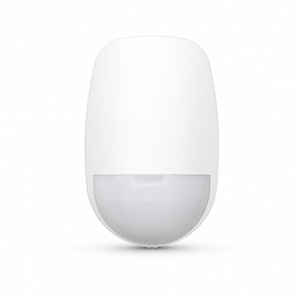

Hikvision DS-PDP15P-EG2-WE AX PRO Wireless PIR Detector
Short Description
The Hikvision DS-PDP15P-EG2-WE is a wireless PIR motion detector designed for Hikvision AX PRO alarm systems. With a 15 m detection range, 85.9° coverage, pet immunity up to 30 kg, advanced digital signal processing, and reliable wireless communication, it provides dependable indoor intrusion detection for homes, offices, and commercial spaces.
Product Description
The Hikvision DS-PDP15P-EG2-WE AX PRO Wireless PIR Detector delivers accurate and reliable indoor motion detection for modern security systems. Designed for use with Hikvision AX PRO wireless alarm panels, this detector offers professional-grade performance in a compact and easy-to-install design.
With a detection range of up to 15 metres and an 85.9° field of view, the DS-PDP15P-EG2-WE is ideal for protecting bedrooms, lounges, offices, corridors, reception areas, shops, and other indoor spaces. Its passive infrared detection technology identifies movement within the protected area while advanced digital signal processing and 3D optics help improve detection accuracy.
The detector includes pet immunity of up to 30 kg, helping reduce false alarms caused by small animals. It also features Smart Environmental Control technology, sealed optics, digital temperature compensation, and white light filtering for stable performance in changing indoor conditions.
Using Hikvision’s wireless AX PRO communication, the detector supports two-way transmission, frequency hopping, and secure wireless connectivity. It also offers tamper protection, low battery supervision, and app-based configuration for convenient installation and maintenance.
With a long battery life of up to 5 years, the DS-PDP15P-EG2-WE is a dependable and low-maintenance motion detection solution for residential and commercial alarm systems.
Key Features:
-
Wireless PIR motion detector for Hikvision AX PRO systems
-
15 m detection range
-
85.9° detection angle
-
52 detection zones for accurate movement detection
-
Pet immunity up to 30 kg
-
Smart Environmental Control technology
-
Advanced digital signal processing
-
3D optics for improved detection performance
-
Sealed optics for enhanced reliability
-
Digital temperature compensation
-
White light filtering up to 6,500 lux
-
Fully remote configurable via app
-
Multiple enrolment methods for easy setup
-
Frequency hopping for reliable wireless transmission
-
Tamper protection
-
Low battery monitoring and supervision
-
Long battery life of up to 5 years
-
Compact indoor design for wall mounting
Technical Specifications:
Brand: Hikvision
Model: DS-PDP15P-EG2-WE
Product Type: AX PRO Wireless PIR Detector
Application: Indoor
Detection Method: Passive Infrared
Detection Range: 15 m
Detection Angle: 85.9°
Detection Zones: 52
Detectable Speed: 0.3 m/s to 2 m/s
Pet Immunity: Up to 30 kg
Sensitivity: High / Auto / Pet
White Light Filter: 6,500 lux
Digital Temperature Compensation: Supported
Digital Processing: Supported
Sealed Optics: Supported
Tamper Protection: Front and rear tamper
Wireless Frequency: 868 MHz
Wireless Range: Up to 1.6 km in open area
Wireless Features: Frequency hopping and two-way communication
Power Supply: 1 × CR123A battery
Battery Life: Up to 5 years
Operating Temperature: -10°C to 55°C
Operating Humidity: 10% to 90%
Installation Height: 1.8 m to 2.4 m
Dimensions: 65.5 mm × 103 mm × 48.5 mm
Weight: Approx. 128 g
Mounting Method: Wall mounting
What’s in the Box:
Ideal For:
-
Homes and apartments
-
Offices and boardrooms
-
Retail shops
-
Corridors and passageways
-
Reception areas
-
Indoor commercial spaces
-
Hikvision AX PRO alarm installations
-
Pet-friendly indoor security applications
