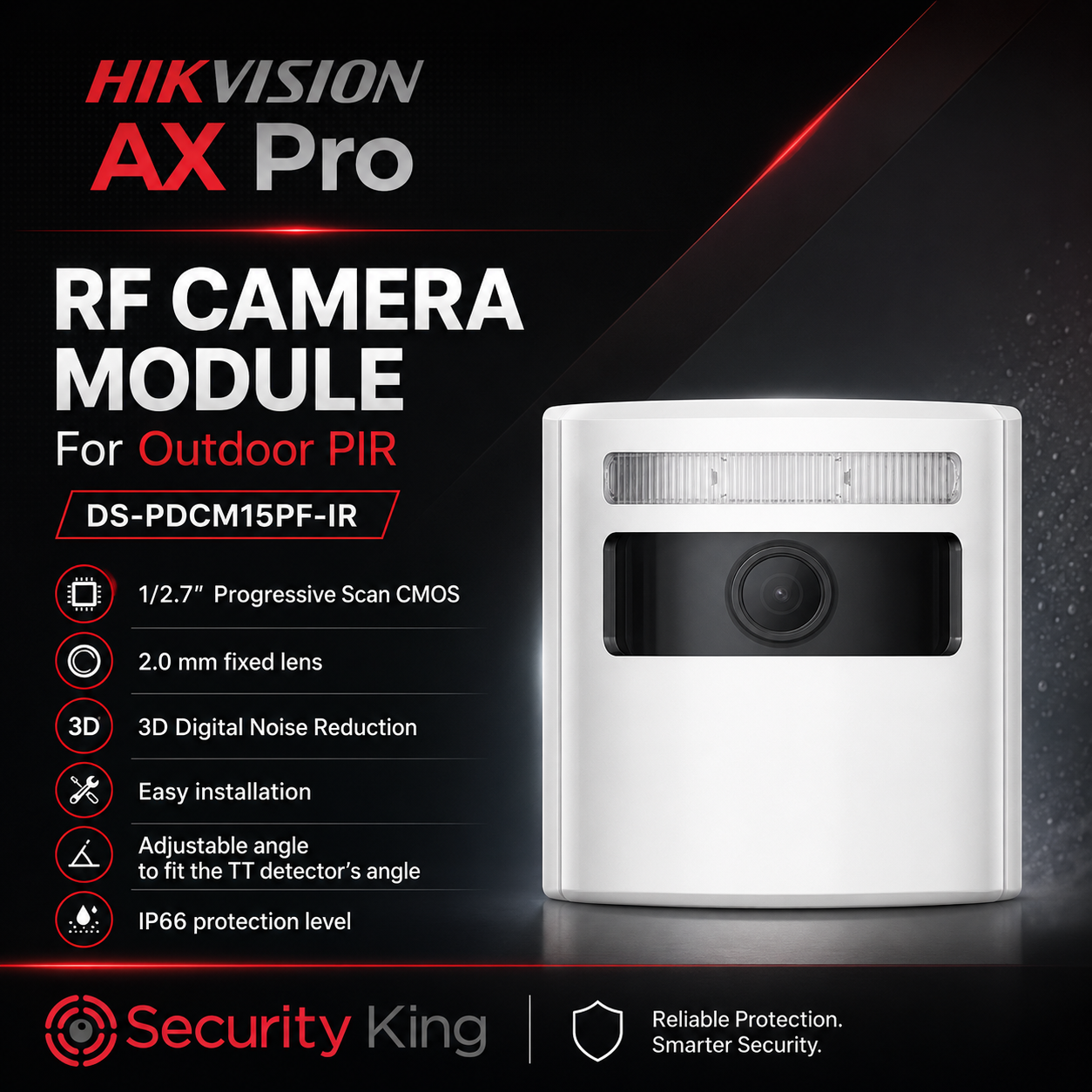

Hikvision DS-PDCM15PF-IR RF Camera Module for AX PRO Outdoor Detector
The Hikvision DS-PDCM15PF-IR is a compact RF camera module designed to upgrade compatible Hikvision AX PRO outdoor detectors with visual alarm verification. When paired with a compatible Tri-Tech external detector, this camera module captures images during alarm events, helping users quickly verify whether an alert is genuine and respond with greater confidence.
Built for reliable outdoor security applications, the DS-PDCM15PF-IR features a 1/2.7" Progressive Scan CMOS sensor, a 2.0mm fixed lens, infrared illumination, and 3D Digital Noise Reduction for clearer image capture in challenging lighting conditions. Its adjustable viewing angle allows it to align with the detector’s coverage area, making it a practical add-on for perimeter protection, entrances, driveways, gardens, yards, and commercial outdoor zones.
With IP66 weather-resistant protection and night vision support up to 15 metres, the DS-PDCM15PF-IR is engineered for dependable performance in demanding environments.
Key Features
-
RF camera module for compatible Hikvision AX PRO outdoor detectors
-
Provides image-based alarm verification
-
1/2.7" Progressive Scan CMOS sensor
-
2.0mm fixed lens
-
Wide viewing angle of approximately 137.2° horizontal and 80.1° vertical
-
Infrared illumination range up to 15m
-
Automatic day/night switching
-
3D Digital Noise Reduction for improved image clarity
-
JPEG image capture
-
Supports multiple image resolutions, including 640 × 480, 320 × 240 and 160 × 120
-
Adjustable camera angle to match detector coverage
-
IP66-rated weather-resistant design
-
Suitable for outdoor perimeter and intrusion detection applications
Ideal For
-
Outdoor perimeter security
-
Driveways and entrance areas
-
Gardens and yards
-
Commercial premises
-
Warehouses and loading areas
-
Sites requiring visual verification of alarm events
The Hikvision DS-PDCM15PF-IR is an excellent add-on for AX PRO outdoor detection systems, providing visual confirmation of triggered alarms and helping reduce uncertainty during intrusion events.
