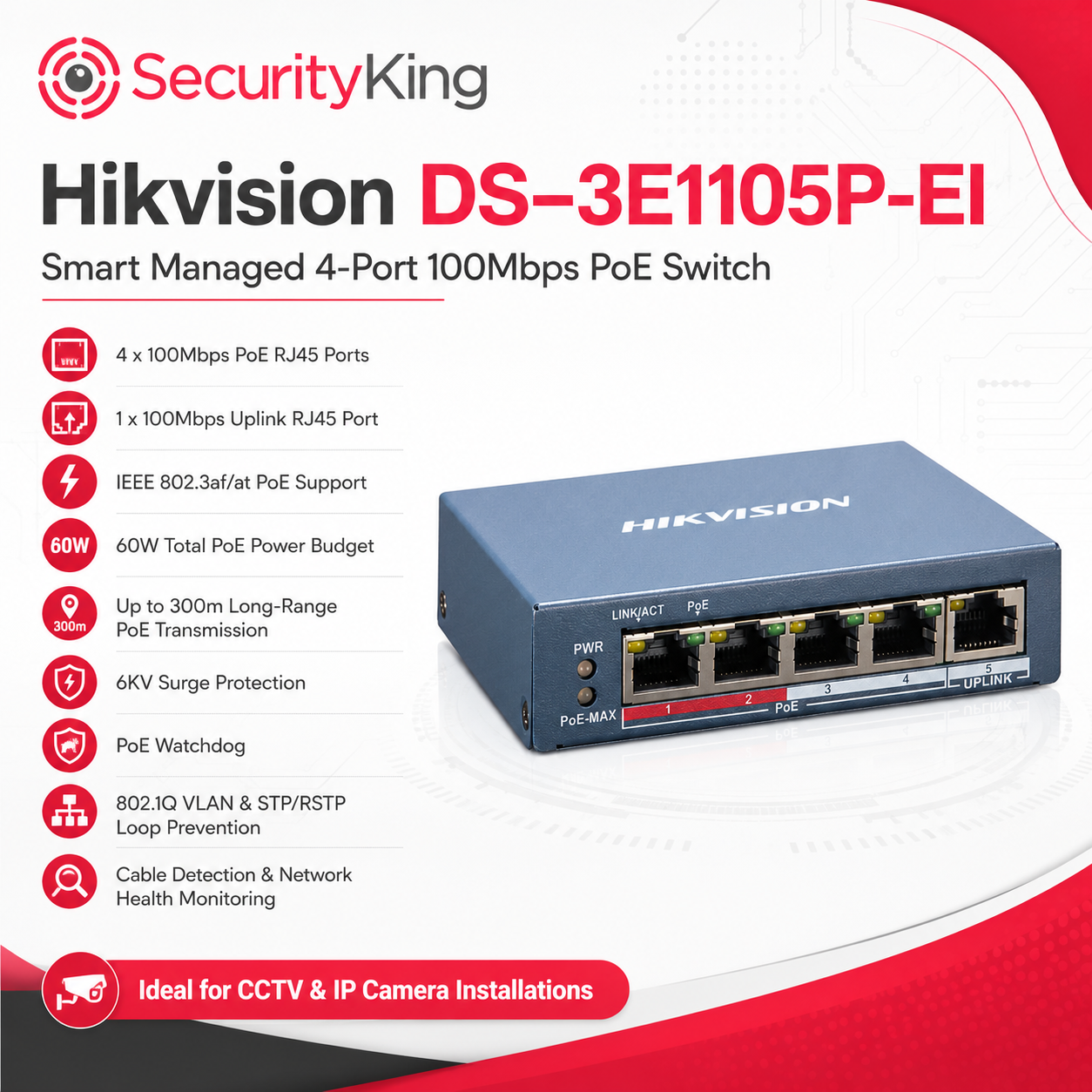

Hikvision DS-3E1105P-EI Smart Managed 4-Port PoE Switch
The Hikvision DS-3E1105P-EI is a compact smart managed PoE switch designed for CCTV, IP camera, and small network installations. With four 100Mbps PoE ports and one 100Mbps uplink/network port, it provides both power and data transmission through a single network cable, making it ideal for neat and efficient surveillance system setups.
With a total PoE power budget of up to 60W and IEEE 802.3af/at support, the DS-3E1105P-EI can power compatible IP cameras directly without requiring separate power supplies at each camera point. Its long-range transmission mode allows compatible AF/AT cameras to reach up to 300 metres, depending on camera model and cable condition, making it useful for larger properties and extended CCTV cable runs.
The switch is built with smart management features that help simplify network maintenance. PoE watchdog automatically detects and restarts cameras that stop responding, while network topology management, alarm push, and network health monitoring help installers and users identify issues quickly. It also supports 802.1Q VLAN, STP/RSTP loop prevention, and cable detection for improved network stability and easier troubleshooting.
Key Features
-
4 × 100Mbps PoE RJ45 ports
-
1 × 100Mbps network/uplink RJ45 port
-
IEEE 802.3af/at PoE support
-
Total PoE power budget: up to 60W
-
Up to 300m long-range PoE transmission in extend mode
-
6KV surge protection for PoE ports
-
PoE watchdog to detect and restart unresponsive cameras
-
Network topology management
-
Alarm push and network health monitoring
-
Supports 802.1Q VLAN
-
Supports STP/RSTP loop prevention
-
Cable detection for fault location
-
Compact desktop or wall-mount installation
-
Ideal for IP CCTV and small security networks
Ideal For
-
IP camera installations
-
CCTV network upgrades
-
Small business surveillance systems
-
Homes and offices
-
Retail stores
-
Warehouses
-
Gate and perimeter camera points
-
Long cable-run camera installations
Why Choose This Switch?
The Hikvision DS-3E1105P-EI is a strong choice for CCTV installers and users who need a compact, reliable, and smart PoE switch for IP surveillance systems. With PoE power, long-range transmission, surge protection, PoE watchdog, and smart network monitoring features, it helps keep camera networks stable, efficient, and easier to maintain.
