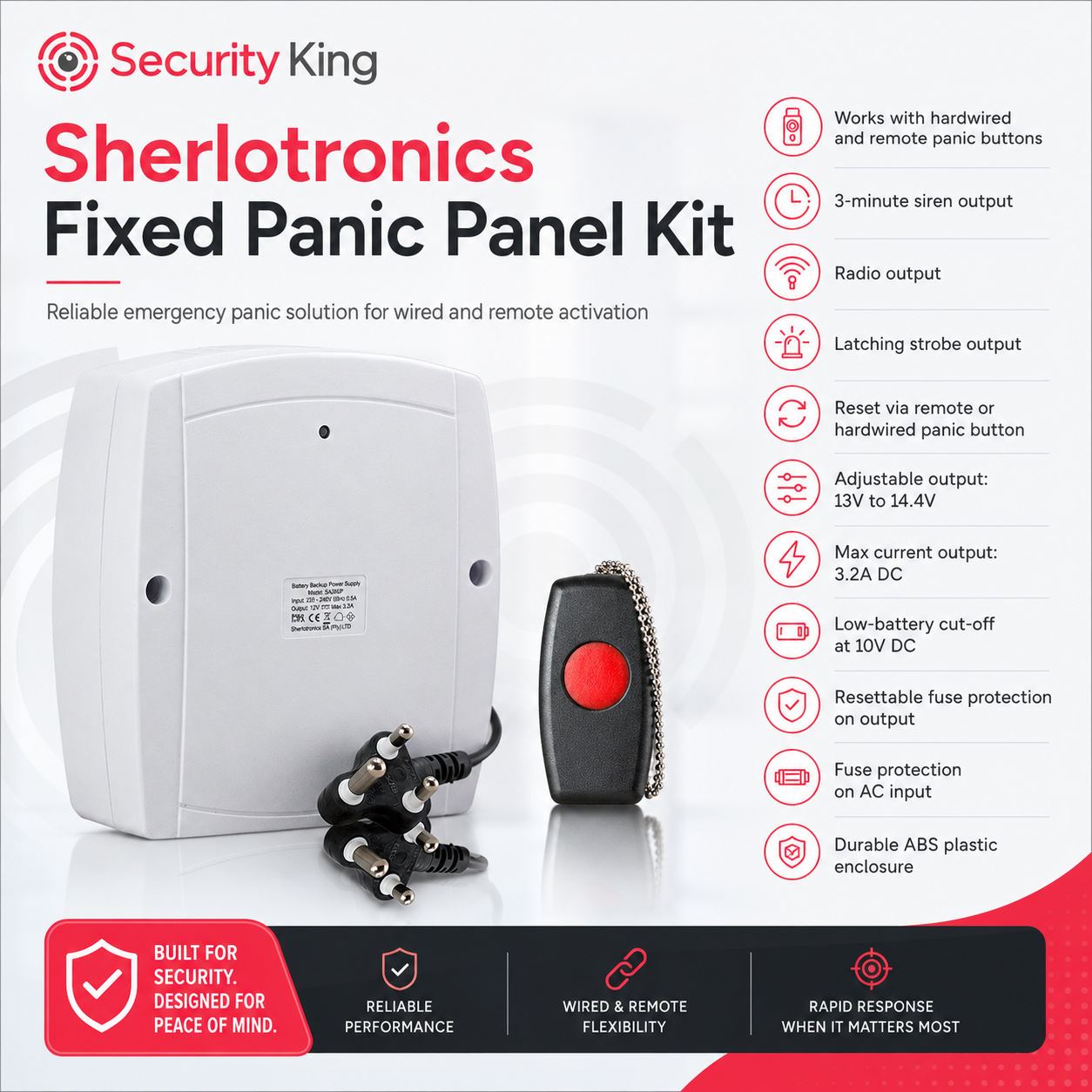

Sherlotronics Fixed Panic Panel Kit
The Sherlotronics Fixed Panic Panel Kit is a reliable emergency panic solution designed for homes, offices, shops, factories, guard houses, and commercial security installations. It is built to work with both hardwired panic buttons and remote panic buttons, giving users a flexible way to trigger an emergency alert when immediate assistance is required.
When a panic activation occurs, the panel can trigger a 3-minute siren output, radio output, and a latching strobe output. This helps provide a clear audible and visual alert while also allowing integration with compatible alarm or response systems. Activations can be reset using either a remote control or a hardwired panic button, making the system practical and easy to operate.
The unit includes a built-in power supply with adjustable 13V to 14.4V output and up to 3.2A DC current output. It also features microprocessor-controlled charging, low-battery cut-off at 10V DC to help protect the backup battery from deep discharge, AC fail indication, resettable fuse protection on the output, and fuse protection on the AC input.
Housed in a durable ABS plastic enclosure, the Sherlotronics Fixed Panic Panel Kit is a dependable solution for fixed panic installations where quick emergency signalling, battery backup support, and system reliability are essential.
Key Features
-
Fixed panic panel for emergency alarm activation
-
Works with hardwired panic buttons and remote panic buttons
-
Triggers 3-minute siren output during panic activation
-
Radio output for alarm or response system integration
-
Latching strobe output
-
Reset via remote control or hardwired panic button
-
Microprocessor-controlled charging output
-
Low-battery cut-off at 10V DC
-
Buzzer tones for battery low and AC fail
-
Adjustable output voltage: 13V to 14.4V
-
Maximum current output: 3.2A DC at 14V
-
Relay contact rating: 10A
-
AC fail output rating: 140mA positive switching
-
Resettable fuse protection on output
-
Fuse protection on AC input
-
ABS plastic enclosure
-
Operating temperature: -3°C to 60°C
-
Dimensions: 200 × 180 × 87mm
-
Suitable for professional panic alarm installations
Ideal For
-
Office panic systems
-
Shop panic systems
-
Home panic applications
-
Factory panic installations
-
Guard house panic systems
-
Reception and counter panic points
-
Security response installations
-
Commercial and residential alarm systems
Why Choose This Panic Panel?
The Sherlotronics Fixed Panic Panel Kit is a practical and dependable emergency alert solution for installations that require both wired and wireless panic activation. With siren, strobe, and radio outputs, built-in power management, low-battery protection, and flexible reset options, it provides a strong foundation for reliable panic response systems.
