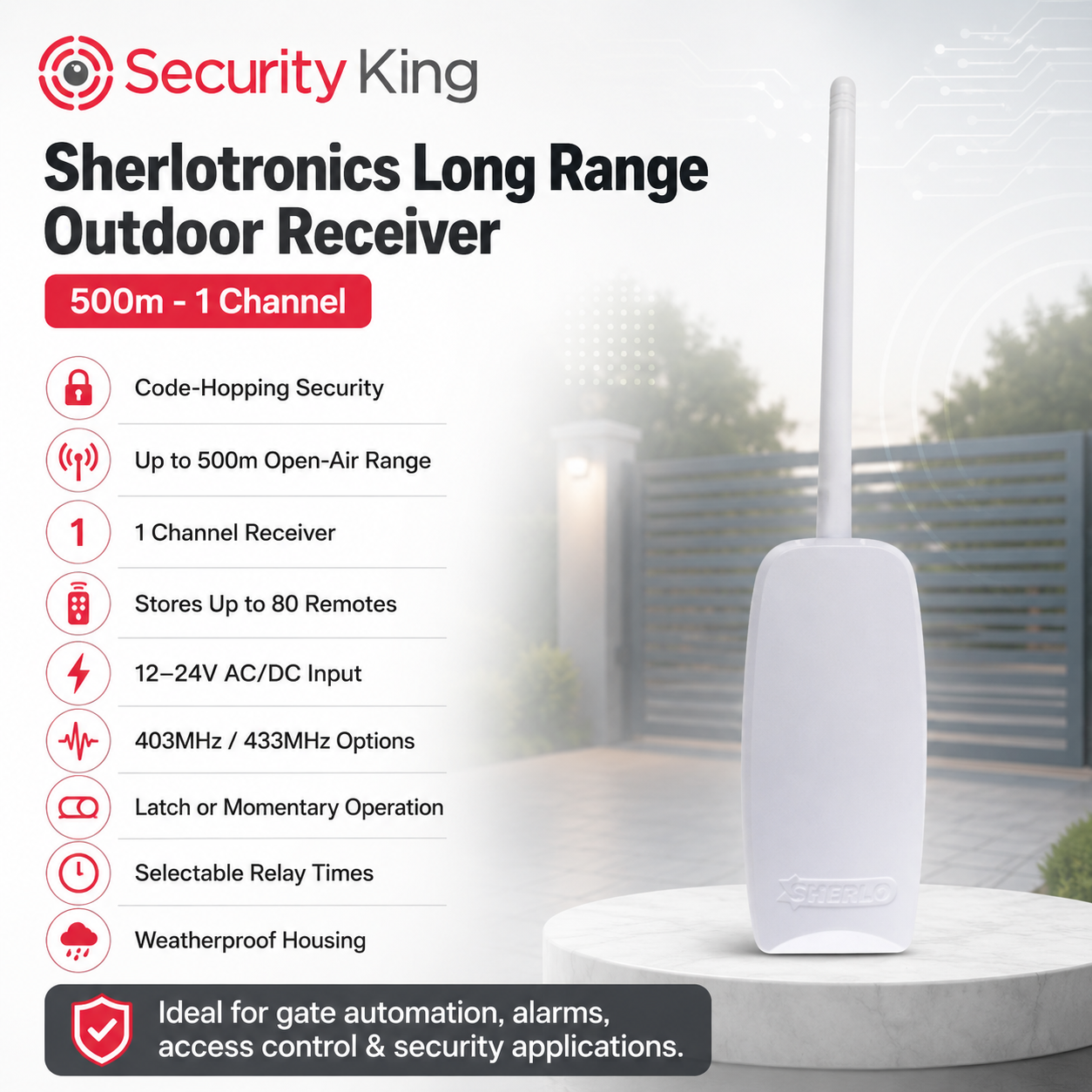

Sherlotronics Long Range Outdoor Receiver 500m - 1 Channel
The Sherlotronics Long Range Outdoor Receiver 500m - 1 Channel is a high-performance wireless receiver designed for secure long-range control of gates, garage doors, alarm systems, panic activations, lighting, generators, and access control systems. With a strong open-air range of up to 500 metres, it is ideal for larger properties, complexes, business premises, farms, and installations where extended wireless coverage is required.
This RX1-500 receiver uses secure code-hopping encryption, helping protect against code grabbing and unauthorised remote duplication. Each transmission uses a changing code, making it a dependable choice for security-sensitive access control and automation applications.
The receiver features a single relay output and supports flexible relay operation, including latch and momentary modes. Selectable timing options such as 1 second, 3 seconds, 1 minute, 3 minutes, and ON/OFF operation allow installers to configure the receiver according to the required application.
Built for practical outdoor use, the unit includes a weatherproof housing and operates on a wide 12–24V AC/DC input range, making it easy to integrate with many gate motors, alarm panels, access control systems, and automation devices. It also includes a buzzer tone for activation feedback and can store up to 80 remotes.
Key Features
-
1-channel long-range wireless receiver
-
Model: RX1-500
-
Secure code-hopping encryption
-
Up to 500m open-air wireless range
-
Stores up to 80 remotes
-
403MHz / 433MHz frequency options
-
12–24V AC/DC power input
-
Single relay output
-
Latch or momentary relay operation
-
Selectable relay times: 1 sec, 3 sec, 1 min, 3 min, and ON/OFF
-
Built-in buzzer tone
-
Crystal-controlled frequency stability
-
Weatherproof housing for outdoor installation
-
Compatible with Sherlotronics code-hopping transmitters
Ideal For
-
Gate automation
-
Garage door control
-
Alarm arming and disarming
-
Panic button activations
-
Security lighting control
-
Generator switching
-
Access control systems
-
Long-range residential, commercial, and perimeter security installations
Why Choose This Receiver?
The Sherlotronics Long Range Outdoor Receiver 500m - 1 Channel is an excellent choice for installations that require secure wireless control over longer distances. With code-hopping security, 500m open-air range, flexible relay timing, weatherproof housing, and support for up to 80 remotes, it provides a reliable solution for professional gate automation and security systems.
