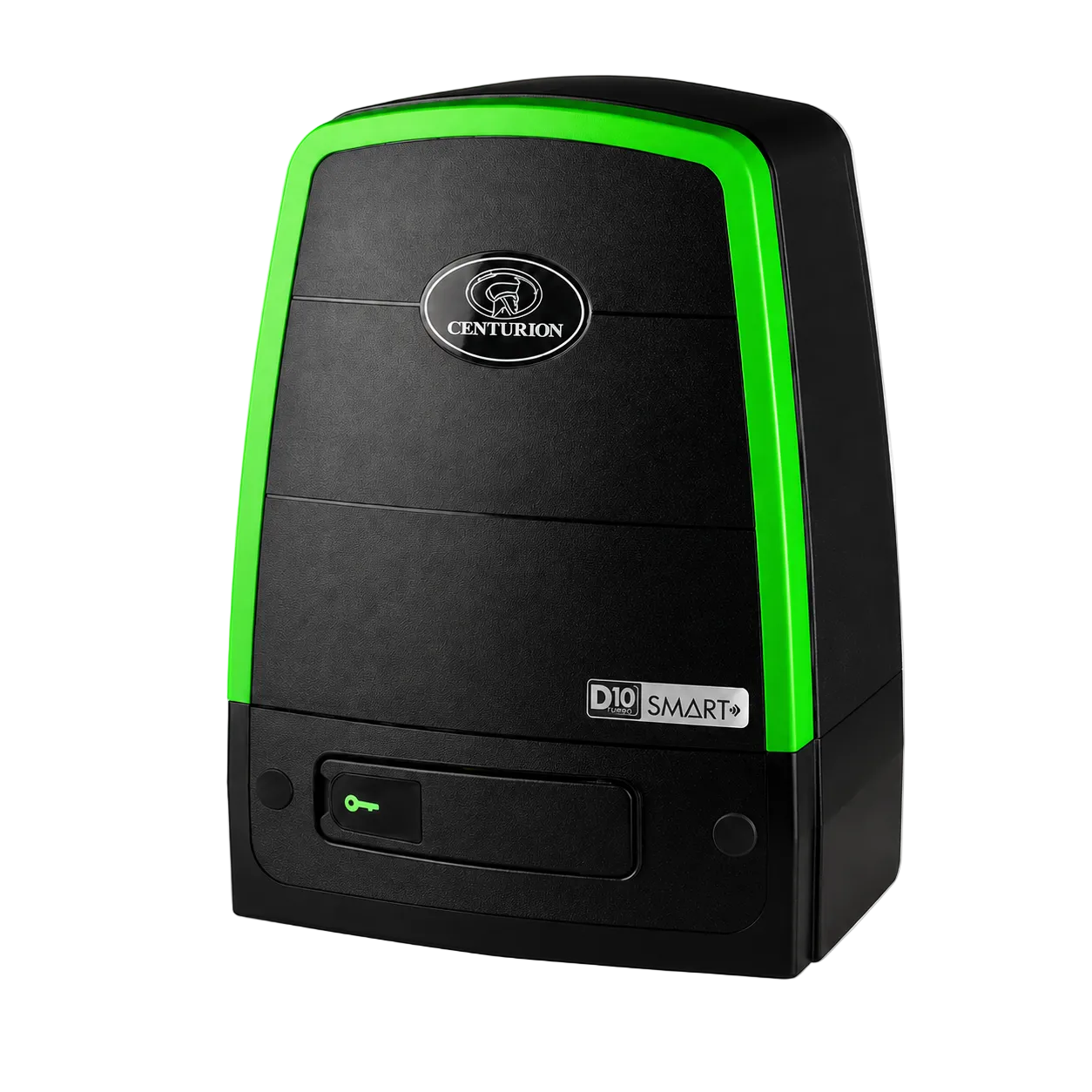

Centurion D10 Turbo SMART+ Gate Motor Only

D10 Turbo SMΔRT Sliding Gate Operator: The Ultimate High-Security Solution

Centurion D10 Turbo Plus Smart Motor (WiFi Enabled)

Always Connected, Always Communicating.

Redefining the Smart Series with added technological advancements which now includes WiFi enablement.

Control. Clarity. Confidence.

The D10 Turbo SMΔRT+ is the workhorse in the SMΔRT+ range, a heavy-duty, high-cycle sliding gate operator built for commercial and industrial sites where reliable, controlled access and consistent daily operations matter.

• Power and control where it matters: With gate speeds of up to 26m/min (varies with load), the D10 Turbo SMΔRT+ delivers strong drive power and smooth, controlled movement for efficient entry and exit flow at busy access points
• Built for high-volume sites: Capable of running up to 750 daily operations, the D10 Turbo SMΔRT+ is specifically suited for busy access points such as townhouse complexes, office parks, and similar high-cycle environments where access interruptions are not an option
• Higher battery capacity: The D10 Turbo SMΔRT+ offers a powerful 24V battery-driven system, helping to keep access moving when mains power is unavailable
• Further expanded accessories integration flexibility: Featuring six inputs/outputs - Four low-current, including two high-current input/outputs for devices with higher-draw specifications, such as the SMΔRT Siren and GLX900

FEATURES OF THE D10 TURBO SMART+ MOTOR:

• Speed and Safety: The D10 Turbo Smart motor moves even the heaviest of gates in a flash, protecting against tailgating and ensures safe entry and exit to and from the premises.
• Smart hardware: Easy access to mounting hardware, backward compatibility (drop-in replacement) on existing D10 and A10 base plates, optimized cable routing and a dedicated accessory tray for complimentary solutions such as GSM modules.
• Smart connectivity and control: Set the gate limits, auto close and unique profiles for everyone using the gate with the user-friendly smartphone app.
• Smart security: Built-in vibration sensor can be connected to a third-party device to notify you if the gate motor is being tampered with.
• Uninterrupted security and convenience: The D10 Turbo SMART motor comes with a dependable 24V battery backup system. (Batteries not included)
• Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless experience
• Easy Installation: Saving installers time and effort with its industry-leading design

Specifications:

• Brand: Centurion
• Model: D10 Turbo SMART
• Compatible remotes: Nova 1 Button, 2 Button and 4 Button (Not included)
• Compatible controller PCB: SmartX controller(Built-in)
• Compatible antitheft bracket: D10 SMART Bracket (Not included)
• Compatible safety beams: Photon SMART wireless beams (Not included)
• Compatible rack: Steel rack (Not included)
• Input voltage: 90V - 240V AC ± 10% @ 50Hz *1
• Current consumption (Mains): 250mA
• Battery charger current output: 1.8A @ 27.4V ± 1%
• Maximum number of operations per day: 750
• Duty cycle - Mains present: 25%
• Motor voltage: 24V DC
• Motor power supply: Battery-driven (Standard Capacity - 2 x 12V 7.2Ah)
• Current consumption (motor at rated load): 10A
• Motor push force – starting: 24Kgf

• Gate length – maximum: 50m
• Drive Pinion: 20T Module 4
• Collision Sensing: Electronic
• Operating temperature range: -15°C to +50°C
• Onboard receiver type: Code-hopping multichannel receiver with selective add and delete
• Receiver code storage capacity: 1500 Remote buttons
• Receiver frequency: 433.92Mhz
• Degree of protection: IP54
• Gate motor dimension: 295mm(l) x 205mm(w) x 390mm(h)

Instructions for use:

• Refer to detailed installer manual.

Warnings and limitations:

• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified

What's in the box:
1 x Centurion D10 SMART+ TURBO Operator
1 x Pair of keys
1x Fastener Kit
1 x Quick Guide manual

NB: Excludes Batteries, Baseplate & Remotes

Download Brochure Here

APP Download Here
