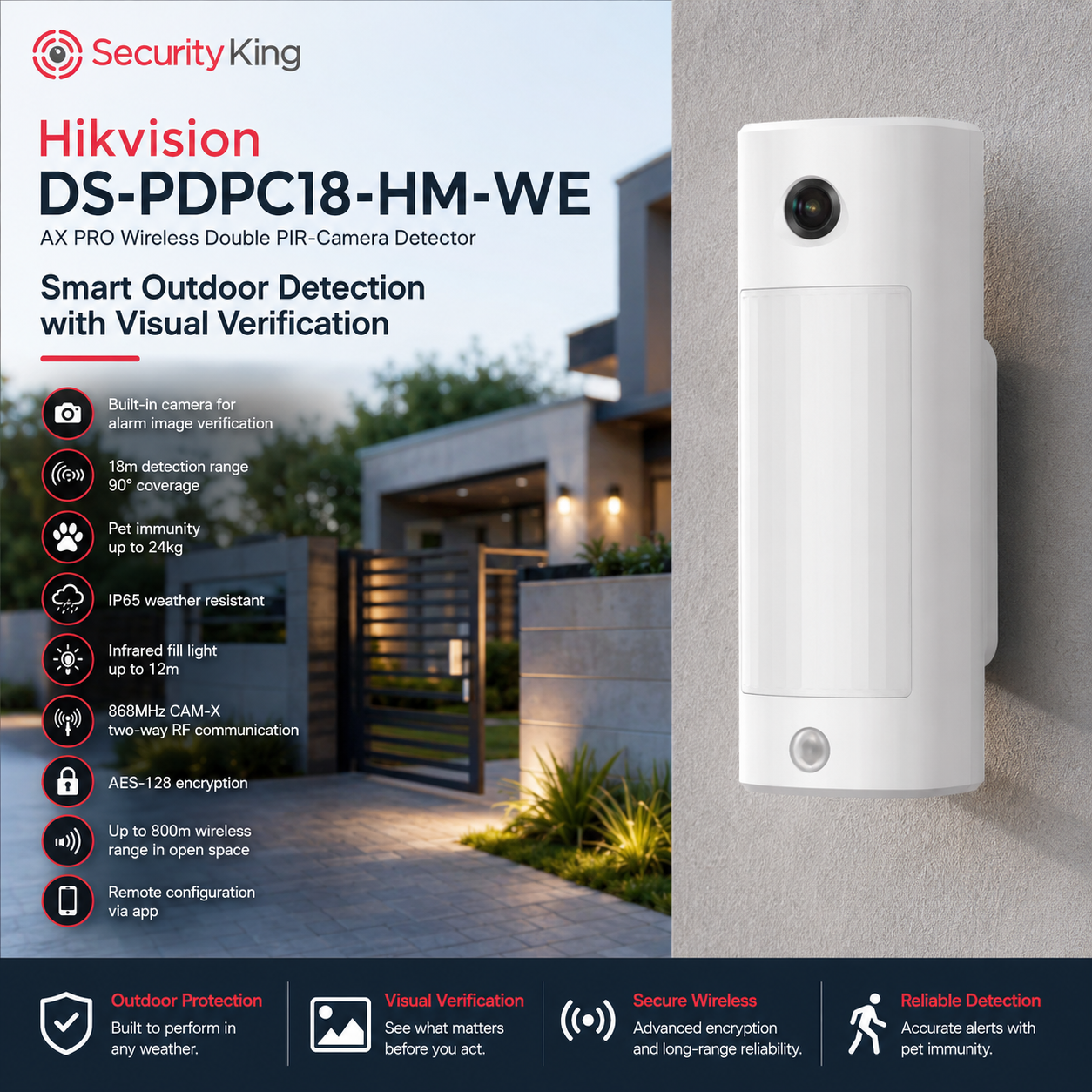

Hikvision DS-PDPC18-HM-WE AX PRO Wireless Double PIR-Camera Detector
The Hikvision DS-PDPC18-HM-WE is a high-performance wireless Double PIR-Camera detector designed for Hikvision AX PRO alarm systems. Built for outdoor security applications, it combines accurate passive infrared detection with built-in camera verification, allowing users to visually confirm alarm events quickly and respond with greater confidence.
With an impressive 18m detection range and 90° detection angle, the DS-PDPC18-HM-WE is ideal for protecting driveways, gardens, perimeters, entrances, yards, warehouses, and commercial outdoor areas. Its built-in camera captures verification images during alarm events, which can be transmitted to an ARC or viewed via compatible mobile apps.
Designed for reliable outdoor use, this detector features IP65 weather resistance, up to 24kg pet immunity, sealed optics, digital processing, and front and rear tamper protection. The polarizing IR lens design helps deliver more uniform night illumination for clearer night-time verification images.
Key Features
-
Wireless Double PIR-Camera detector for Hikvision AX PRO systems
-
Passive infrared detection with video verification
-
Built-in camera for alarm image verification
-
18m detection range with 90° coverage
-
118 detection zones
-
Pet immunity up to 24kg
-
IP65 weather-resistant outdoor design
-
Infrared fill light with up to 12m range
-
JPEG image capture: 640 × 480, 320 × 240, 160 × 120
-
113° horizontal and 60° vertical camera field angle
-
CAM-X two-way RF wireless communication
-
868MHz wireless frequency
-
AES-128 encrypted transmission
-
Wireless range up to 800m in open space
-
Fully remote configurable through app
-
Multiple enrolment methods: power-up, remote ID, and QR code
-
Front and rear tamper protection
-
Signal strength and environment temperature indicators
-
Battery powered using 4 × CR123A batteries
-
Battery life up to 3 years under normal conditions
-
Adjustable bracket included
Ideal For
-
Outdoor perimeter protection
-
Driveways and entrances
-
Gardens and yards
-
Warehouses and workshops
-
Commercial premises
-
Schools, clinics, and office parks
-
Sites requiring visual verification of alarm events
-
AX PRO wireless alarm installations
The Hikvision DS-PDPC18-HM-WE is a premium outdoor detector for users who need more than standard motion detection. By combining Double PIR detection, camera verification, encrypted wireless communication, pet immunity, and weather-resistant construction, it provides a smarter and more reliable way to protect outdoor spaces.
Hikvision’s datasheet lists the DS-PDPC18-HM-WE as a wireless Double PIR-Camera with video verification, 18m/90° detection, IP65 outdoor protection, up to 24kg pet immunity, and app configuration. It also specifies 868MHz CAM-X two-way RF communication, AES-128 encryption, up to 800m open-space transmission, infrared fill light up to 12m, and 4 × CR123A battery power.
