Wireless power relay to control 110/230 V~ power supply remotely

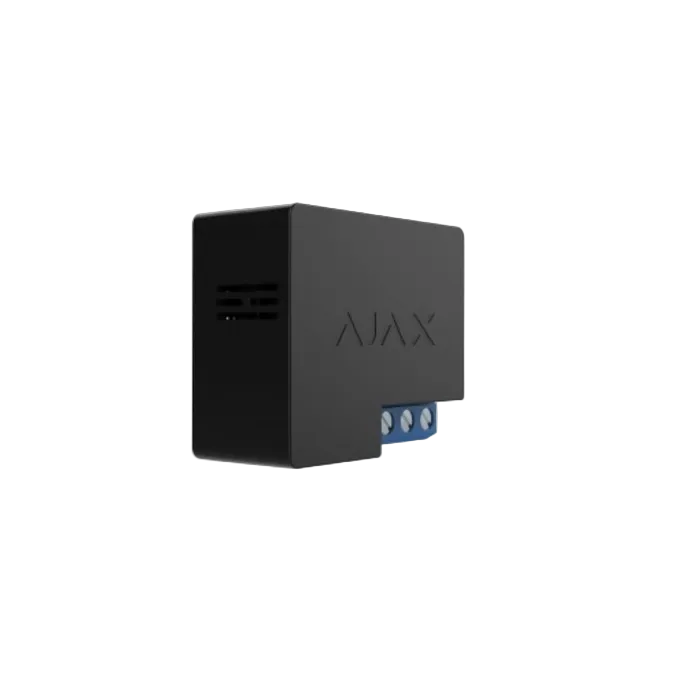

AJAX WallSwitch Jeweller Wireless Power Relay – Black
The AJAX WallSwitch Jeweller is a compact wireless power relay designed to remotely control the power supply of electrical appliances and connected circuits through the Ajax security system. Ideal for automation, safety, and energy management, it allows users to switch devices on or off via the Ajax app, automation scenarios, Button, or the device’s function button. The WallSwitch connects directly to a 110–230V power supply and supports loads of up to 3kW, making it suitable for controlling lighting, gates, heaters, pumps, selected sockets, and other compatible electrical equipment. Built-in energy monitoring displays voltage, current, power consumption, and electrical energy usage in the Ajax app, giving users greater visibility and control over connected devices. Using secure Jeweller wireless communication, the WallSwitch offers reliable two-way communication with Ajax hubs and range extenders, while built-in voltage, current, and temperature protection helps safeguard both the relay and connected equipment. Its compact design allows discreet indoor installation in suitable electrical enclosures, making it a smart and professional automation solution for modern Ajax security systems.
Key Features:
-
Wireless power relay for remote control of electrical circuits
-
Controls 110–230V power supply
-
Supports loads up to 3kW at 230V
-
Energy monitoring via Ajax app
-
Displays voltage, current, power consumption, and energy usage
-
Secure Jeweller wireless communication
-
Works with Ajax hubs and radio signal range extenders
-
Supports automation scenarios
-
Voltage, current, and temperature protection
-
Compact black design for discreet indoor installation
Please Note: Installation should be carried out by a qualified electrician or professional installer.
Specifications:
Classification: Radio channel relay unit
Device type: Remote-controlled
Installation method: Into wall plate
Compatibility: Operates with all Ajax hubs, range extenders
Actuating element: Relay
Relay service life: 200,000 switch-ons
Maximum load current: 13 A
Maximum current protection: Yes (13 A)
Maximum temperature protection: >65°C
