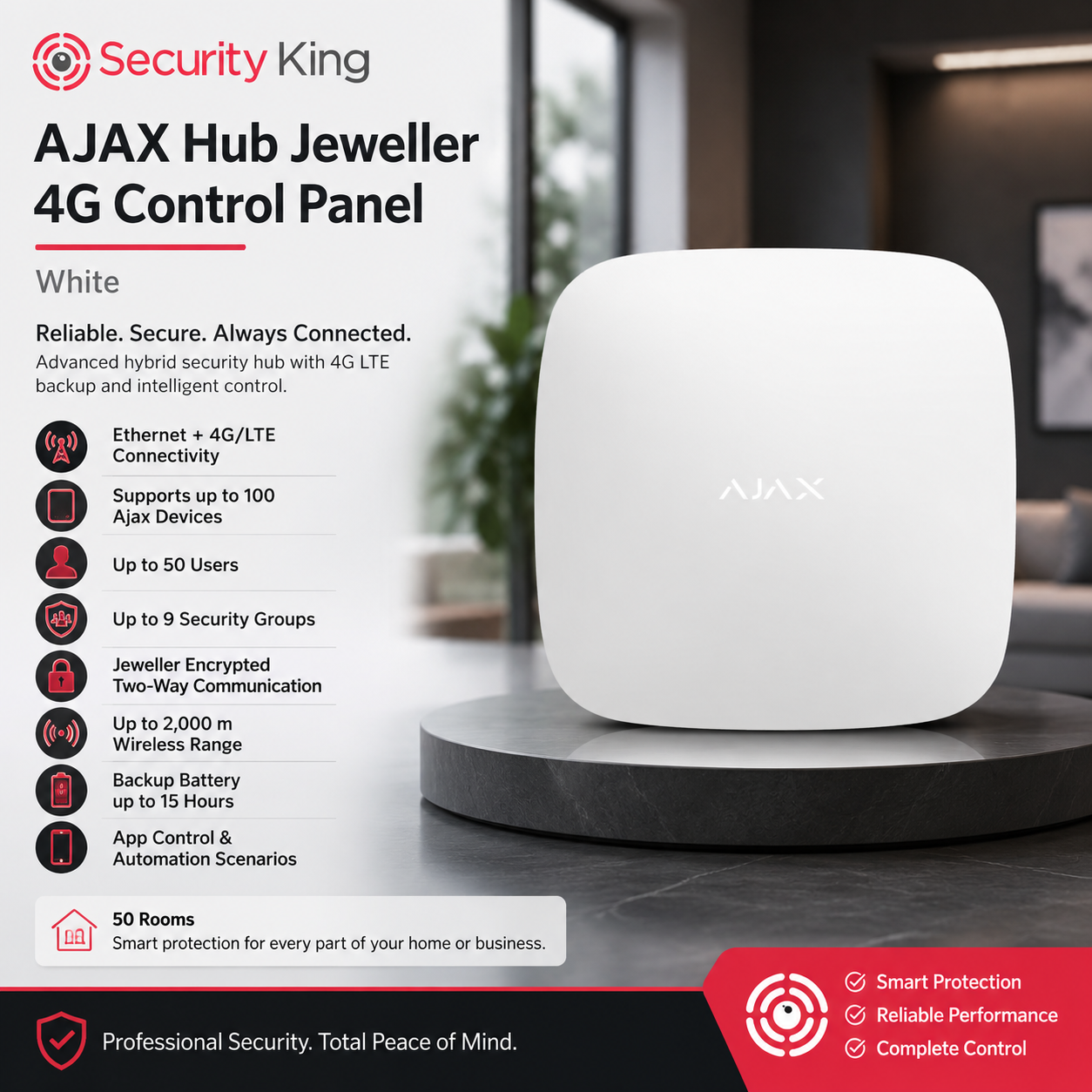

Ajax Hub 4G Jeweller Alarm Control Panel White – 1992210-259-WH1
The Ajax Hub 4G Jeweller 1992210-259-WH1 is a wireless alarm control panel designed to manage and coordinate an Ajax security system with reliable Ethernet and 4G/LTE communication. Finished in white, it provides a clean, modern central control unit for homes, apartments, offices, shops, and small to medium commercial premises.
The hub connects Ajax wireless detectors, sirens, keypads, remotes, and automation devices into one intelligent security system controlled through the Ajax mobile app. It uses secure Jeweller two-way encrypted radio communication to deliver alarms, events, and system status quickly and reliably between the hub and connected Ajax devices.
With support for up to 100 Ajax devices, up to 50 users, and up to 9 security groups, the Hub 4G Jeweller is ideal for professional wireless alarm installations that need dependable connectivity, instant notifications, remote management, and long-range wireless coverage. Its built-in backup battery keeps the system operational during power failures, while tamper protection and jamming detection help maintain system integrity.
Key Features
-
Ajax Hub 4G Jeweller wireless alarm control panel
-
Model / SKU: 1992210-259-WH1
-
White finish
-
Ethernet and 4G/LTE communication channels
-
Supports up to 100 Ajax devices
-
Supports up to 50 users
-
Supports up to 9 security groups
-
Jeweller encrypted two-way radio communication
-
Communication range up to 2,000m in open space
-
Instant alarm and event notifications via Ajax app
-
Supports automated scenarios
-
Tamper alarm and jamming detection
-
Built-in backup battery with up to 15 hours of operation
-
Remote setup and control via Ajax mobile app
-
Compatible with Ajax wireless devices and range extenders
-
Plug-and-play installation with SmartBracket mounting
-
Suitable for residential and small to medium commercial security systems
Ideal For
Perfect for homes, apartments, offices, shops, studios, and small business premises that need a reliable Ajax alarm hub with 4G/LTE connectivity, secure wireless communication, app-based control, and dependable backup operation during power outages.
Features:
Device Compatibility and Management
- Manage up to 100 Ajax devices
- Support for 10 sirens and 1 range extender
- Integration with Ajax NVRs: 14 devices, up to 224 cameras
- Support for up to 200 standalone cameras
- Third-party IP camera compatibility: up to 10 via RTSP, up to 224 via ONVIF
- Manage up to 50 users with individual access rights
- Create up to 9 security groups and 50 rooms
- PRO accounts for installers and monitoring companies
Automation and Security Reactions
- Schedule automated actions for alarms, security mode changes, and events
- Set up to 5 custom automation scenarios
- Instant alarm notifications to all users
- Note: does not support temperature, humidity, or CO2 -based scenarios
Wireless Communication Technology
- Proprietary Jeweller technology for two-way wireless communication
- Radio frequency bands: 866-869 MHz, 905-926.5 MHz, 915.85-926.5 MHz, 921-922 MHz (region-dependent)
- Communication range up to 2,000 meters in open space
- Advanced encryption with dynamic keys
- Anti-sabotage measures with radio frequency hopping
- Adjustable polling interval from 12 to 300 seconds
Connectivity and Network Options
- Ethernet port supporting up to 100 Mbps
- 4G LTE micro-SIM slot supporting GSM 850/900/1800/1900 MHz
- Automatic channel switching between Ethernet and cellular
- Parallel channel operation ensures system reliability
- Notifications via push, SMS, and event types (alarms, malfunctions, system events, non-security alerts)
Monitoring Support
- Compatible with SIA (DC-09 ), SurGard (Contact ID), ADEMCO 685, and other proprietary protocols
- Supports panic button coordinates and system alarms
Power Supply and Backup
- Main power: 110-240 V~, 50/60 Hz, up to 10 W consumption
- Built-in Li-ion 3 Ah battery provides up to 15 hours offline operation
- Alternative power: 6 V or 12-24 V (PSU sold separately)
Design and Installation
- Indoor installation, protection class IP20
- Dimensions: 163 x 163 x 36 mm | Weight: 360 g
- Operating temperature: -10degrees C to +40degreesC
- Operating humidity: up to 75%
- Available in black or white
- Complete set includes hub, SmartBracket mounting panel, power and Ethernet cables, installation kit, and quick start guide
