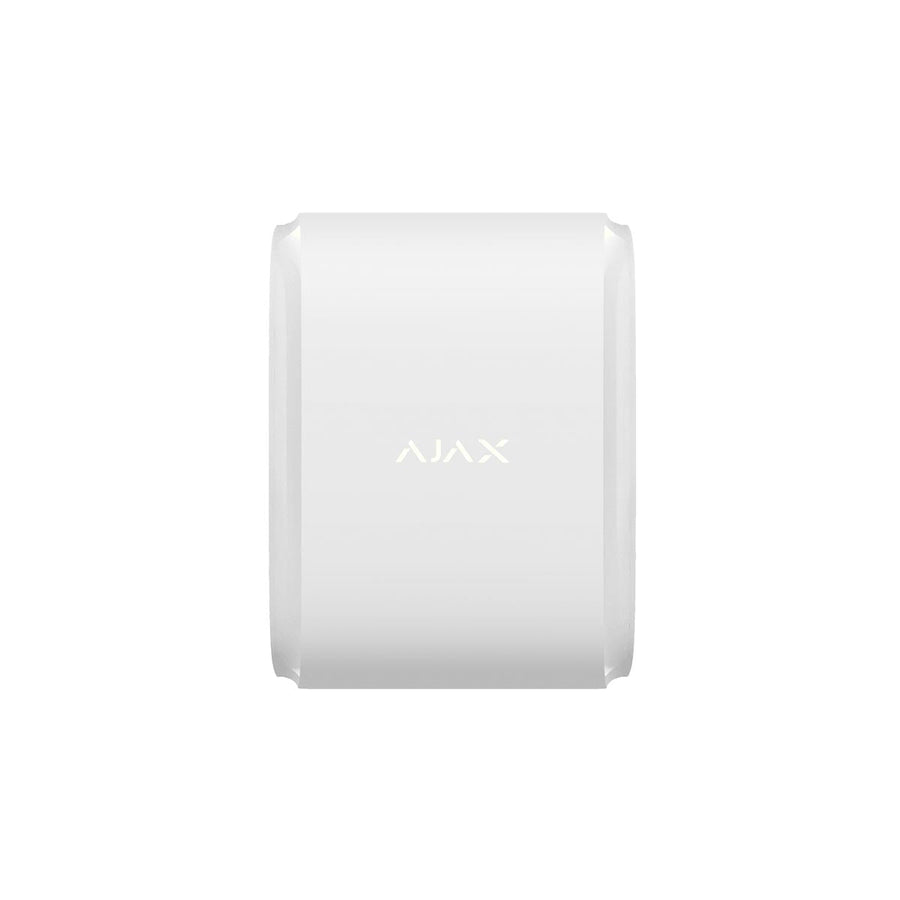

The Ajax 1939055-81-WH1 DualCurtain Outdoor Jeweller is a wireless bidirectional outdoor curtain motion detector designed for accurate perimeter protection around homes, offices, estates, warehouses, retail sites, and commercial premises. Finished in white, it provides discreet and professional outdoor intrusion detection for protecting windows, doors, gates, archways, passages, walls, and property boundaries.
DualCurtain Outdoor features two independent narrow-angle detection systems that monitor opposite directions from a single installation point. With an adjustable detection range of up to 30 metres total, it allows installers to create precise curtain-style protection along façades, fences, entrances, and narrow outdoor zones without obstructing normal movement inside the protected area.
Using dual PIR sensors, microwave-assisted verification, and Ajax intelligent signal analysis, the detector helps reduce false alarms caused by pets, plants, thermal interference, and outdoor environmental movement. It also includes anti-masking protection, tamper detection, Jeweller two-way encrypted radio communication, and app-based configuration for professional Ajax wireless alarm installations.
Two independent optical systems for opposite-direction detection
Adjustable detection range up to 30 metres total
Narrow horizontal detection angle for curtain-style protection
Suitable for windows, doors, gates, archways, passages, walls, and fences
Dual PIR motion detection with microwave-assisted verification
Intelligent false alarm filtering for pets, plants, and outdoor interference
Anti-masking protection against detector obstruction
Tamper protection against opening or removal
Jeweller two-way encrypted radio communication
Long-range wireless communication with compatible Ajax hubs
Battery-powered operation
Battery life up to 4 years, depending on settings and usage
Remote setup and configuration via Ajax mobile app
Weather-resistant outdoor design
Compatible with Ajax hubs and range extenders
Ideal For
Perfect for homes, estates, warehouses, offices, shops, farms, parking areas, and commercial sites that require accurate perimeter detection, outdoor false alarm resistance, anti-masking protection, and reliable Ajax wireless alarm integration.
INSTALLATION AND SET-UP
The Ajax DualCurtain Outdoor comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. The Ajax Dual Curtain connects to the security system via the Ajax app, simply scan the QR code, add the detector to the room, and proceed to installation.
