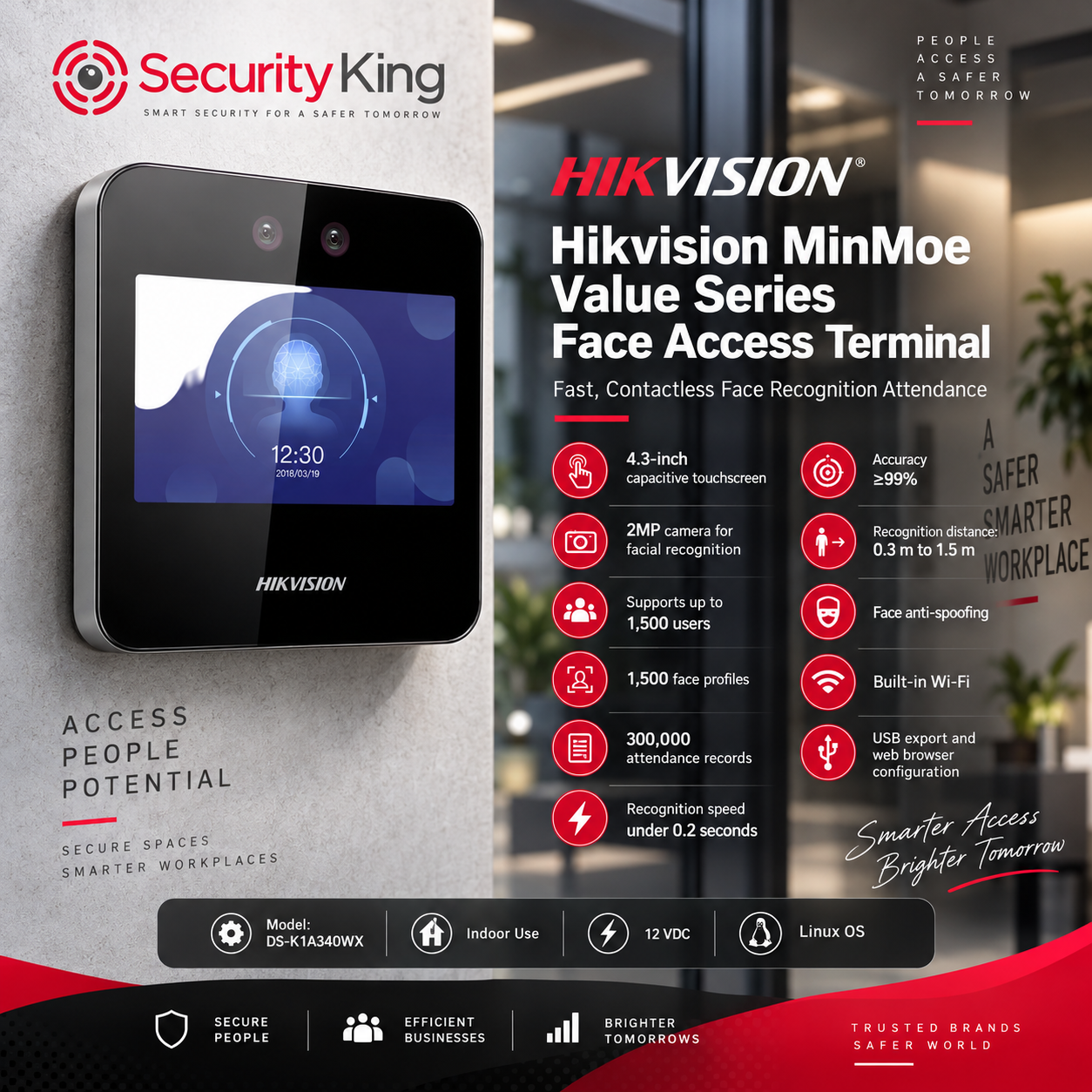

Hikvision MinMoe Value Series Face Access Terminal

The Hikvision DS-K1A340WX is a compact face recognition time attendance terminal designed for offices, businesses, financial buildings and other professional environments requiring fast, contactless attendance management. It combines a 4.3-inch touchscreen, 2MP camera, built-in Wi-Fi connectivity and Hikvision’s deep-learning facial recognition technology in a slim indoor unit.

The terminal provides facial recognition in less than 0.2 seconds per user with a stated recognition accuracy of 99% or higher, while supporting a recognition distance of approximately 0.3 m to 1.5 m. Face anti-spoofing technology is included to help improve authentication reliability.

Key Features

• 4.3-inch capacitive touchscreen
• 2MP camera for facial recognition
• Supports up to 1,500 users
• Stores up to 1,500 face profiles
• Stores up to 300,000 attendance records
• Facial recognition speed of less than 0.2 seconds per user
• Recognition accuracy rated at ≥99%
• Recognition distance: 0.3 m to 1.5 m
• Face anti-spoofing functionality
• Built-in Wi-Fi
• Local time-attendance management
• Remote configuration via web browser
• Supports ISAPI and ISUP 5.0
• USB interface for exporting registered face images and attendance events
• Deep-learning facial recognition algorithm

Product Specifications

Model: DS-K1A340WX
Product Type: Face Recognition Time Attendance Terminal
Operating System: Linux
Display: 4.3-inch touchscreen
Display Resolution: 480 × 272
Camera: 2MP
User Capacity: 1,500
Face Capacity: 1,500
Attendance Record Capacity: 300,000
Wi-Fi: Supported
USB: 1 × USB interface
Power Supply: 12 VDC
Operating Temperature: -10°C to 40°C
Dimensions: 118.4 × 118.4 × 21.8 mm
Application Environment: Indoor

The DS-K1A340WX is well suited to businesses looking for a fast, contactless and easy-to-manage facial attendance solution, with Wi-Fi connectivity and high-capacity attendance record storage in a compact Hikvision terminal.
