Hikvision Fingerprint Access Control Terminal Kit

The Hikvision Access Control is a complete single-door biometric access control kit designed for offices, commercial buildings, warehouses and other controlled-entry environments. The system combines fingerprint, M1 card and PIN authentication with a magnetic lock, mounting bracket and touchless exit button, providing the essential components required for a professional door access installation.

The access terminal features a 2.4-inch LCD display, supports up to 5,000 fingerprints, 5,000 cards and 150,000 event records, and provides fingerprint recognition in under one second. Connectivity options include wired Ethernet, 2.4 GHz Wi-Fi, Bluetooth and PoE, while RS-485 and Wiegand interfaces provide additional integration flexibility.

Key Features

• Fingerprint, M1 card and PIN authentication
• 2.4-inch LCD screen with 320 × 240 resolution
• Stores up to 5,000 fingerprints
• Stores up to 5,000 cards
• Records up to 150,000 access events
• Fingerprint recognition time of less than 1 second
• Supports wired Ethernet and 2.4 GHz Wi-Fi
• Built-in Bluetooth
• Supports PoE or 12 VDC power
• IP65-rated access terminal for dust and water resistance
• Supports ISAPI and ISUP 5.0
• Web client configuration
• RS-485 and Wiegand interfaces
• Magnetic lock with up to 272 kg / 600 lb holding force
• Stainless-steel touchless exit button with LED status indication
• Suitable for wooden, glass and metal door applications

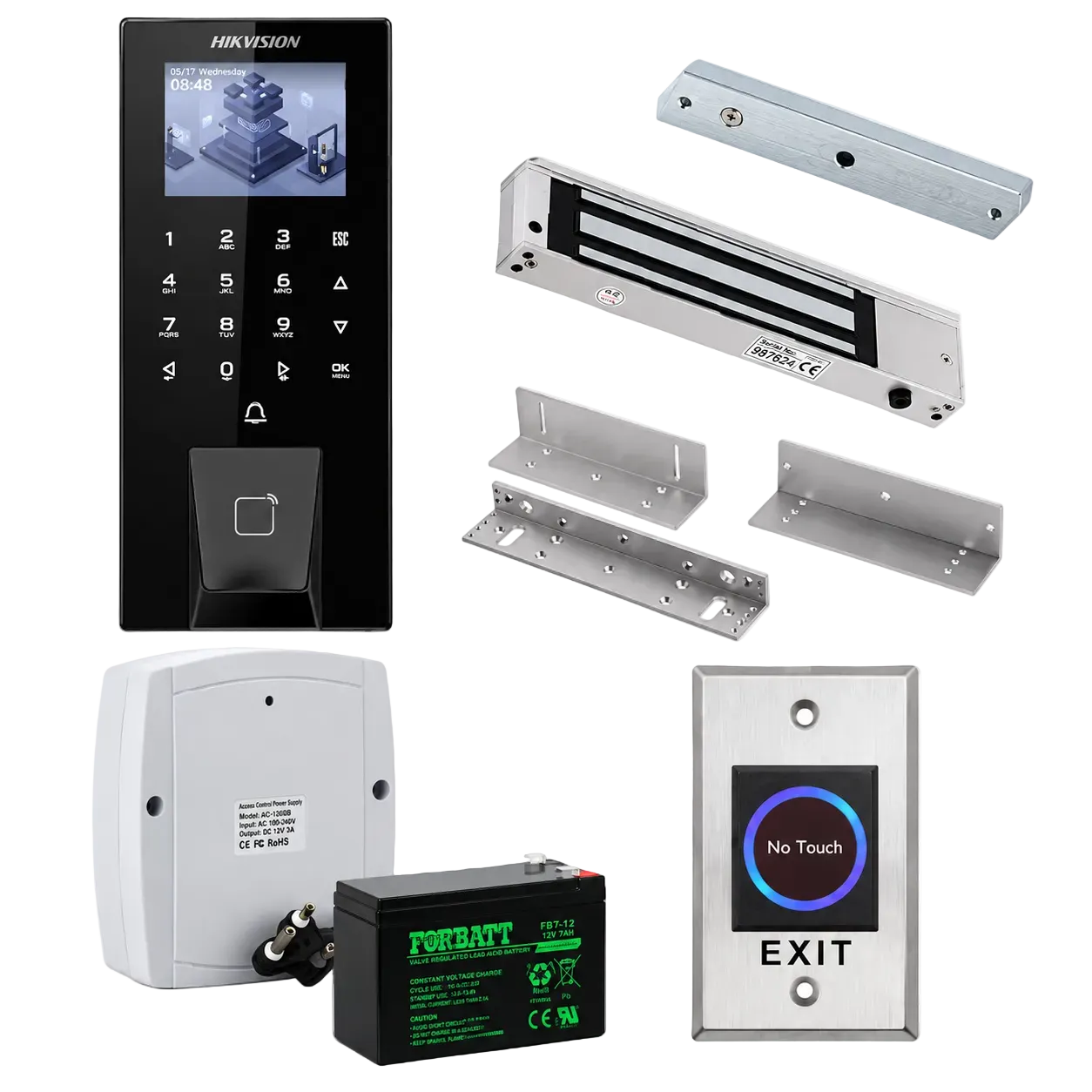

Kit Contents

1 x Hikvision Fingerprint Access Control
1 x Sherlo 3.2 amp Backup Power Including Battery

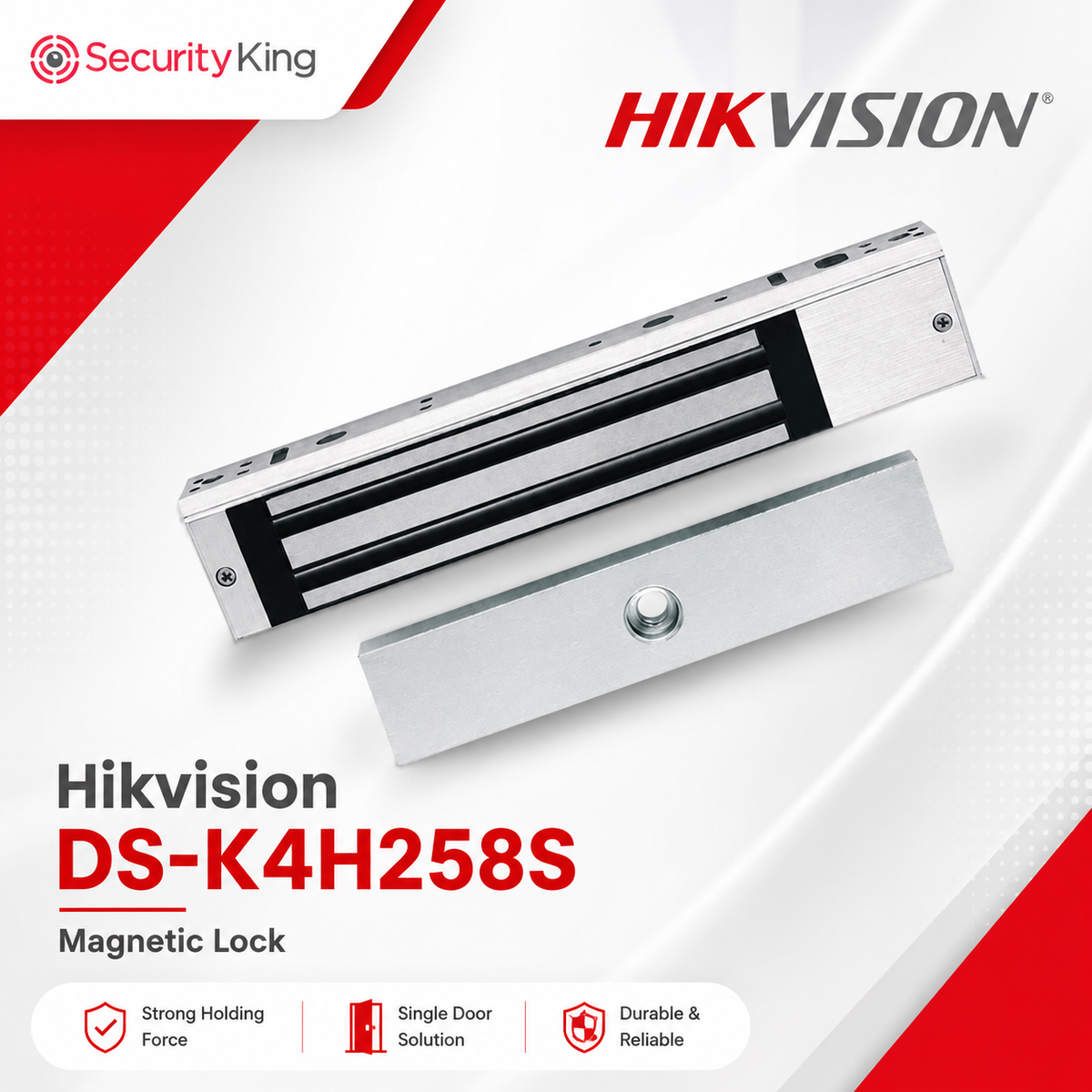

1 x Hikvision MagLock 280kg

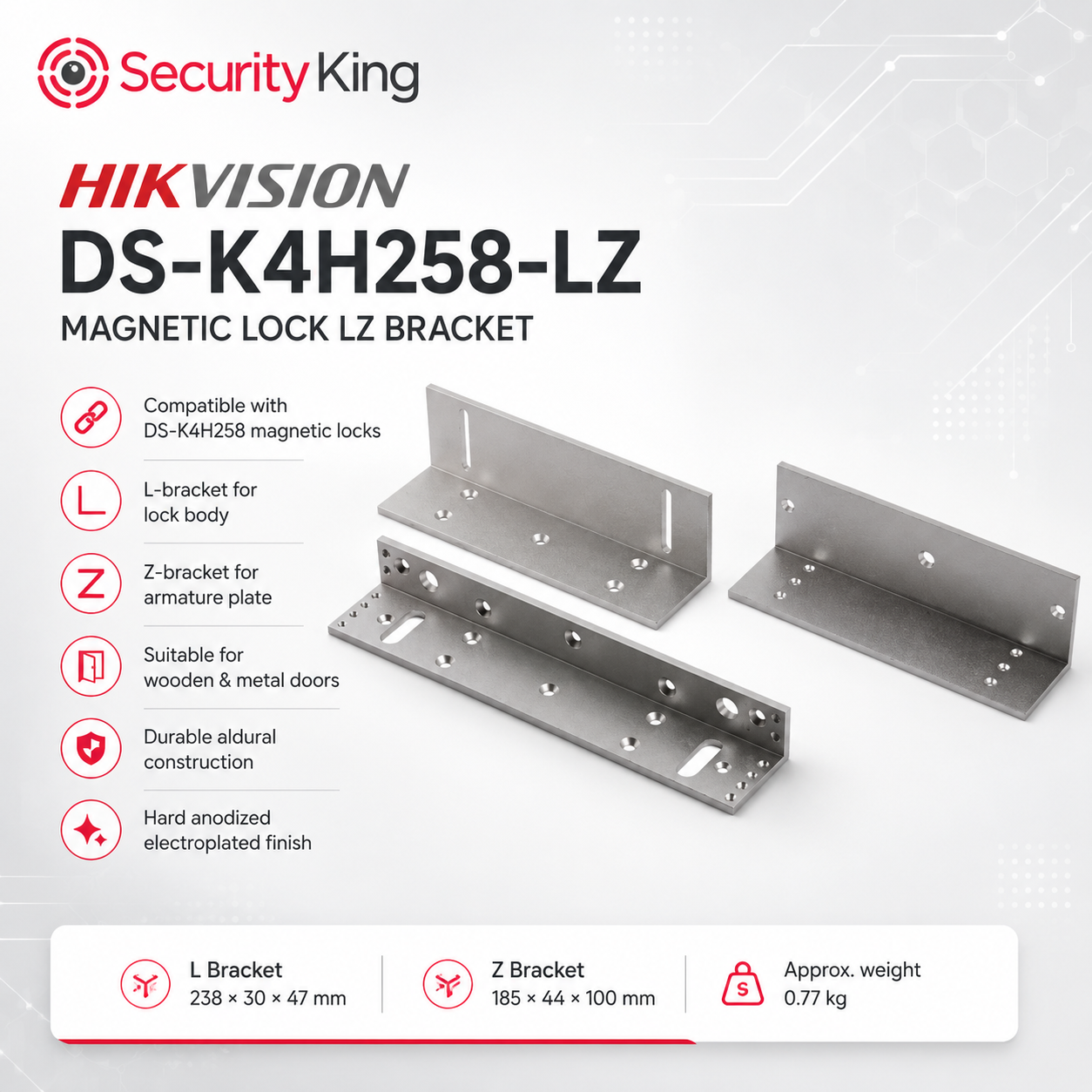

1 x Hikvision MagLock Bracket 280kg
1 x Hikvision No Touch Exit Button
