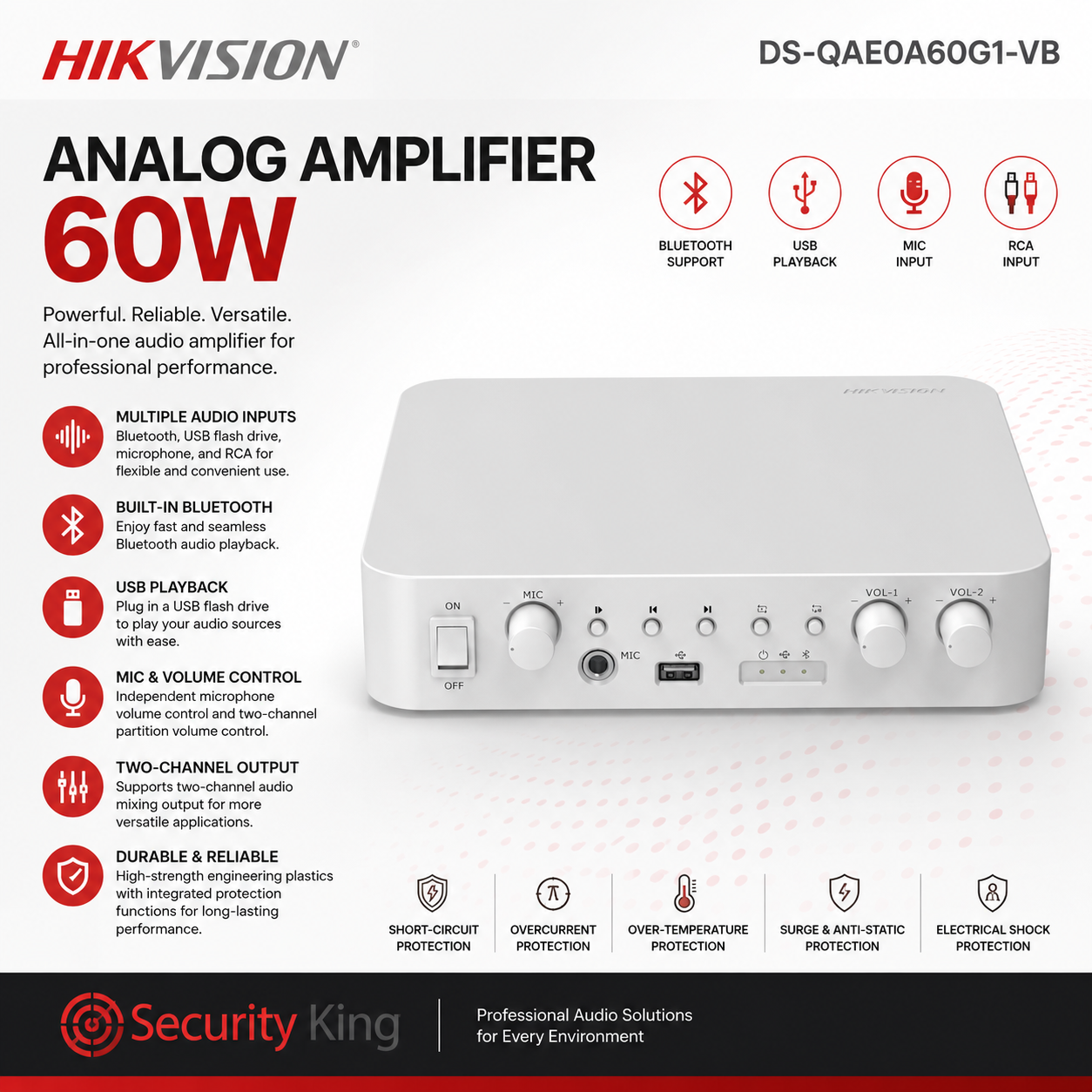

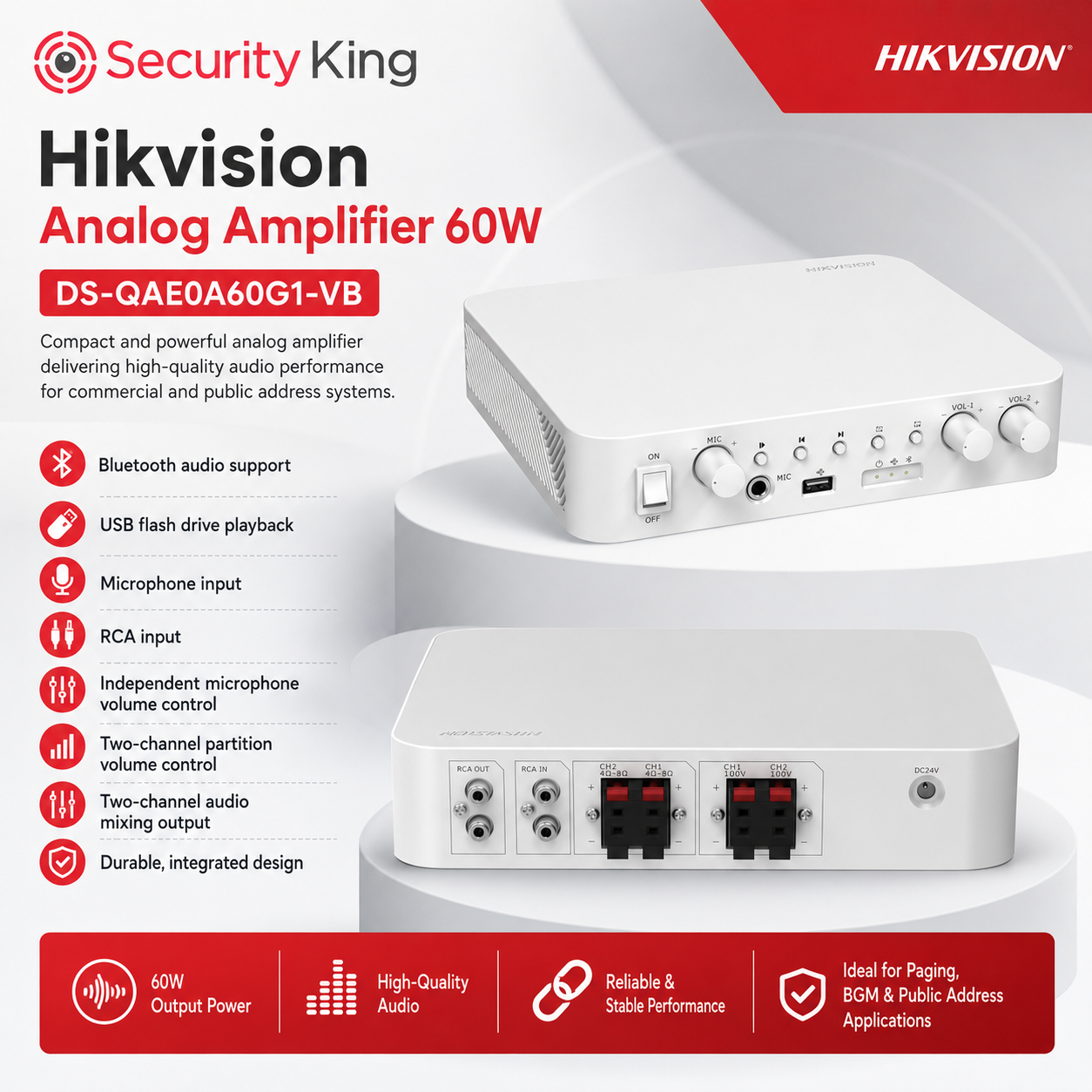

The Hikvision DS-QAE0A60G1-VB is a 60W analog amplifier designed for professional public address, paging, announcements, and background music applications. Compact, reliable, and easy to operate, it is ideal for offices, retail stores, schools, reception areas, warehouses, restaurants, shopping spaces, and commercial security installations.
This amplifier supports multiple audio input options, including Bluetooth, USB flash drive, microphone, and RCA input, giving users flexible control over different audio sources. The built-in Bluetooth module allows quick wireless playback, while the USB input supports convenient audio playback from a flash drive.
The DS-QAE0A60G1-VB is designed for practical multi-area audio control, with independent microphone volume control and two-channel partition volume control. It also supports two-channel audio mixing output, making it suitable for installations where different speaker zones or audio areas need to be managed efficiently.
Built from high-strength engineering plastic, the unit offers a durable and professional design for long-term use. It also includes multiple protection functions such as short-circuit protection, overcurrent protection, over-temperature protection, anti-static protection, surge protection, and electrical shock protection, helping ensure safe and dependable operation.
Key Features
Hikvision 60W analog amplifier
Model: DS-QAE0A60G1-VB
Rated power: 60W
Power supply: 24V DC
Supports Bluetooth audio input
Supports USB flash drive playback
Supports microphone input
Supports RCA audio input
Built-in Bluetooth module for fast wireless playback
Independent microphone volume control
Two-channel partition volume control
Supports two-channel audio mixing output
Frequency response: USB / Bluetooth: 20Hz to 20kHz
Frequency response: MIC / RCA input: 20Hz to 8kHz
THD: ≤1%
SNR: ≥100dB
Short-circuit protection
Overcurrent protection
Over-temperature protection
Surge and anti-static protection
High-strength engineering plastic housing
Compact and professional design
Suitable for public address and commercial audio systems
Ideal For
Perfect for shops, offices, schools, restaurants, warehouses, reception areas, commercial buildings, and public address systems where reliable amplification, multiple audio inputs, and easy zone volume control are required.
