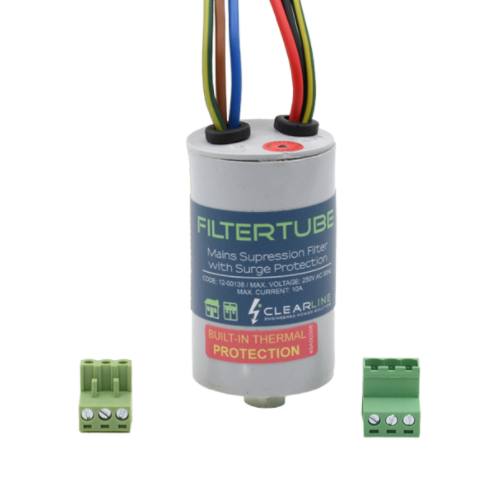

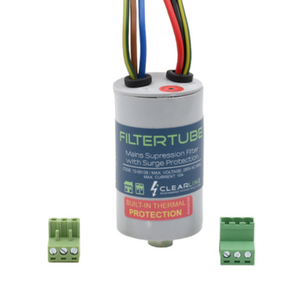

Centurion Surge and Lightning Filtertube

R 449.00 R 599.00

The Surge mains suppression filter with surge protection is ideal for Centurion gate motors and intercom systems. The suppression filter protects and isolates the incoming power source. When power is restored after load shedding or general power failures it causes a spike in voltage and may result in irreparable damage to the power supplies and motor controllers (PCB's). The suppression filter reduces the risk of damage to the electrical components of the gate motor and intercom systems.

Applications:
• Centurion D2 Turbo
• Centurion D5 Evo
• Centurion D5 Smart
• Centurion D10 Standard
• Centurion D10 Turbo

Features:

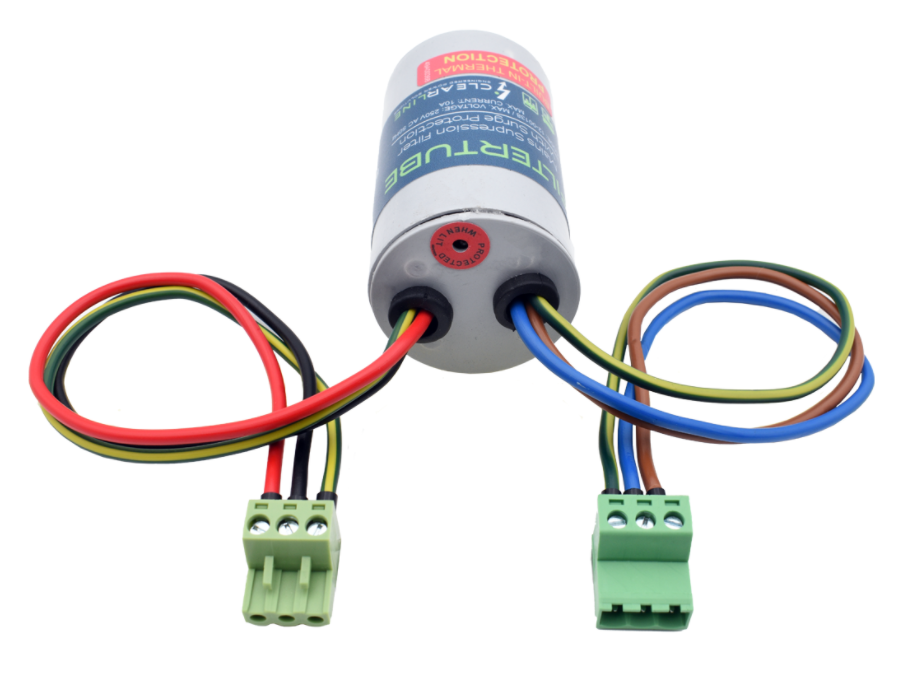

• Easy to install with pre fitted plugs
• Reliable protection against lightning strikes, voltage spikes and incoming voltage fluctuations

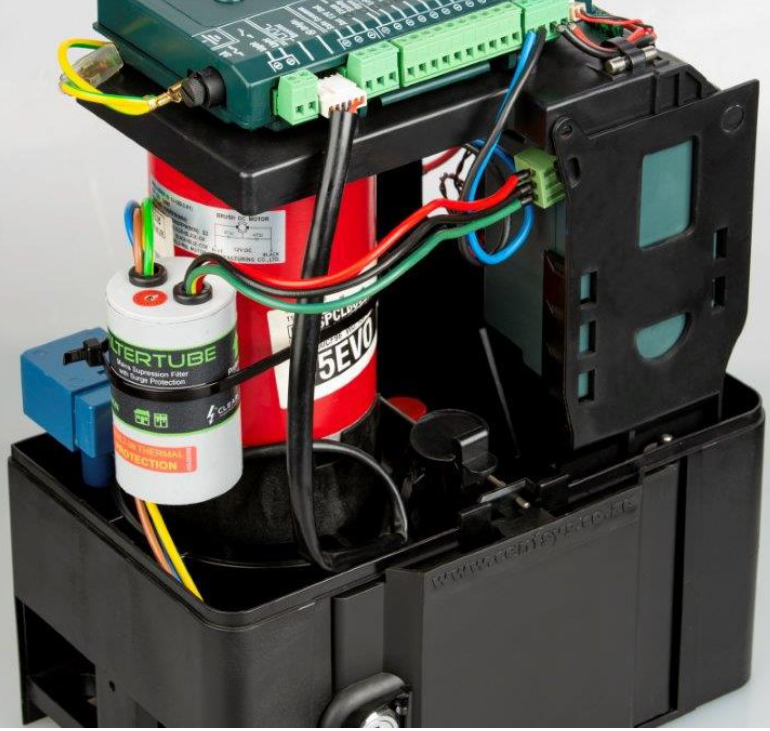

• Seamless integration with Centurion gate motors
• Internal temperature fuse that will disconnect the device in the event of an overload or fault.
• Safe energy suppression solution
• Built in surge suppression
• High surge capability
• Compact design
• Effective filtration
• Fire hazard protection

Specifications:
• Nom. input voltage: 230V AC 50Hz
• Max Continuous Voltage: 275V 50Hz
• Max Current: 10A
• Protection: Built in thermal protection
• Standards Compliance: IEC61643-1
• Product dimensions: 45mm(l) 85mm(h) x 45mm(w)

Warnings and limitations:
• Installation must be done by a suitable qualified technician
• Under no circumstances may any of the components be modified

What's in the box
1 x Clearline suppression filter
